RFID System
Operation Manual
Section 2 Wiring
Section 2
Installation and Wiring
■
Inserting and Removing the Connector

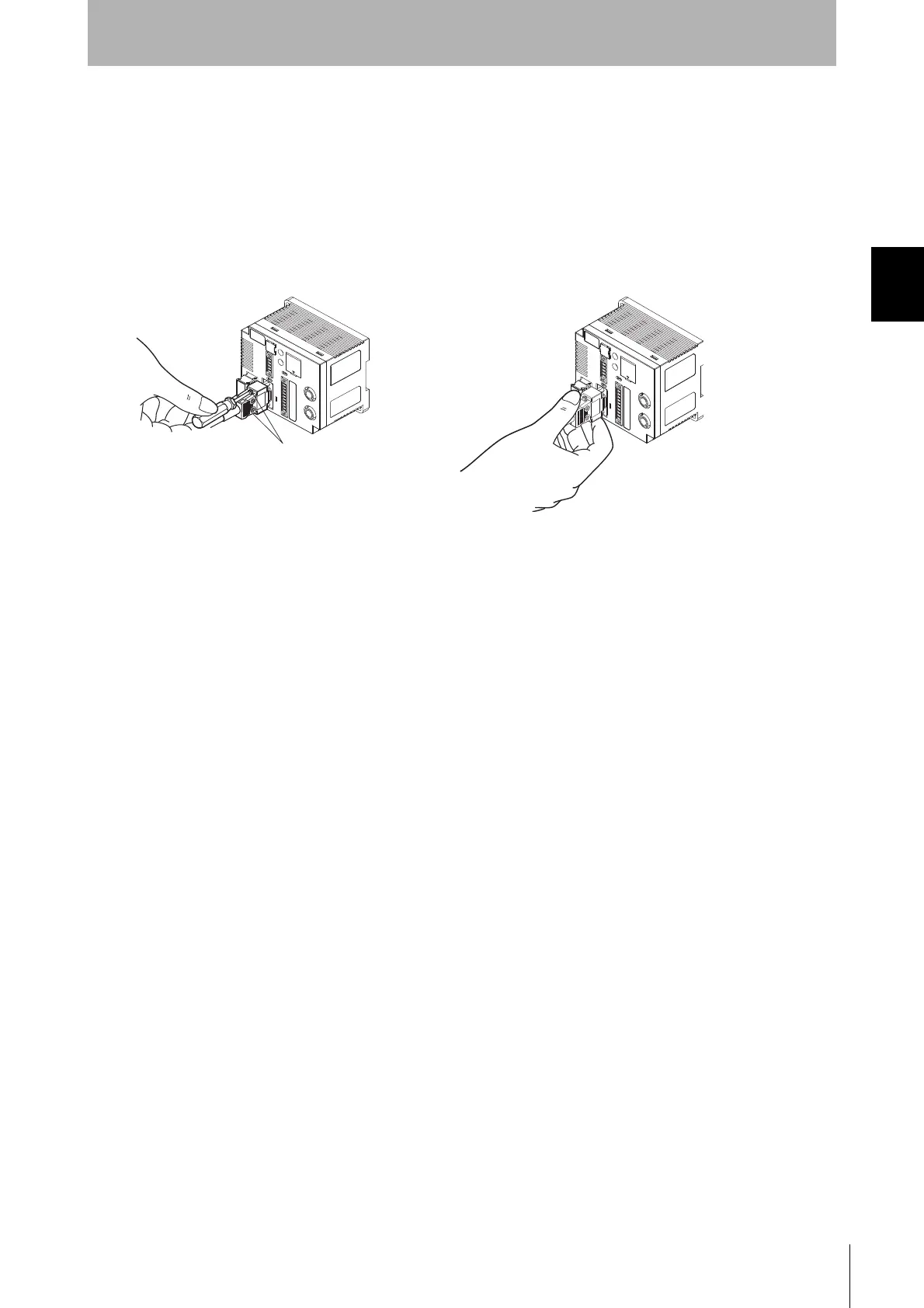

• It is extremely important to hold the connector to attach and insert it properly.
After inserting the connector, use a Phillips screwdriver and fully tighten the two lock screws.
Recommended tightening torque: 0.3 Nm.
• To remove the connector, loosen the two lock screws completely, hold onto the protruding portion of
the connector hood, and pull the connector straight out and off. If the connector is difficult to remove,
hold the ID Controller and pull the connector off.
