32
Section 2 Wiring
RFID System
Operation Manual
Section 2
Installation and Wiring

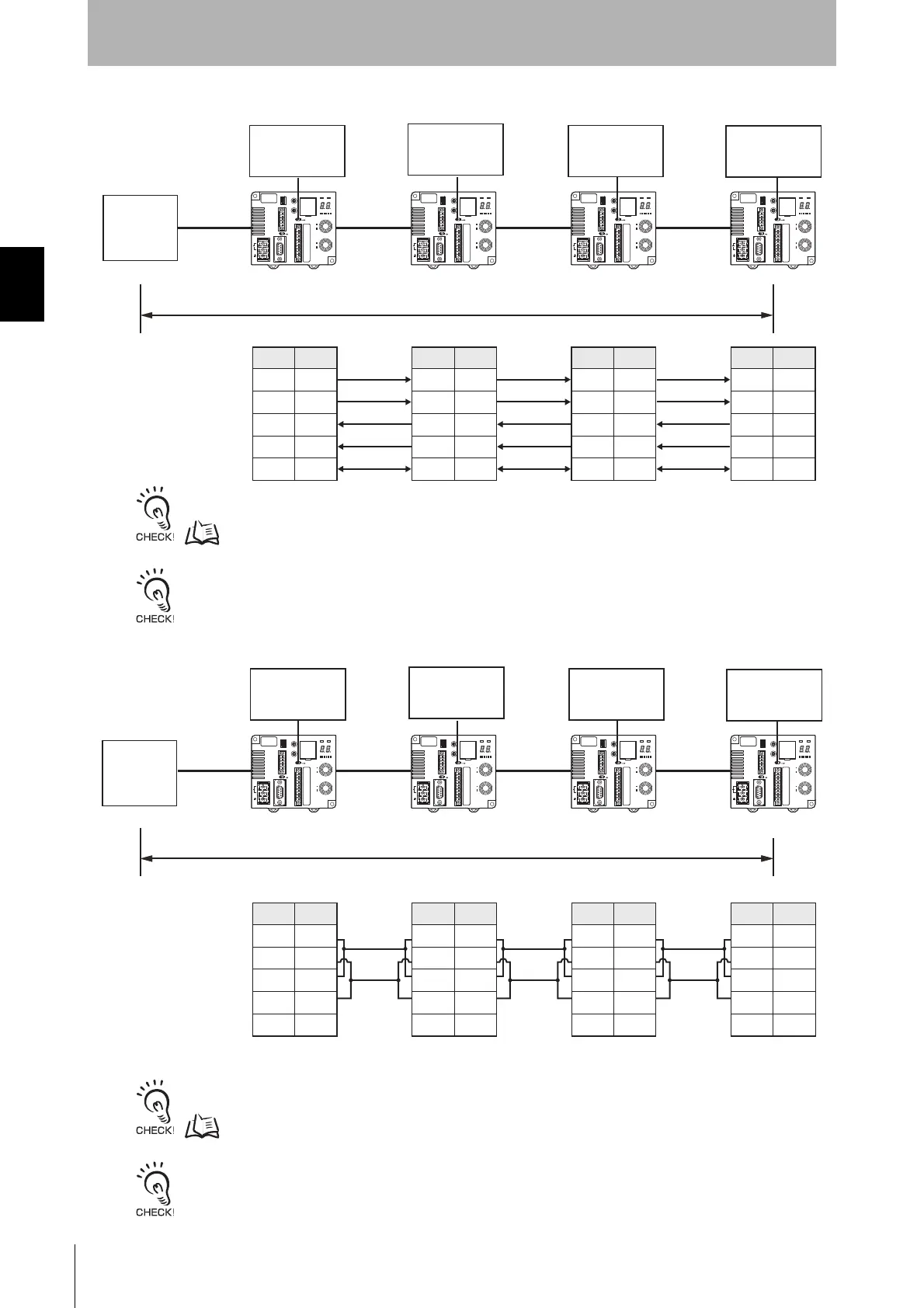

RS-422 Host Device Connection
For the RS-422 connection between the host device and ID Controller, refer to RS-422 Connections.
p.30
If RS-232C communications are used first by the ID Controller, receiving RS-422/RS-485 communications will be pro-
hibited. If RS-422/RS-485 communications are used first by the ID Controller, receiving RS-232C communications will
be prohibited. It is thus necessary to turn OFF the power supply before changing the ID Controller system configuration.
RS-485 Host Device Connection
Note: Using RS-485 is possible by shorting pins 1 and 3 and pins 2 and 4, and changing the setting to RS-485.
For the RS-485 connection between the host device and ID Controller, refer to RS-485 Connections.
p.30
If RS-232C communications are used first by the ID Controller, receiving RS-422/RS-485 communications will be pro-
hibited. If RS-422/RS-485 communications are used first by the ID Controller, receiving RS-232C communications will
be prohibited. It is thus necessary to turn OFF the power supply before changing the ID Controller system configuration.
ID ControllerID Controller
RS-422
ID Controller
RS-422
ID Controller
RS-422
1RDA()
2 RDB(+)
3SDA()
4 SDB(+)
5SG
1RDA()
2 RDB(+)
3SDA()
4 SDB(+)
5SG
1RDA()
2 RDB(+)
3SDA()
4 SDB(+)
5SG
1RDA()
2 RDB(+)
3SDA()
4 SDB(+)
5SG
RS-422
Maximum total length: 500 m
SW6: ON
Terminating
resistance connected.
SW6: OFF
Terminating resistance
not connected.
SW6: OFF
Terminating resistance
not connected.
SW6: OFF
Terminating resistance
not connected.
Pin No.
Abbreviation
Host device
Terminating
resistance
connected.
Pin No.
Abbreviation
Pin No.
Abbreviation
Pin No.
Abbreviation
ID ControllerID Controller
RS-485
ID Controller
RS-485
ID Controller
RS-485
1RDA()
2 RDB(+)
3SDA()
4 SDB(+)
5SG
1RDA()
2 RDB(+)
3SDA()
4 SDB(+)
5SG
1RDA()
2 RDB(+)
3SDA()
4 SDB(+)
5SG
1RDA()
2 RDB(+)
3SDA()
4 SDB(+)
5SG
RS-485
Maximum total length: 500 m
SW6: ON
Terminating
resistance connected.
SW6: OFF
Terminating resistance
not connected.
SW6: OFF
Terminating resistance
not connected.
SW6: OFF
Terminating resistance
not connected.
Pin No.
Abbreviation
Host device
Terminating
resistance
connected.
Pin No.
Abbreviation
Pin No.
Abbreviation
Pin No.
Abbreviation
