Section 3 Switch Settings
RFID System
Operation Manual
Section 3
Preparing Communications
Operating Modes
The ID Controller has two modes: RUN mode and MAINTENANCE mode.
■ RUN mode
In RUN mode, operation is performed according to commands from the host device and results are
returned to the host device as responses.
■ MAINTENANCE Mode
In MAINTENANCE mode, communications test with Data Carriers are performed offline.
Communications with Data Carriers are repeated every 0.5 s. The COMM1/COMM2 indicator will flash
during communications with a Data Carrier. When processing has been completed, the results will be
displayed on the monitor display using end codes.
Both read tests and write tests can be performed in MAINTENANCE mode. In the read test, one byte
of data is read repeatedly. In the write test, one byte of data is written repeatedly. The contents of the
Data Carrier is not changed during a write test. Use these tests to check operation when installing a
system.
Do not change the Data Carrier when executing tests in MAINTENANCE mode.

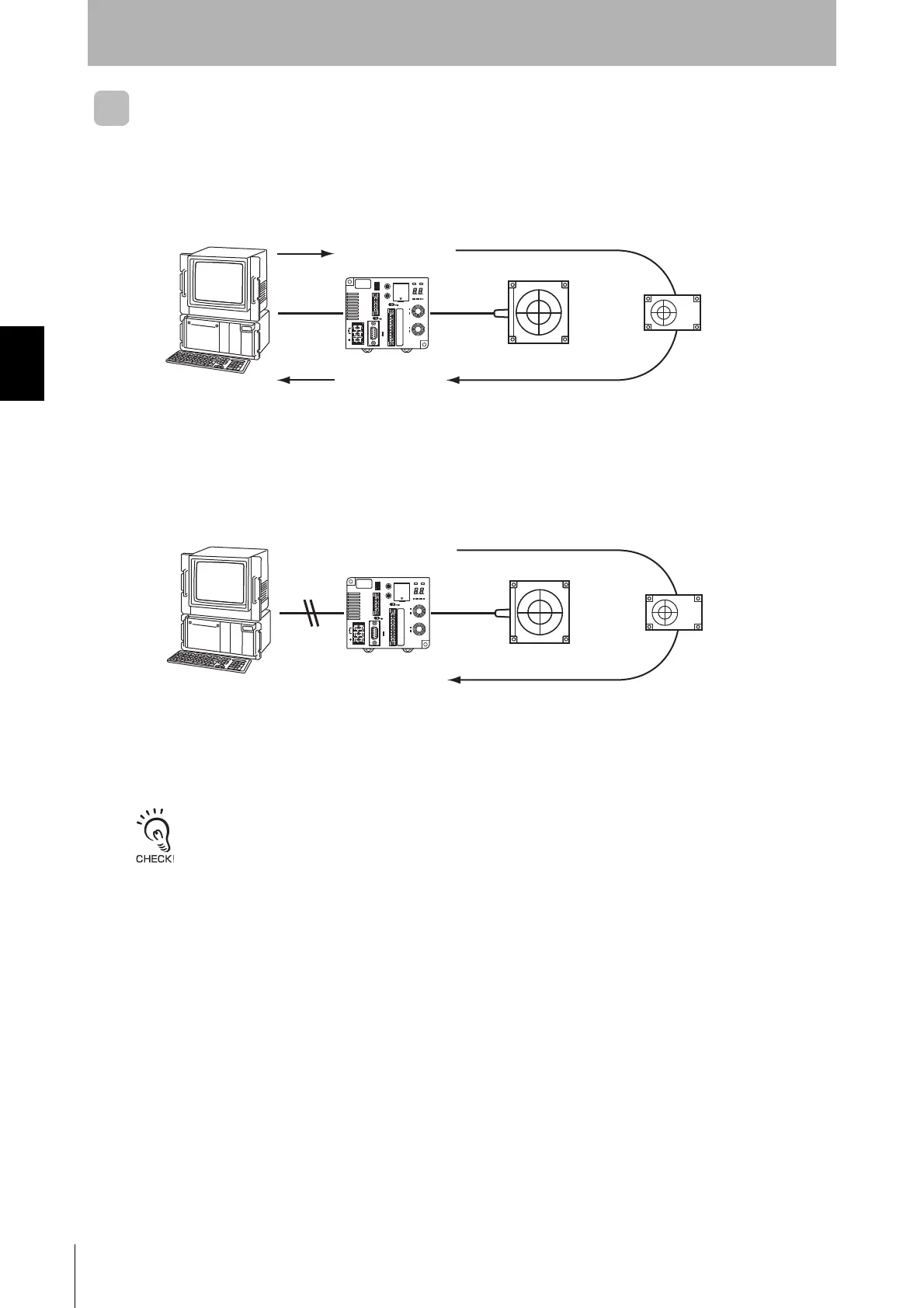

Host device
Commands
Responses
ID Controller
Read/Write Head
Data Carrier
Host device
ID Controller
Read/Write Head
Data Carrier

Omron V600 Series Specifications

General

Operating Frequency	13.56 MHz
Supported Standards	ISO 15693, ISO 18000-3
Read Range	Up to 70 mm (depending on tag and environment)
Power Supply	24 VDC ±10%
Operating Temperature	-10 to 55°C (with no icing or condensation)
Humidity	35% to 85% (non-condensing)
Communication Interface	RS-232C
