SECTION 6
Specifications and Dimensions
CIDRW System
User’s Manual
SECTION 6
Appendix

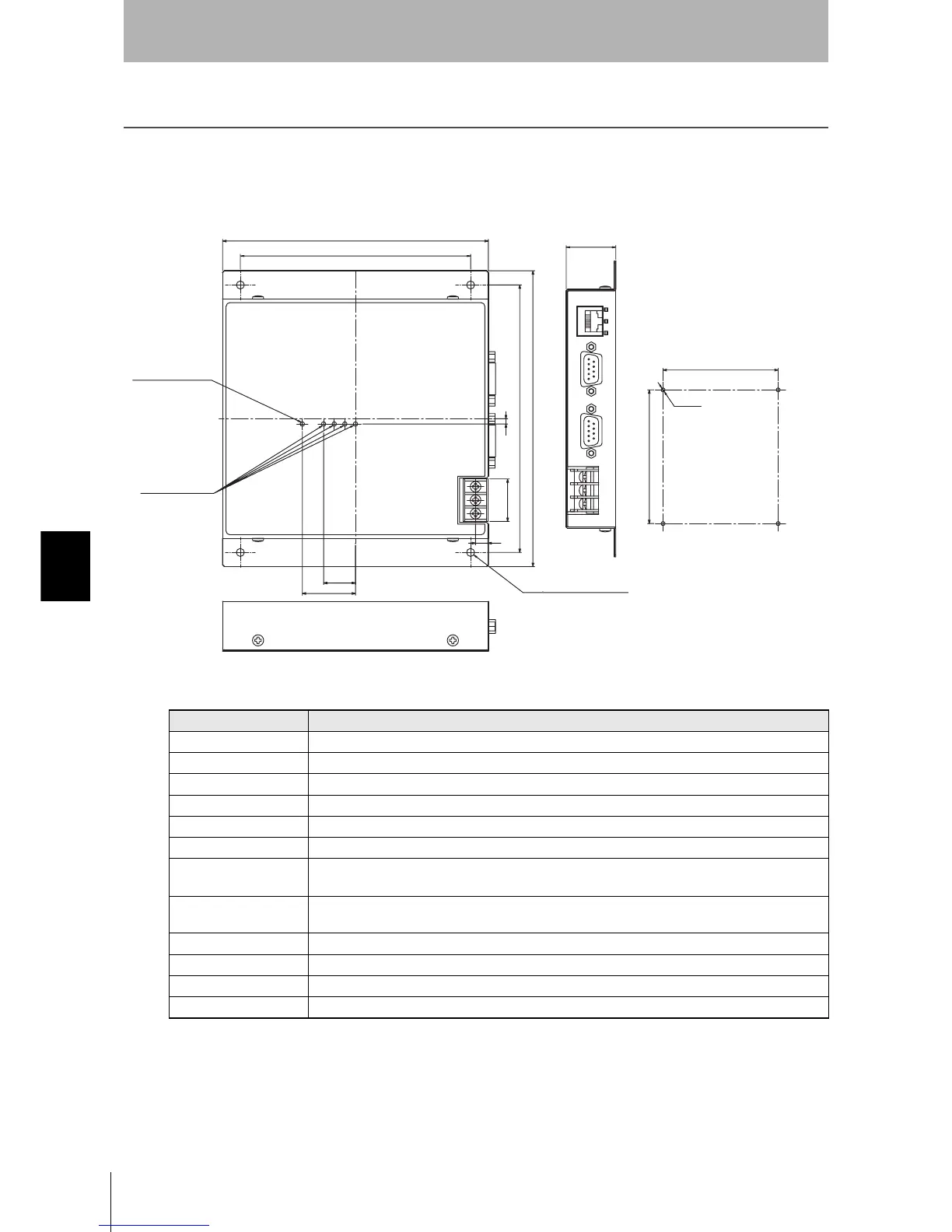

Specifications and Dimensions
Controller
V700-L22
Item Specifications
Power supply voltage 24 VDC +10% -15%
Current consumption 150 mA max. (inrush current: approx. 10 A max.)
Ambient temperature Operating: 0 to +40°C Storage: -15 to +65°C (with no icing)
Ambient humidity Operating: 10% to 85% Storage: 10% to 95% (with no condensation)
Degree of protection IP20 (IEC60529)
Insulation resistance 50 MΩ min. between power supply terminals and the frame ground terminal (500 VDC M)
Dielectric strength Leak current not to exceed 3.5 mA on application of 500 VAC (50/60 Hz for 1 minute) between both
power supply terminals and the frame ground terminal
Vibration resistance Frequency: 10 to 150 Hz; double amplitude: 0.20 mm; acceleration: 15 m/s
2
for
8 minutes, 10 times each in X, Y, and Z directions
Shock resistance Shock of 150 m/s
2
in X, Y, and Z directions, 3 times each for 18 repetitions
Ground Ground to 100 Ω or less.
Case material SECC (coating)
Weight Approx. 580 g
150
167
28
130
3
151
30
P6X3
130±0.2
151±0.2
4-M4
24
7
(1:2)
4-φ4.5
(Unit: mm)
Mounting dimensions
Power indicator
Indicators
(mounting holes)
Four, 4.5-dia. holes
