Omron V640 - Characteristic Data Depending on Conditions of Use

106
SECTION 6
Characteristic Data depending on Conditions of Use
CIDRW System
User’s Manual
SECTION 6
Appendix
Characteristic Data depending on Conditions of Use

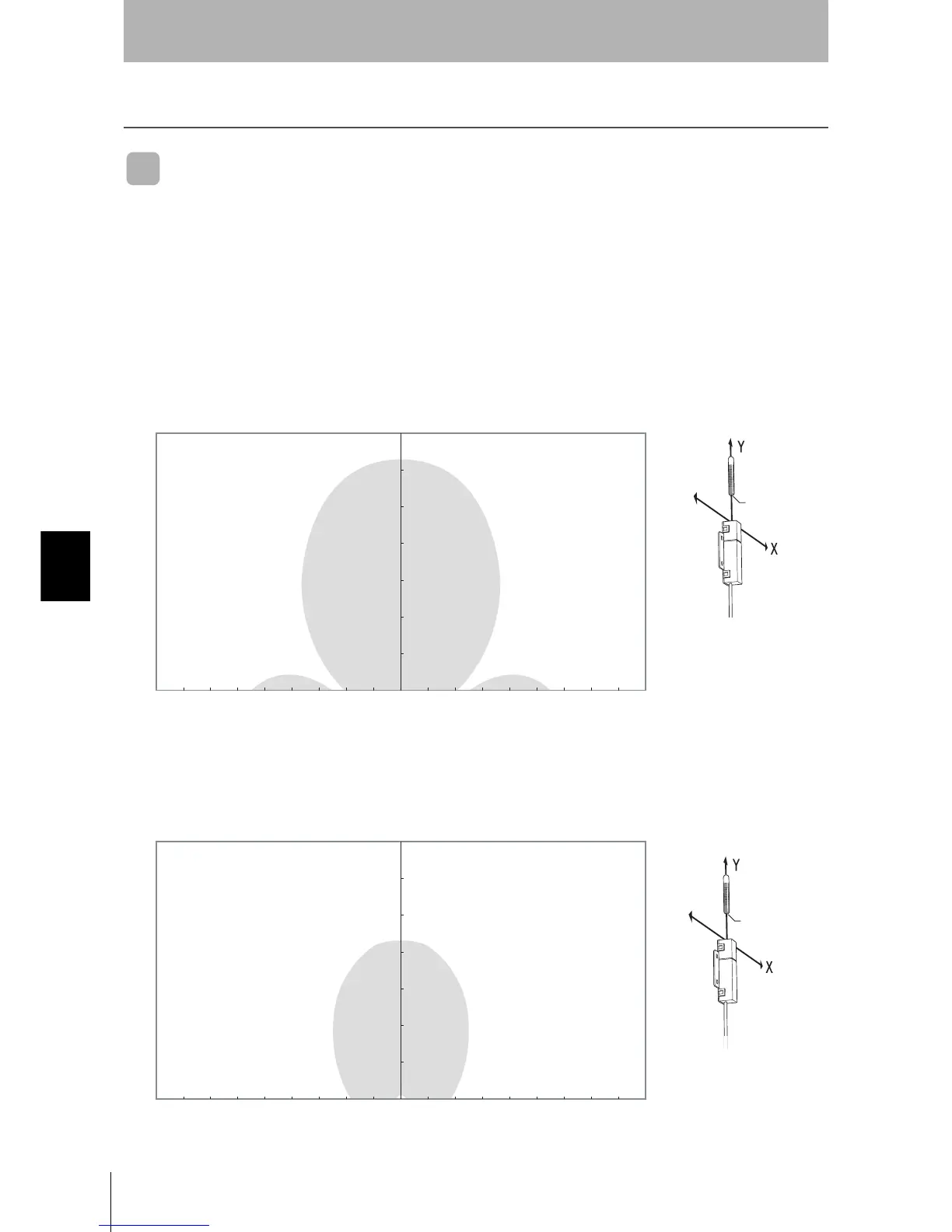

Maps of Communications Areas (Reference Only)
The figures given below for communications areas (communications distances) are reference values
only and cannot be guaranteed.
The maps of communications areas will vary according to the ID tags that you use, the background
metals, the ambient noise, the effects of temperature and so on, and should be thoroughly confirmed
on installation.
■ Coaxial Mounting (RI-TRP-DR2B)
• READ
•WRITE
0−20
0
20
40
60
80
100
120
140
−40−60−80−100−120−140−160−180 18016014012010080604020
Communications Areas (READ)
Distance in Y direction (mm)
Distance in X direction (mm)
Measurement
point
0−20
0
20
40
60
80
100
120
140
−40−60−80−100−120−140−160−180 18016014012010080604020
Communications Areas (WRITE)
Distance in Y direction (mm)
Distance in X direction (mm)
Measurement
point
