SECTION 2
Connections and Wiring
SECTION 2
Installation and Connections/Wiring
Link Unit
■ Power Supply

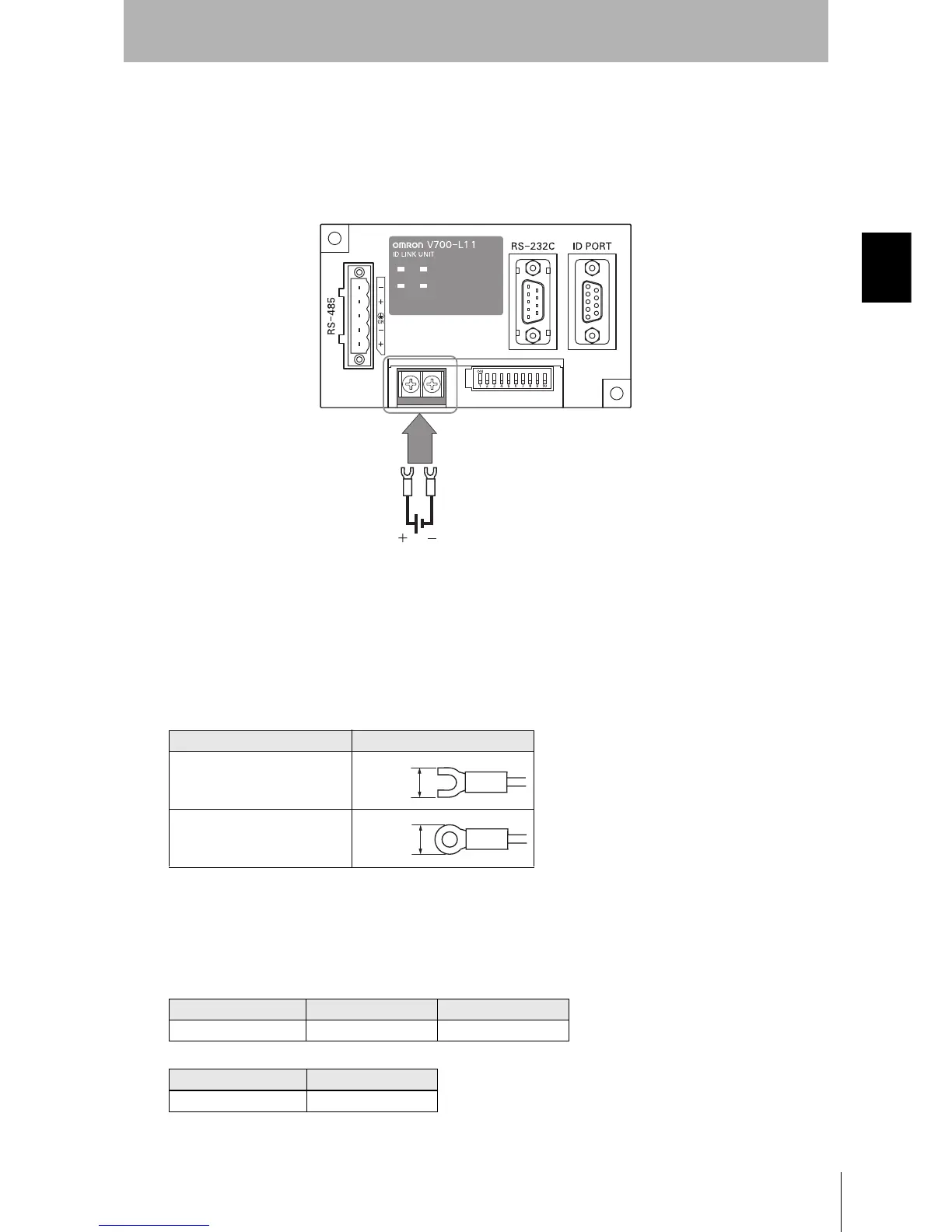

Opening the cover on the top face of the Link Unit exposes the power supply terminals.
• Crimp terminals
The terminal screws on the terminal block are M3 size. Use appropriate crimp terminals for M3 screws
as shown below.
• Power supply
Use a power supply unit that satisfies the following conditions.
Crimp terminals
Shape Size
Forked
Round
Condition
Power supply voltage Output current Safety standard
24 VDC +10%, -15% 500 mA DC min. UL Class 2
Recommended model
Manufacturer Model
OMRON S82K-01524
24 VDC
6 mm max.
6 mm max.
