Troubleshooting
■ From Trial Operation to Communications
Errors are indicated by the status of the indicators after transmission of the write command, and by the
response code of the response.
• If the ID Tag was processed normally:
If there is no response to the write command, refer to the From Installation to Trial Operation,
Operation Check Flowchart. Refer to page 95.
Indicators
RUN COMM NORM ERROR
Response code for the response
Type
Response
code
Function
Normal 00 The ID Tag was processed normally.
Error occurrence

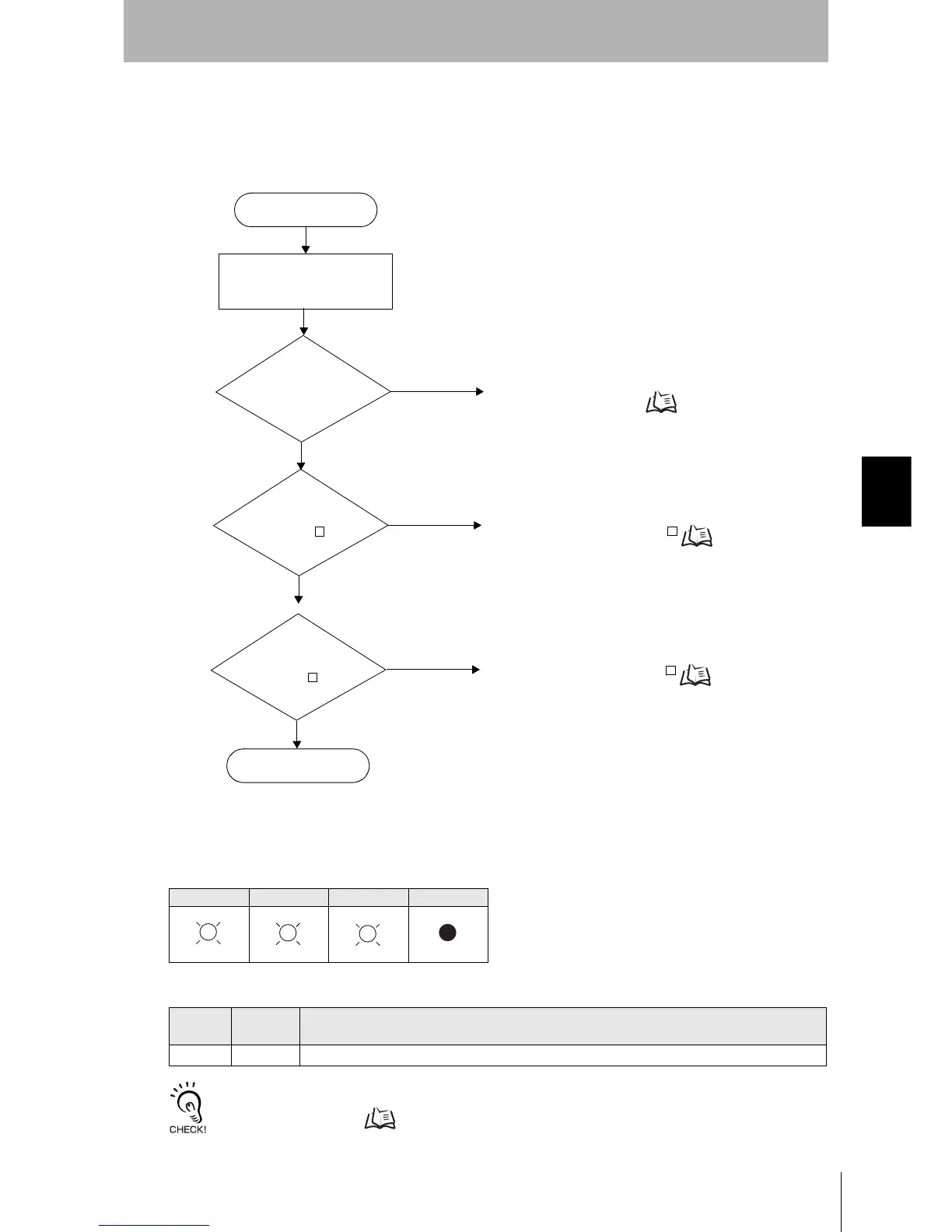

Is the response
code 1 ?
No
Yes
Check the command format.
If the response code is 1 Refer to page 98.
Yes
Communication with the ID Tag has failed.
If the response code is 7 Refer to page 98.
Write command sent
RUN-LED is OFF
No
Yes
An error has occurred at the Amplifier Unit.
Amplifier Unit error Refer to page 98.
Is the response
code 7 ?
Communications OK
No
(Lights once)
(Lights once)
