SECTION 3
Set the Communications Conditions for the CIDRW Controller
CIDRW System
User’s Manual
SECTION 3
Preparing for Communications
Set the Communications Conditions for the CIDRW
Controller
Set the communications conditions of the CIDRW Controller only when SECS is used.

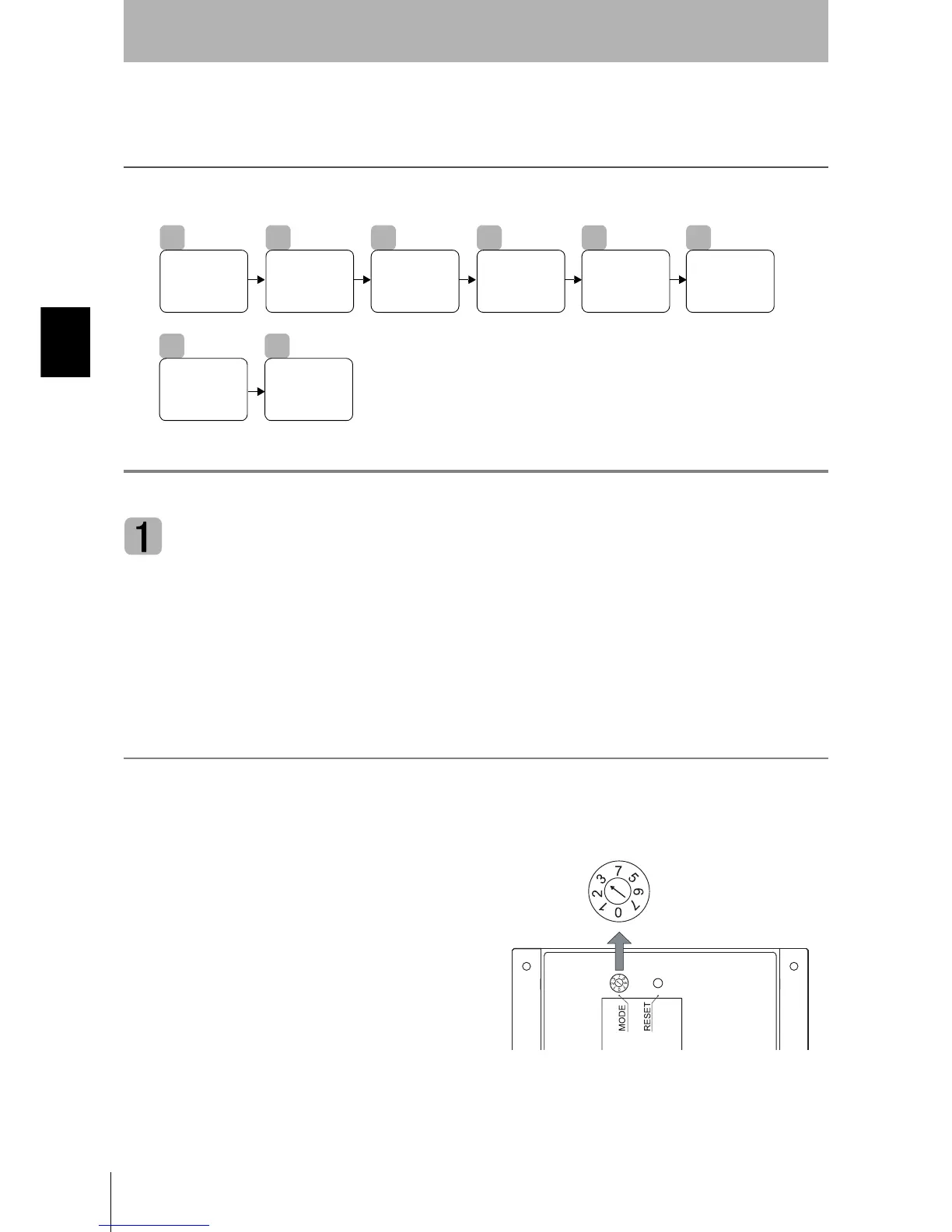

Switch to the Setting mode
The CIDRW Controller has two operating modes, the Normal Operation mode and the Setting mode.
Switch to the Setting mode to set the communications conditions.
There are two methods for switching the mode. Use the one that is appropriate for the circumstances.
■ Changing the Position of the Mode Switch on the Bottom of the Unit
This is the convenient method for setting before mounting the unit.
1. Turn OFF the power to the CIDRW Controller.
2. Set the mode switch on the bottom of the unit to
3.
1
Switch to the
Setting mode
2
Start the
terminal
software
3
Set the
parameters for the
communications
conditions.
4
Change the
Carrier ID
5
Change the
data segment
area
6
Change the
response
time-out time
7
Set Software
Revisions
8
Return to the
Normal
Operation
mode
