■ Vertical Mounting (RI-TRP-WR2B)
• READ
•WRITE
0
0
−50
30
50
60
90
120
150
180
−100 100−150 150−200 200

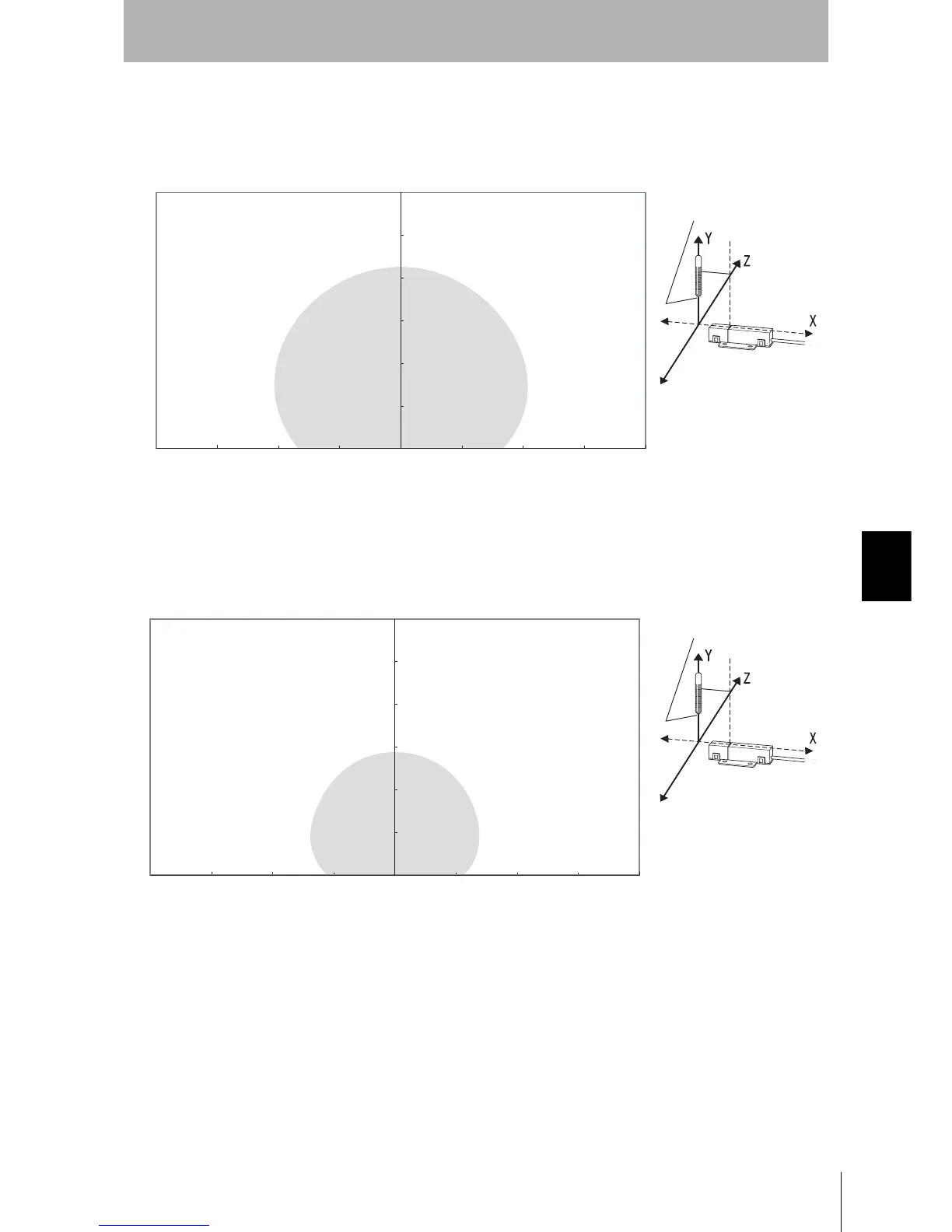

Communications Areas (READ)
Distance in Y direction (mm)
Distance in Z direction (mm)
35 mm
Measurement point
0
0
−50
30
50
60
90
120
150
180
−100 100−150 150−200 200
Communications Areas (WRITE)
Distance in Y direction (mm)
Distance in Z direction (mm)
35 mm
Measurement point
