Connections
Connecting the AV Receiver
Connecting the Speaker Cables

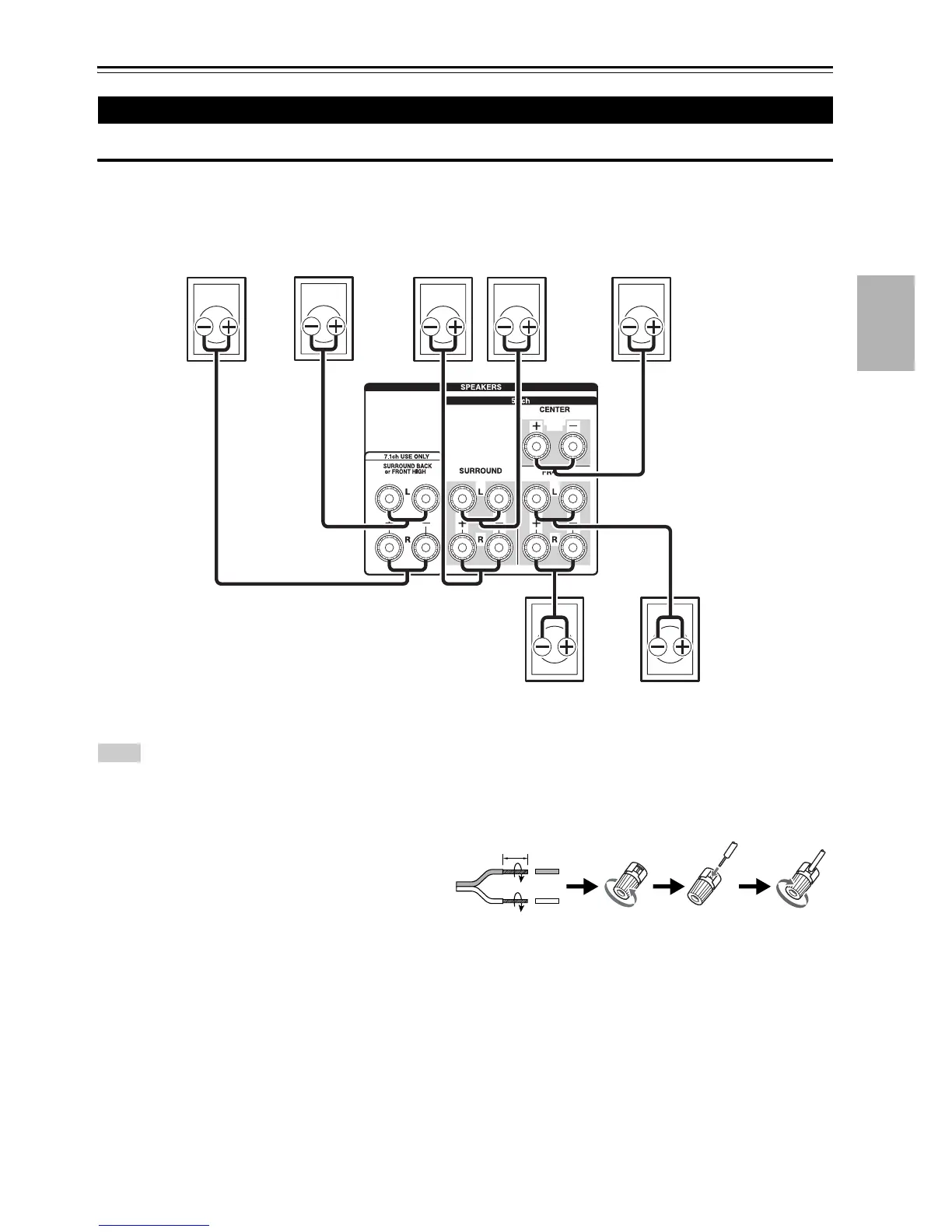

The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one
surround back speaker, connect it to the SURROUND BACK or FRONT HIGH L terminals.
Tip
• You can specify whether surround back or front high speakers are connected in the “Sp Config (Speaker Configuration)” menu
(➔ page 36) or during Audyssey 2EQ
®
Room Correction and Speaker Setup (➔ page 24).
■ Screw-type speaker terminals
Strip 1/2" to 5/8" (12 to 15 mm) of insulation from
the ends of the speaker cables, and twist the bare
wires tightly, as shown.
■ Banana Plugs (excluding Asian models)
• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.
• Do not insert the speaker code directly into the center hole of the speaker terminal.
Connecting Your Speakers
Surround back/
front high
right
Surround back/
front high
left
Surround
right
Surround
left Center
Front right Front left
1/2" to 5/8" (12 to 15 mm)

Onkyo HT-S5400 Specifications

General

Disc types supported	No
Optical disc player type	-
Apple docking compatibility	iPhone, iPod
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
RMS rated power	- W
Audio output channels	7.1 channels
Audio formats supported	AAC, FLAC, MP3, WMA
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
FM radio	Yes
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speaker peak power	130 W
Front speaker frequency range	55 - 50000 Hz
Satellite speaker frequency range	80 - 20000 Hz
Subwoofer peak power	120 W
Subwoofer frequency range	25 - 150 Hz
Product color	Black
HDMI in	4
USB version	2.0
Audio (L/R) in	6
Composite video in	5
SCART ports quantity	0
Number of HDMI outputs	1
Component video (YPbPr/YCbCr) in	2
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	480 W
Package weight	34000 g

Weight and Dimensions

Main unit weight	9000 g
Subwoofer weight	10800 g
Center speaker weight	2400 g
Satellite speaker weight	1000 g
Main unit dimensions (WxDxH)	435 x 328 x 150 mm
Subwoofer dimensions (WxDxH)	317.5 x 398 x 463 mm
Front speaker dimensions (WxDxH)	1550 x 170 x 375.5 mm
Center speaker dimensions (WxDxH)	420 x 121 x 115 mm
Satellite speaker dimensions (WxDxH)	115 x 96 x 230 mm
