Onkyo HT-S5400 User Manual

32
En
You can adjust the brightness of the AV receiver’s
display.
You can display various information about the current
input source as follows.
The following information can typically be displayed.
Tip
• Alternatively, you can use the AV receiver’s DISPLAY.
*1
When AM or FM radio is used, the band, preset number, and
frequency are displayed.
*2
If the input signal is analog, “Analog” is displayed. If the
input signal is PCM, the sampling frequency is displayed. If
the input signal is digital but not PCM, the signal format is
displayed. Information is displayed for about three seconds,
then the previously displayed information reappears.
When you connect an u-capable Onkyo component, you
must configure the input display so that u can work
properly.
This setting can be done only from the front panel.
The Music Optimizer function enhances the sound quality
of compressed music files.
Setting the Display Brightness
1
Press RECEIVER followed by DIMMER
repeatedly to select: dim, dimmer, or normal
brightness.
Tip
• (North American and Brazilian models) Alternatively,
you can use the AV receiver’s DIMMER.

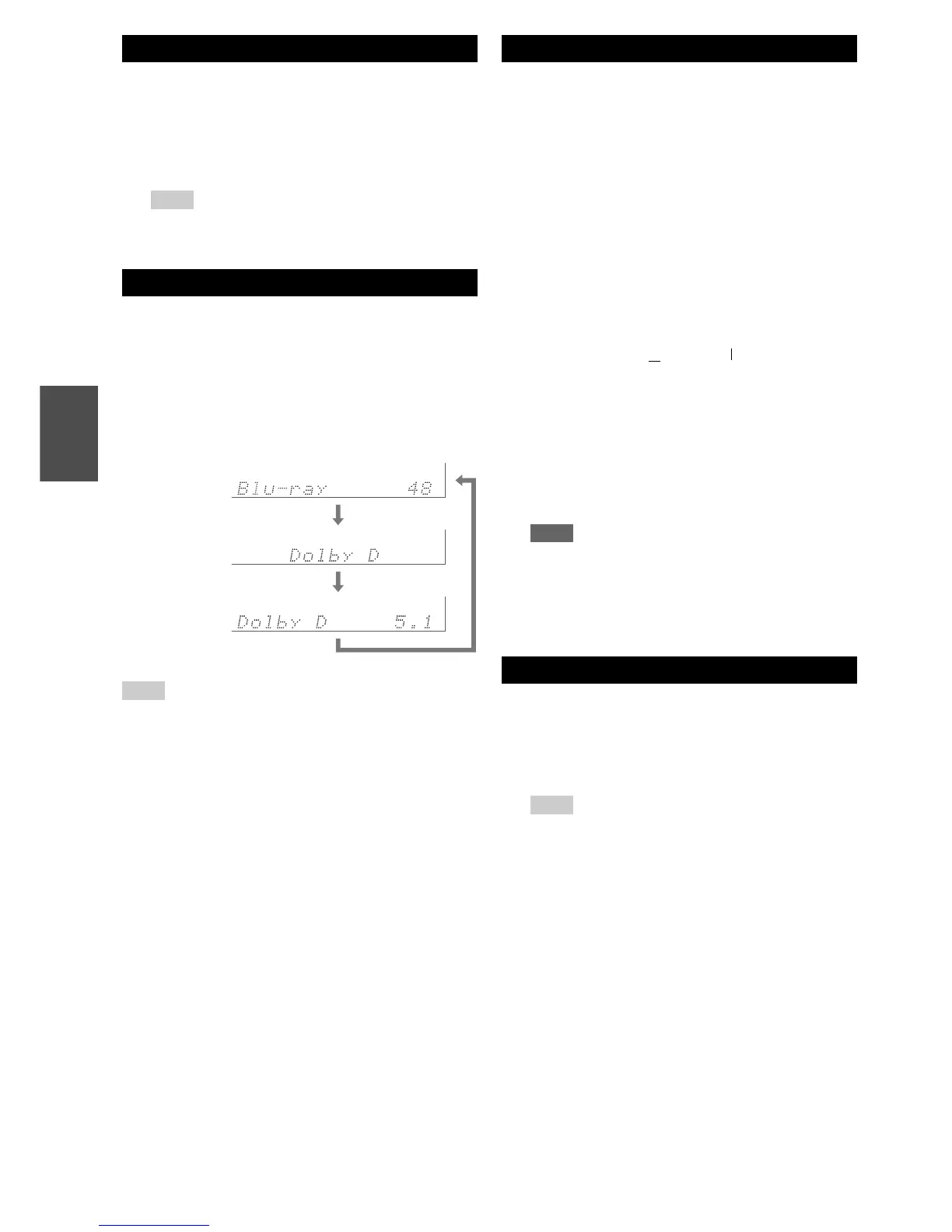

Displaying Source Information
1
Press RECEIVER followed by DISPLAY
repeatedly to cycle through the available
information.
Input source &
volume
*1
Listening mode
Signal format
*2
or sampling
frequency
Changing the Input Display
1
Press TV/CD, GAME or VCR/DVR.
“TV/CD”, “GAME” or “VCR/DVR” appears on the
display.
2
Press and hold down the same button (about
3 seconds) to change the input display.
Repeat this step to select the desired input display.
■ TV/CD:
■ GAME:
■ VCR/DVR:
Note
• DOCK cannot be selected for multiple input selectors at
the same time.
• Enter the appropriate remote control code before using the
remote controller for the first time (➔ page 47).
Using the Music Optimizer
1
Press MUSIC OPTIMIZER on the front panel.
The M.Opt indicator lights on the display.
Tip
• Alternatively, you can use the remote controller’s HOME
and arrow buttons.
• See “Music Optimizer” for more details (➔ page 44).
TV/CD → DOCK
→
→
TAPE
GAME ↔ DOCK
VCR/DVR ↔ DOCK

Onkyo HT-S5400 Specifications

General

Disc types supported	No
Optical disc player type	-
Apple docking compatibility	iPhone, iPod
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
RMS rated power	- W
Audio output channels	7.1 channels
Audio formats supported	AAC, FLAC, MP3, WMA
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
FM radio	Yes
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speaker peak power	130 W
Front speaker frequency range	55 - 50000 Hz
Satellite speaker frequency range	80 - 20000 Hz
Subwoofer peak power	120 W
Subwoofer frequency range	25 - 150 Hz
Product color	Black
HDMI in	4
USB version	2.0
Audio (L/R) in	6
Composite video in	5
SCART ports quantity	0
Number of HDMI outputs	1
Component video (YPbPr/YCbCr) in	2
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	480 W
Package weight	34000 g

Weight and Dimensions

Main unit weight	9000 g
Subwoofer weight	10800 g
Center speaker weight	2400 g
Satellite speaker weight	1000 g
Main unit dimensions (WxDxH)	435 x 328 x 150 mm
Subwoofer dimensions (WxDxH)	317.5 x 398 x 463 mm
Front speaker dimensions (WxDxH)	1550 x 170 x 375.5 mm
Center speaker dimensions (WxDxH)	420 x 121 x 115 mm
Satellite speaker dimensions (WxDxH)	115 x 96 x 230 mm
