14
En
Connect your components to the appropriate jacks. The default input assignments are shown below.
✔: Assignment can be changed (➔ page 35).
See also:
• “Connection Tips and Video Signal Path” (➔ page 54)
• “About HDMI” (➔ page 56)
• “Using an RIHD-compatible TV, Player, or Recorder” (➔ page 57)
■ Audio return channel (ARC) function
Audio return channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT of the
AV receiver (➔ page 42).
• To use ARC function, you must select the TV/CD input selector, your TV must support ARC function and “HDMI
Ctrl (RIHD)” is set to “On” (➔ page 42).
Tip
• To listen to audio received by the HDMI IN jacks through your TV’s speakers:
– Set the “HDMI Ctrl (RIHD)” setting to “On” for an p-compatible TV.
– Set the “Audio TV Out” setting to “On” (➔ page 42) when the TV is not compatible with p or the “HDMI Ctrl (RIHD)”
setting to “Off”.
– Set your Blu-ray Disc/DVD player’s HDMI audio output setting to PCM.
– To listen to TV audio through the AV receiver, see “Connecting Your Components” (➔ page 15).
Note
• When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV
screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to
another input source, this may result in no sound from the AV receiver or the sound may be cut off.
• When the “Audio TV Out” setting is set to “On” (➔ page 42) to hear from your TV’s speakers, by controlling the AV receiver’s
volume, the sound will be output from the AV receiver’s speakers, too. When the
“HDMI Ctrl (RIHD)” setting is set to “On”
(➔ page 42) to hear from speakers of p-compatible TV, by controlling the AV receiver’s volume, the AV receiver’s speakers
will produce sound while the TV’s speakers are muted. To stop the AV receiver’s speakers producing sound, change the settings,
change your TV’s settings, or turn down the AV receiver’s volume.

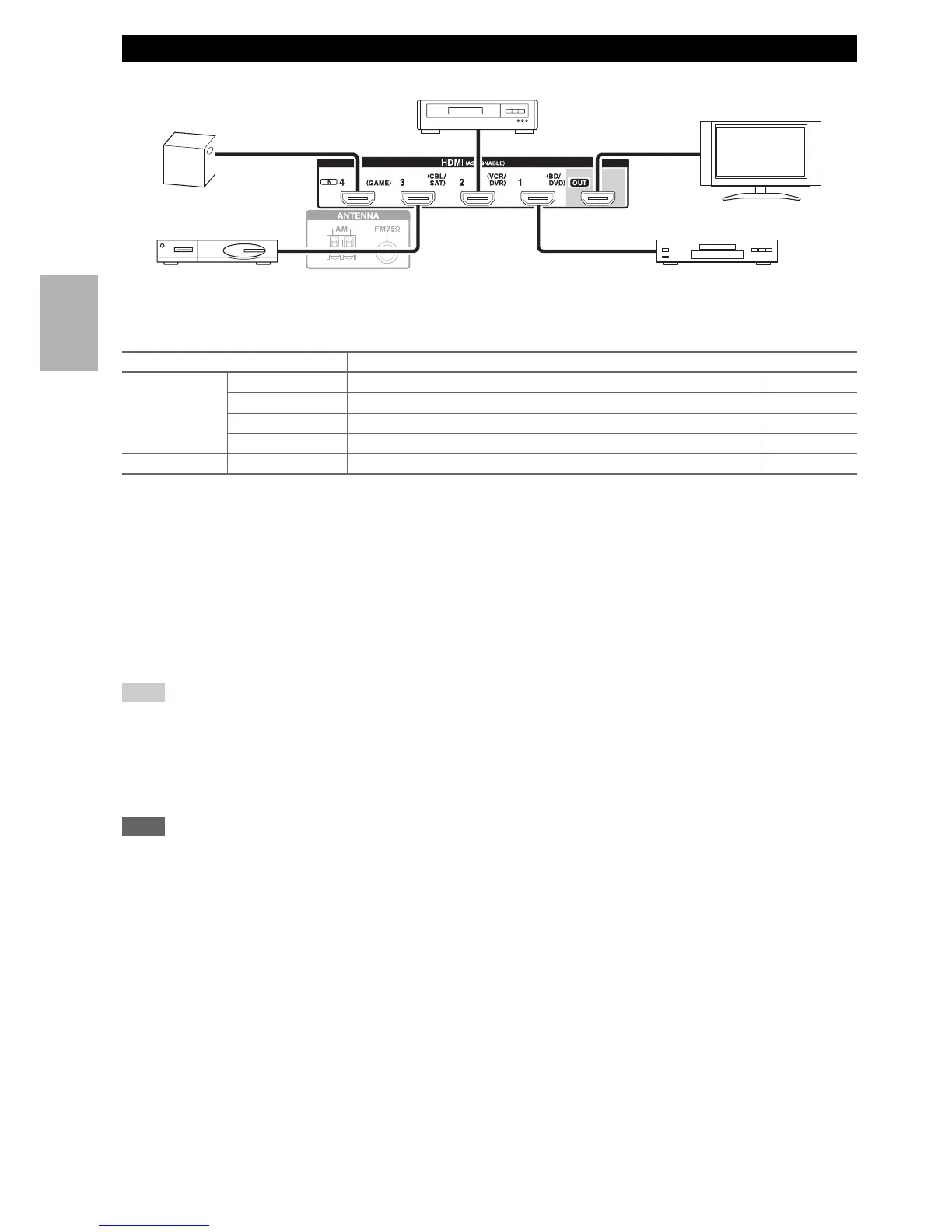

Connecting Components with HDMI
Jack Components Assignable
Input HDMI IN1 Blu-ray Disc/DVD player ✔
HDMI IN2 VCR or DVD recorder/Digital Video Recorder ✔
HDMI IN3 Satellite/cable set-top box, etc. ✔
HDMI IN4 Game console ✔
Output HDMI OUT TV, projector, etc.
Game console
VCR or DVD recorder/Digital Video Recorder
TV, projector, etc.
Satellite/cable set-top box, etc. Blu-ray Disc/DVD player

Onkyo HT-S5400 Specifications

General

Disc types supported	No
Optical disc player type	-
Apple docking compatibility	iPhone, iPod
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
RMS rated power	- W
Audio output channels	7.1 channels
Audio formats supported	AAC, FLAC, MP3, WMA
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
FM radio	Yes
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speaker peak power	130 W
Front speaker frequency range	55 - 50000 Hz
Satellite speaker frequency range	80 - 20000 Hz
Subwoofer peak power	120 W
Subwoofer frequency range	25 - 150 Hz
Product color	Black
HDMI in	4
USB version	2.0
Audio (L/R) in	6
Composite video in	5
SCART ports quantity	0
Number of HDMI outputs	1
Component video (YPbPr/YCbCr) in	2
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	480 W
Package weight	34000 g

Weight and Dimensions

Main unit weight	9000 g
Subwoofer weight	10800 g
Center speaker weight	2400 g
Satellite speaker weight	1000 g
Main unit dimensions (WxDxH)	435 x 328 x 150 mm
Subwoofer dimensions (WxDxH)	317.5 x 398 x 463 mm
Front speaker dimensions (WxDxH)	1550 x 170 x 375.5 mm
Center speaker dimensions (WxDxH)	420 x 121 x 115 mm
Satellite speaker dimensions (WxDxH)	115 x 96 x 230 mm
