Onkyo HT-S5400 User Manual

9
En
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e SUBWOOFER PRE OUT jack
f SPEAKERS terminals
(FRONT, CENTER, SURROUND, SURROUND
BACK or FRONT HIGH)
g Power cord (North American and Asian models)
h u REMOTE CONTROL jack
i Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, TV/CD IN)
j MONITOR OUT V jack
k AC INLET (Brazilian models)

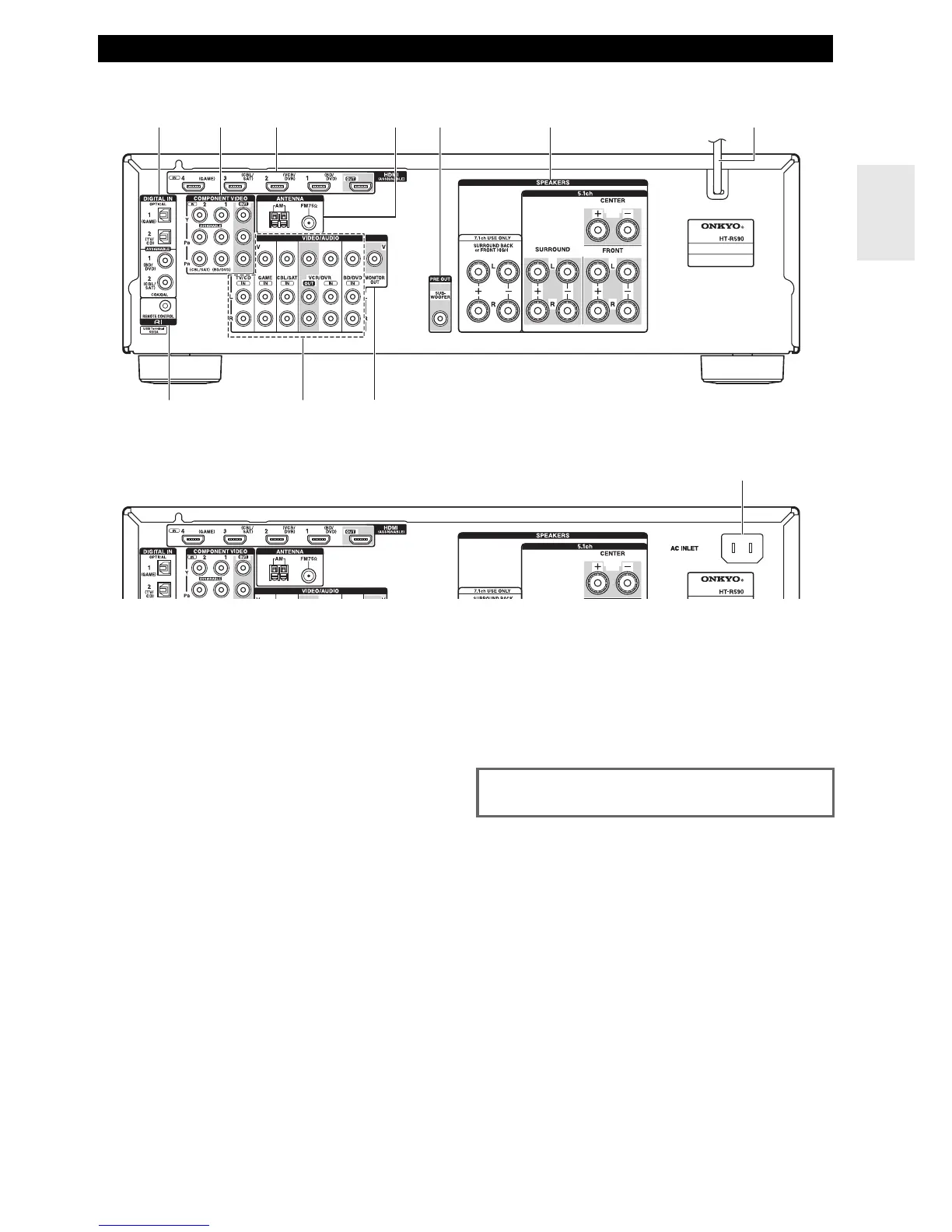

Rear Panel
a b c
d
g
e
f
h
i j
(North American and Asian models)
k
(Brazilian models)
See “Connecting the AV Receiver” for connection
(➔ pages 11 to 17).

Onkyo HT-S5400 Specifications

General

Disc types supported	No
Optical disc player type	-
Apple docking compatibility	iPhone, iPod
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
RMS rated power	- W
Audio output channels	7.1 channels
Audio formats supported	AAC, FLAC, MP3, WMA
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
FM radio	Yes
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speaker peak power	130 W
Front speaker frequency range	55 - 50000 Hz
Satellite speaker frequency range	80 - 20000 Hz
Subwoofer peak power	120 W
Subwoofer frequency range	25 - 150 Hz
Product color	Black
HDMI in	4
USB version	2.0
Audio (L/R) in	6
Composite video in	5
SCART ports quantity	0
Number of HDMI outputs	1
Component video (YPbPr/YCbCr) in	2
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	480 W
Package weight	34000 g

Weight and Dimensions

Main unit weight	9000 g
Subwoofer weight	10800 g
Center speaker weight	2400 g
Satellite speaker weight	1000 g
Main unit dimensions (WxDxH)	435 x 328 x 150 mm
Subwoofer dimensions (WxDxH)	317.5 x 398 x 463 mm
Front speaker dimensions (WxDxH)	1550 x 170 x 375.5 mm
Center speaker dimensions (WxDxH)	420 x 121 x 115 mm
Satellite speaker dimensions (WxDxH)	115 x 96 x 230 mm
