Onkyo HT-S5400 User Manual

19
En
Playback
■ Operating with the remote controller
■ Operating on the AV receiver
See “Controlling Other Onkyo Components” about the
operation of other components (➔ page 47).
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to the MONITOR OUT V or the COMPONENT
VIDEO OUT, use the AV receiver’s display when
changing settings.
This section describes the procedure using the remote
controller unless otherwise specified.
Playing the Connected Component
1
Press RECEIVER followed by INPUT
SELECTOR.
2
Start playback on the source component.
See also:
• “Playing iPod/iPhone via USB” (➔ page 20)
• “Playing USB Device” (➔ page 21)
• “Listening to AM/FM Radio” (➔ page 21)
• “iPod/iPhone Playback via Onkyo Dock”
(➔ page 45)
• “Controlling Other Onkyo Components”
(➔ page 47)
3
To adjust the volume, use VOL q/w.
4
Select a listening mode and enjoy!
See also:
• “Using the Listening Modes” (➔ page 27)
• “Audyssey” (➔ page 39)
1
Use the input selector buttons to select the input
source.
2
Start playback on the source component.
3
To adjust the volume, use the MASTER VOLUME
control.
4
Select a listening mode and enjoy!

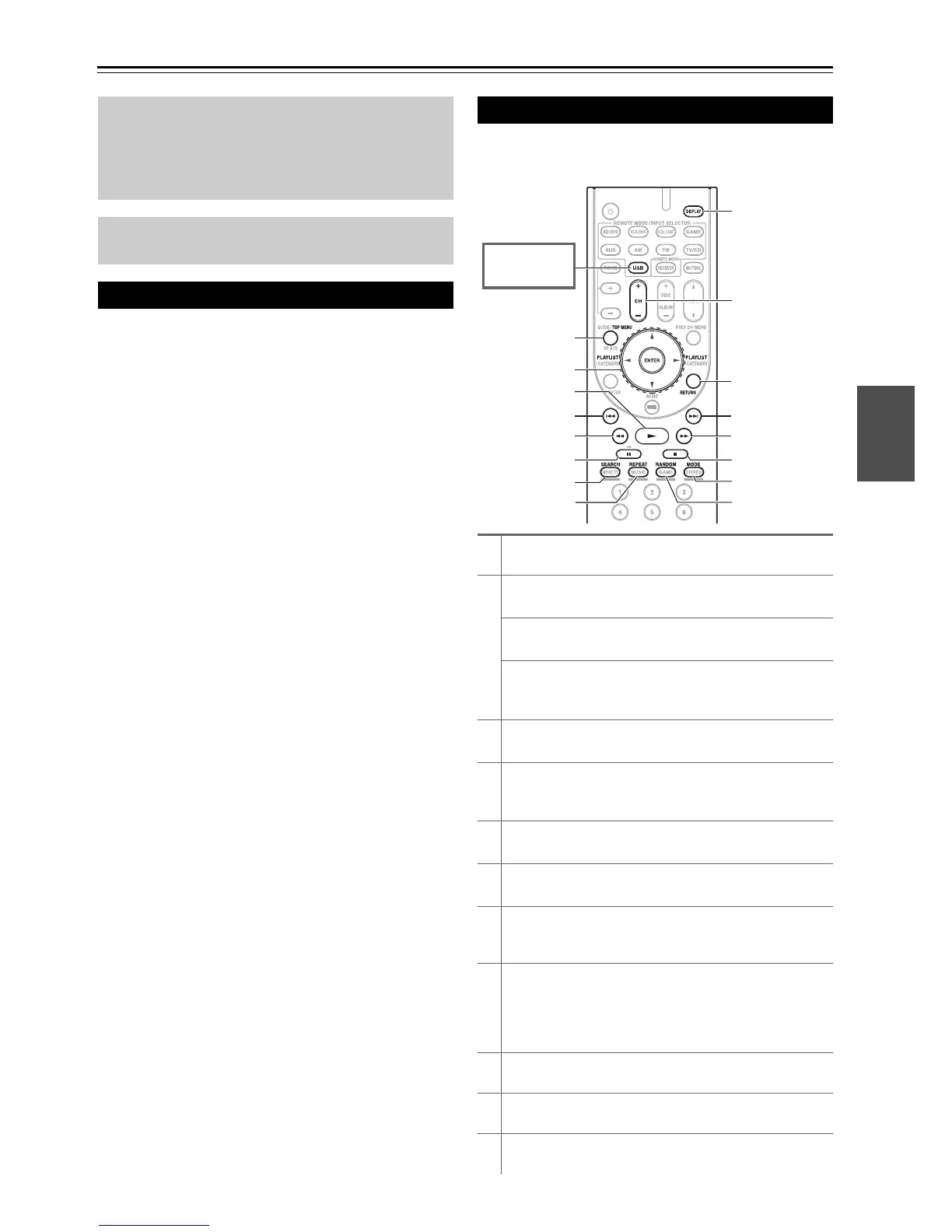

Controlling Contents of USB Devices
a
TOP MENU
This button displays the top menu for each media or service.
b
q/w and ENTER
These buttons navigate through the menus.
e/r
This button cycles through pages.
PLAYLIST e/r
In Standard Mode (iPod/iPhone), this button selects
playlists.
c
1
This button starts playback.
d
7
This button selects the beginning of the current song.
Pressing this button twice selects the previous song.
e
5
This button fast-reverses the current song.
f
3
This button pauses playback.
g
SEARCH
You can toggle between the playback screen and the list
screen during playback.
h
REPEAT
Press this button repeatedly to cycle through the repeat
modes.
To cancel repeat playback, press REPEAT repeatedly until
you select Off.
i
DISPLAY
This button switches between song informations.
j
CH +/–
In Standard Mode (iPod/iPhone), this button selects albums.
k
RETURN
This button returns to the previous menu.
k
l
m
i
j
p
o
n
e
g
d
a
b
c
f
h
Press USB
first.

Onkyo HT-S5400 Specifications

General

Disc types supported	No
Optical disc player type	-
Apple docking compatibility	iPhone, iPod
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
RMS rated power	- W
Audio output channels	7.1 channels
Audio formats supported	AAC, FLAC, MP3, WMA
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
FM radio	Yes
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speaker peak power	130 W
Front speaker frequency range	55 - 50000 Hz
Satellite speaker frequency range	80 - 20000 Hz
Subwoofer peak power	120 W
Subwoofer frequency range	25 - 150 Hz
Product color	Black
HDMI in	4
USB version	2.0
Audio (L/R) in	6
Composite video in	5
SCART ports quantity	0
Number of HDMI outputs	1
Component video (YPbPr/YCbCr) in	2
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	480 W
Package weight	34000 g

Weight and Dimensions

Main unit weight	9000 g
Subwoofer weight	10800 g
Center speaker weight	2400 g
Satellite speaker weight	1000 g
Main unit dimensions (WxDxH)	435 x 328 x 150 mm
Subwoofer dimensions (WxDxH)	317.5 x 398 x 463 mm
Front speaker dimensions (WxDxH)	1550 x 170 x 375.5 mm
Center speaker dimensions (WxDxH)	420 x 121 x 115 mm
Satellite speaker dimensions (WxDxH)	115 x 96 x 230 mm
