Front & Rear Panels
The page numbers in parentheses show where you can find the main explanation for each item.
a 8 ON/STANDBY button (18)
b HDMI THRU indicator (42)
c SUBWOOFER LEVEL buttons (43)
d Remote control sensor (4)
e LISTENING MODE buttons (27)
f Display (8)
g DIMMER button (North American and Brazilian
models) (32)
h MEMORY button (22)
i TUNING MODE button (21)
j DISPLAY button (32)
k SETUP button (34)
l TUNING, PRESET (21 to 22), arrow and ENTER
buttons
m RETURN button
n MASTER VOLUME control (19)
o MUSIC OPTIMIZER button (32, 44)
p PHONES jack (33)
q TONE and Tone Level buttons (43)
r Input selector buttons (19)
s AUX INPUT AUDIO and VIDEO jacks (15, 33)
t USB port (15)
u SETUP MIC jack (24)
v RT/PTY/TP button (Asian models) (23)

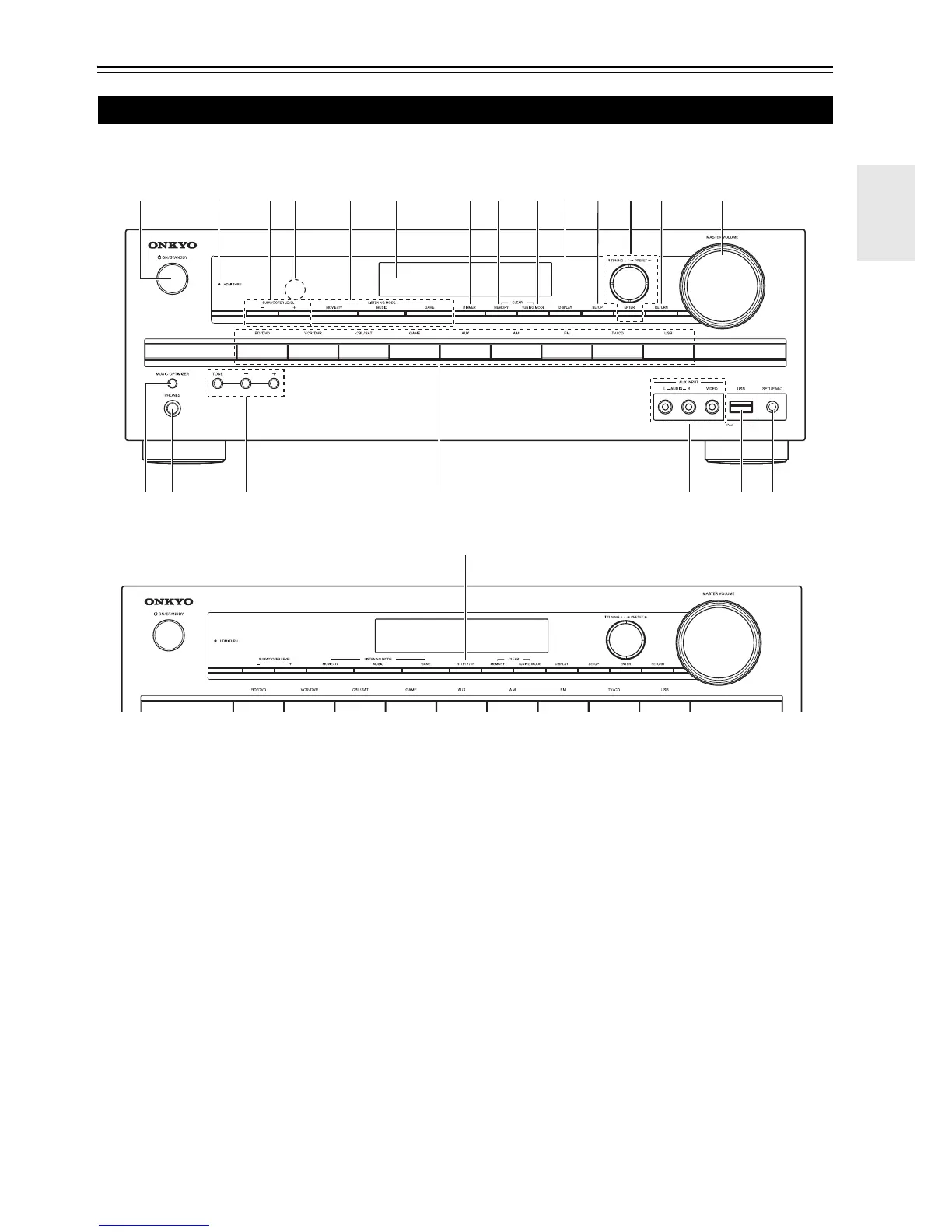

Front Panel
a
rs
t u
bd
egfhijklmn
p
qo
c
(North American and Brazilian models)
v
(Asian models)

Onkyo HT-S5400 Specifications

General

Disc types supported	No
Optical disc player type	-
Apple docking compatibility	iPhone, iPod
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
RMS rated power	- W
Audio output channels	7.1 channels
Audio formats supported	AAC, FLAC, MP3, WMA
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
FM radio	Yes
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speaker peak power	130 W
Front speaker frequency range	55 - 50000 Hz
Satellite speaker frequency range	80 - 20000 Hz
Subwoofer peak power	120 W
Subwoofer frequency range	25 - 150 Hz
Product color	Black
HDMI in	4
USB version	2.0
Audio (L/R) in	6
Composite video in	5
SCART ports quantity	0
Number of HDMI outputs	1
Component video (YPbPr/YCbCr) in	2
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	480 W
Package weight	34000 g

Weight and Dimensions

Main unit weight	9000 g
Subwoofer weight	10800 g
Center speaker weight	2400 g
Satellite speaker weight	1000 g
Main unit dimensions (WxDxH)	435 x 328 x 150 mm
Subwoofer dimensions (WxDxH)	317.5 x 398 x 463 mm
Front speaker dimensions (WxDxH)	1550 x 170 x 375.5 mm
Center speaker dimensions (WxDxH)	420 x 121 x 115 mm
Satellite speaker dimensions (WxDxH)	115 x 96 x 230 mm
