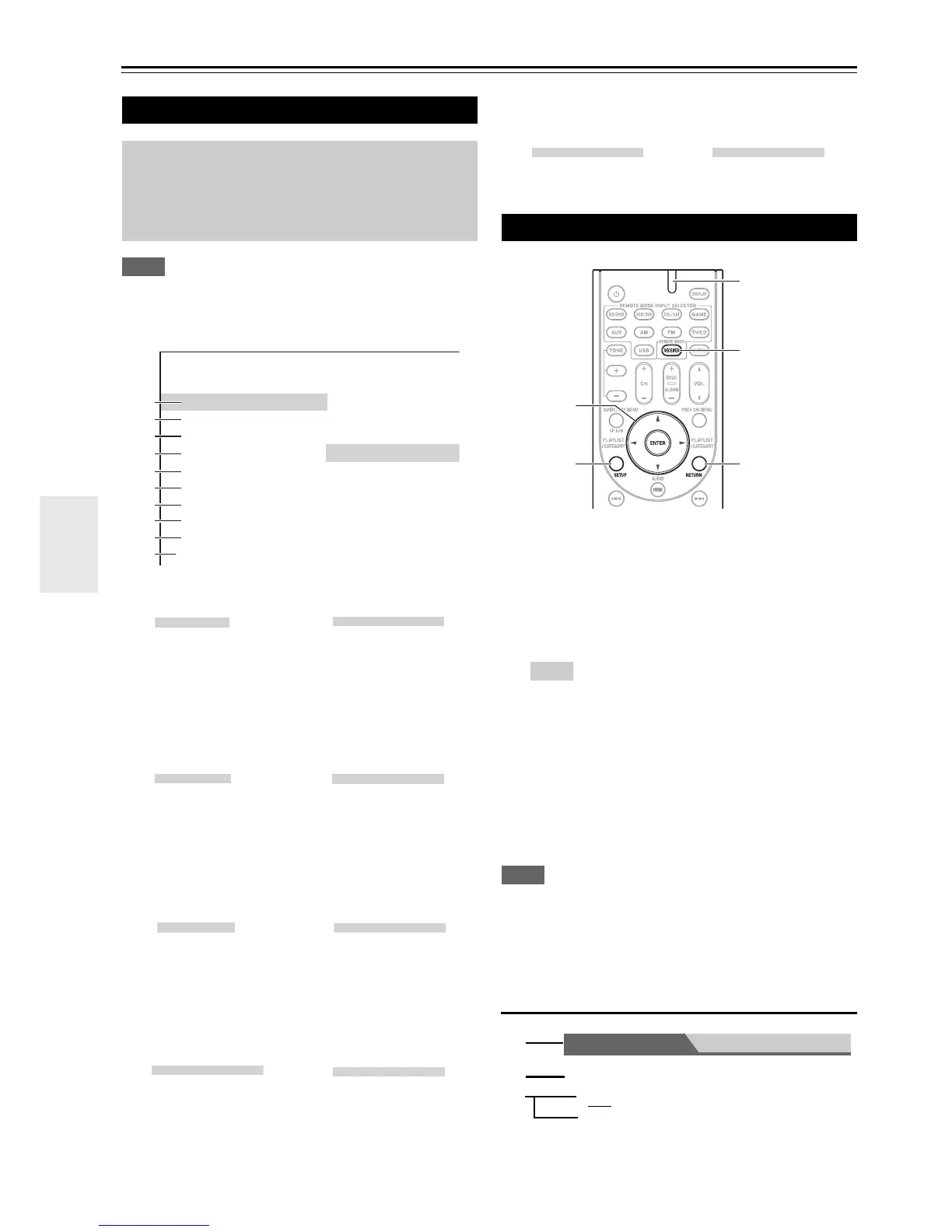

Page #34 background imageLoading...
Page #34 background image
34
En
Advanced Operations
Advanced Setup
Note
The on-screen setup menus are displayed when:
There is no video input, or
The video input is 480p, 576p, 720p, 1080i, or 1080p.
The on-screen setup menus appear on the connected TV
and provide a convenient way to change the AV receiver’s
various settings. Settings are organized into 10 categories
on the main menu.
Carry out the settings by using the on-screen display.
Note
This procedure can also be performed on the AV receiver by
using SETUP, arrow buttons, and ENTER.
During Audyssey 2EQ
®
Room Correction and Speaker Setup,
messages, etc., that are displayed on the TV screen will appear
in the Display.
Explanatory Notes
On-screen Setup Menus
The on-screen setup menus appear only on a TV that
is connected to the HDMI OUT. If your TV is
connected to the MONITOR OUT V or the
COMPONENT VIDEO OUT, use the AV receiver’s
display when changing settings.
a HDMI Input
( page 35)
e Sp Distance
( page 37)
b Component
( page 35)
f Level Cal
( page 37)
c Digital Audio
( page 35)
g Audio Adjust
( page 37)
d Sp Config
( page 36)
h Source Setup
( page 39)
Setup Menu
1. HDMI Input
2. Component
3. Digital Audio
4. Sp Config
5. Sp Distance
6. Level Cal
7. Audio Adjust
8. Source Setup
9. Hardware
10. HDMI Setup
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TUNER
TV/CD
a
b
c
d
e
f
g
h
i
j
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TUNER
TV/CD
Unit
Left
Front High Left
Center
Front High Right
Right
Surround Right
SurrBack Right
SurrBack Left
Surround Left
Subwoofer
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TUNER
TV/CD
Left
Front High Left
Center
Front High Right
Right
Surround Right
SurrBack Right
SurrBack Left
Surround Left
Subwoofer
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TUNER
TV/CD
Input Ch (Mux)
Input Ch (Mono)
Panorama
Dimension
Center Width
Height Gain
Dolby EX
Center Image
Listening Angle
Subwoofer
Front
Center
Surround
Front High
Surround Back
Surround Back Ch
Crossover
Double Bass
Audyssey
Dynamic EQ
Reference Level
Dynamic Volume
A/V Sync
Name
Audio Selector
Fixed Mode
i Hardware
( page 41)
j HDMI Setup
( page 42)
Common Procedures in Setup Menu
1
Press RECEIVER followed by SETUP.
Tip
If the main menu doesn’t appear, make sure the appropriate
external input is selected on your TV.
2
Use q/w to select a menu, and then press ENTER.
3
Use q/w to select target, and use e/r to change the
setting.
Press SETUP to close the menu.
Press RETURN to return to the main menu.
Volume OSD
Remote ID
AM/FM Freq Step
Auto Standby
HDMI Ctrl (RIHD)
HDMI Through
Audio TV Out
Audio Return Ch
LipSync
RETURN
SETUP
RECEIVER
ENTER
q/w/e/r
Remote indicator
a Menu selection
b Setting target
c Setting options (default setting underlined)
Menu Sp Config
Subwoofer
` Yes
` No
a
b
c
