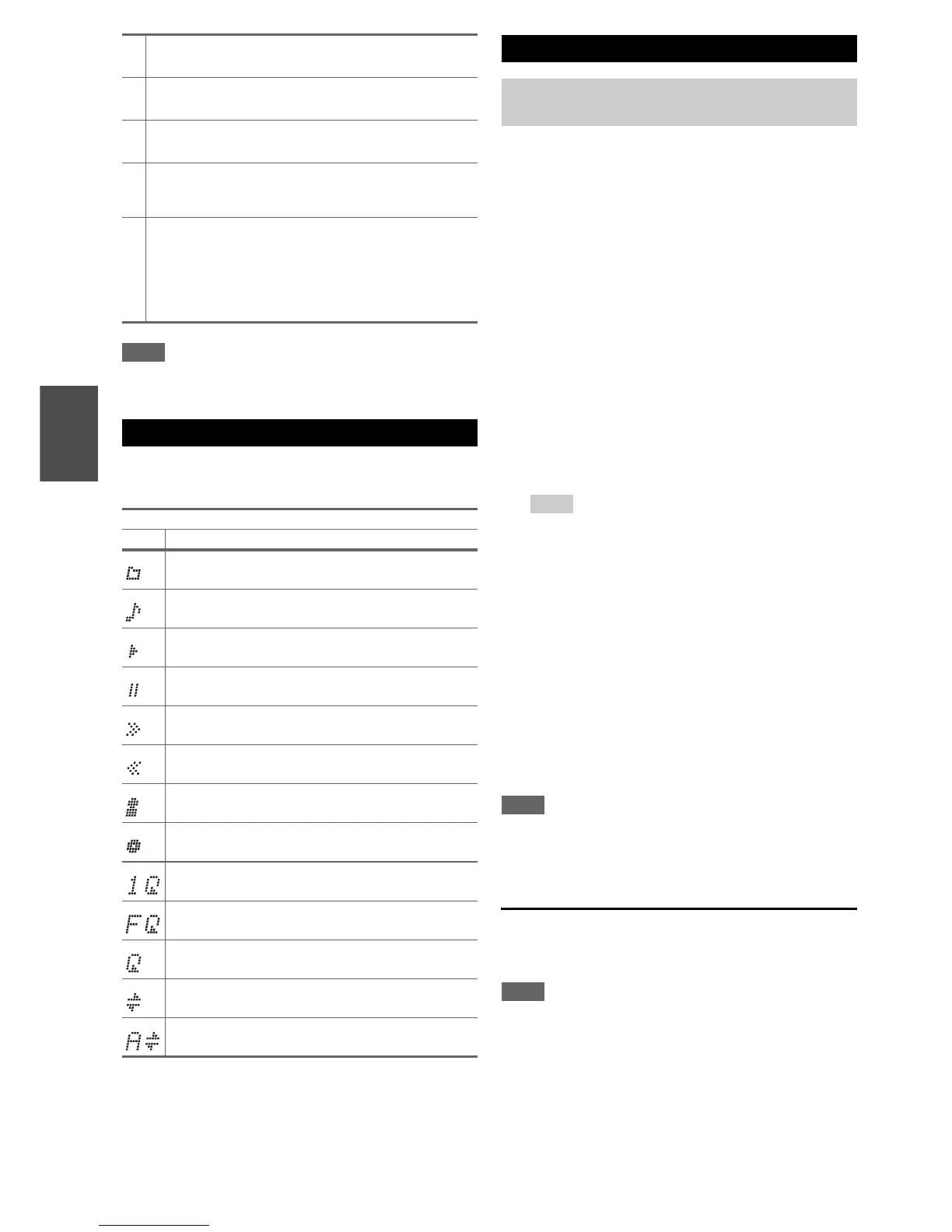

Page #20 background imageLoading...
Page #20 background image
20
En
Note
The buttons you can use will differ depending on the devices and
media used for playback.
This section describes icons that appear on the display
during media playback.
This section explains how to play music files on the
iPod/iPhone.
Compatible iPod/iPhone models
Made for:
iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic,
iPod with video, iPod nano (1st, 2nd, 3rd, 4th, 5th and 6th
generation), iPhone 4, iPhone 3GS, iPhone 3G, iPhone
Note
Do not disconnect the USB device or USB cable that comes with
iPod/iPhone to the USB port at the front of the AV receiver,
while the message “Connecting...” appears on the display.
Standard Mode control
The content information is not displayed on-screen, but
can be operated using the iPod/iPhone or the remote
controller (USB).
Note
The following iPod models are not supported in Standard Mode.
These iPod models can only be controlled in Extended Mode.
iPod with video
iPod nano (1st generation)
l
6
This button selects the next song.
m
4
This button fast-forwards the current song.
n
2
This button stops playback.
o
MODE
You can switch between Standard Mode and Extended
Mode during iPod/iPhone playback.
p
RANDOM
This button performs random playback. All of the songs in
the current folder will be played in random order. When all
of the songs in the folder have been played once, they’ll all
be played again in a different random order. To cancel
random playback, press this button again.
Understanding Icons on the Display
Displayed Icons
Icon Description
Folder
Track
Playback
Pause
Fast Forward
Fast Reverse
Artist
Album
Repeat One Track
Repeat Folder (USB Device)
Repeat
Shuffle
Shuffle Album (iPod/iPhone)
Playing iPod/iPhone via USB
The on-screen navigation menus appear only on a TV
that is connected to the HDMI OUT.
1
Press USB to select the “USB” input.
2
Connect the USB cable that comes with the
iPod/iPhone to the USB port at the front of the AV
receiver.
While reading the contents of your iPod/iPhone, the
message “Connecting...” appears on the display.
3
Press MODE to switch to Extended Mode.
A list of your iPod/iPhone model’s contents appears.
Use q/w to open a folder, and then press ENTER.
Tip
With the default settings, iPod/iPhone is operated in
Standard Mode.
Pressing MODE again switches back to Standard Mode.
When you disconnect the iPod/iPhone, the AV receiver
stores the mode. This means that if you disconnect when in
Extended Mode, the AV receiver will start in Extended
Mode when you next connect the iPod/iPhone.
You can also use the q/w, ENTER and TUNING MODE
buttons on the front panel. TUNING MODE allows you to
switch modes.
When connecting your iPod/iPhone with a USB cable, we
recommend you use an official USB cable from Apple Inc.
4
Use q/w to select a music file, and press ENTER or
1 to start playback.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo HT-S5400 and is the answer not in the manual?

Onkyo HT-S5400 Specifications

General IconGeneral
Disc types supportedNo
Optical disc player type-
Apple docking compatibilityiPhone, iPod
Audio decodersDolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
RMS rated power- W
Audio output channels7.1 channels
Audio formats supportedAAC, FLAC, MP3, WMA
Signal-to-Noise Ratio (SNR)100 dB
Total Harmonic Distortion (THD)0.08 %
FM radioYes
AM band range530 - 1710 kHz
FM band range87.5 - 108 MHz
Supported radio bandsAM, FM
Preset stations quantity40
Front speaker type2-way
Front speaker impedance6 Ω
Front speaker peak power130 W
Front speaker frequency range55 - 50000 Hz
Satellite speaker frequency range80 - 20000 Hz
Subwoofer peak power120 W
Subwoofer frequency range25 - 150 Hz
Product colorBlack
HDMI in4
USB version2.0
Audio (L/R) in6
Composite video in5
SCART ports quantity0
Number of HDMI outputs1
Component video (YPbPr/YCbCr) in2
AC input voltage220-240 V
AC input frequency50 - 60 Hz
Power consumption (typical)480 W
Package weight34000 g
Weight and Dimensions IconWeight and Dimensions
Main unit weight9000 g
Subwoofer weight10800 g
Center speaker weight2400 g
Satellite speaker weight1000 g
Main unit dimensions (WxDxH)435 x 328 x 150 mm
Subwoofer dimensions (WxDxH)317.5 x 398 x 463 mm
Front speaker dimensions (WxDxH)1550 x 170 x 375.5 mm
Center speaker dimensions (WxDxH)420 x 121 x 115 mm
Satellite speaker dimensions (WxDxH)115 x 96 x 230 mm
