Onkyo HT-S5400 User Manual

13
En

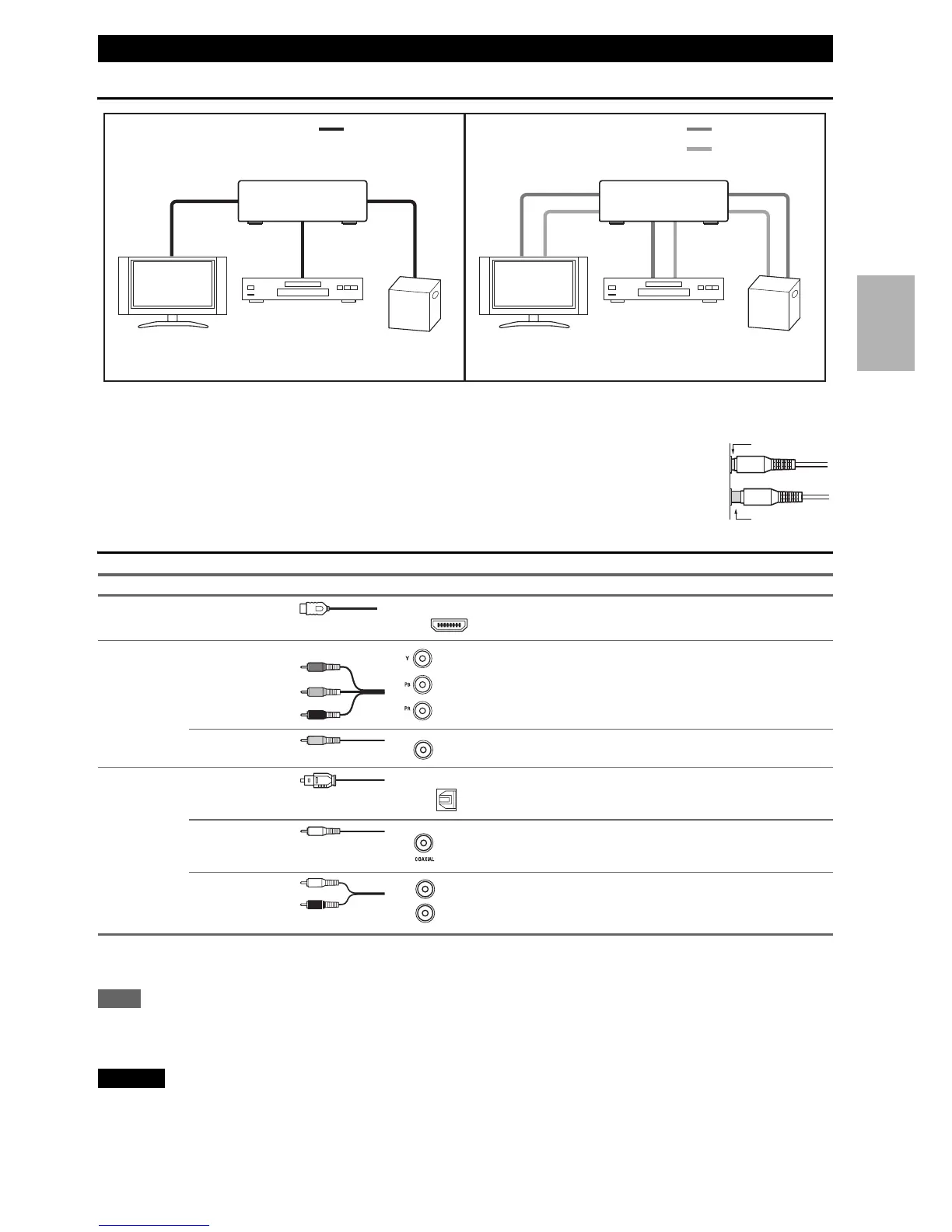

Connected image with AV components
• Before making any AV connections, read the manuals supplied with your AV components.
• Don’t connect the power cord until you’ve completed and double-checked all AV connections.
• Push plugs in all the way to make good connections (loose connections can cause noise or
malfunctions).
• To prevent interference, keep audio and video cables away from power cords and speaker cables.
AV Cables and Jacks
*
Available sampling rate for PCM input signal is 32/44.1/48/88.2/96 kHz. Even 176.4/192 kHz is effective in case of the HDMI
connection.
Note
• The AV receiver does not support SCART plugs.
• The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed.
Push plugs in all the way.
Caution
• To prevent shutter damage, hold the optical plug straight when inserting and removing.
About AV Connections
Signal Cable Jack Description
Video and
Audio
HDMI HDMI connections can carry digital video and audio.
Video Component video Component video separates the luminance (Y) and color
difference signals (P
B, PR), providing the best picture
quality (some TV manufacturers label their component
video sockets slightly differently).
Composite video Composite video is commonly used on TVs, VCRs, and
other video equipment.
Audio Optical digital
audio
Optical digital connections allow you to enjoy digital
sound such as PCM
*
, Dolby Digital or DTS. The audio
quality is the same as coaxial.
Coaxial digital
audio
Coaxial digital connections allow you to enjoy digital
sound such as PCM
*
, Dolby Digital or DTS. The audio
quality is the same as optical.
Analog audio
(RCA)
Analog audio connections (RCA) carry analog audio.
HDMI cable Other cables
: Video & Audio
: Video
: Audio
Game console
Blu-ray Disc/
DVD player
TV, projector, etc.
Game console
Blu-ray Disc/
DVD player
TV, projector, etc.
AV receiverAV receiver
Right!
Wrong!
HDMI
Y
P
B
PR
Green
Blue
Red
V
Yellow
OPTICAL
Orange
L
R
White
Red

Onkyo HT-S5400 Specifications

General

Disc types supported	No
Optical disc player type	-
Apple docking compatibility	iPhone, iPod
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
RMS rated power	- W
Audio output channels	7.1 channels
Audio formats supported	AAC, FLAC, MP3, WMA
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
FM radio	Yes
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speaker peak power	130 W
Front speaker frequency range	55 - 50000 Hz
Satellite speaker frequency range	80 - 20000 Hz
Subwoofer peak power	120 W
Subwoofer frequency range	25 - 150 Hz
Product color	Black
HDMI in	4
USB version	2.0
Audio (L/R) in	6
Composite video in	5
SCART ports quantity	0
Number of HDMI outputs	1
Component video (YPbPr/YCbCr) in	2
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	480 W
Package weight	34000 g

Weight and Dimensions

Main unit weight	9000 g
Subwoofer weight	10800 g
Center speaker weight	2400 g
Satellite speaker weight	1000 g
Main unit dimensions (WxDxH)	435 x 328 x 150 mm
Subwoofer dimensions (WxDxH)	317.5 x 398 x 463 mm
Front speaker dimensions (WxDxH)	1550 x 170 x 375.5 mm
Center speaker dimensions (WxDxH)	420 x 121 x 115 mm
Satellite speaker dimensions (WxDxH)	115 x 96 x 230 mm
