25
En
Note
• You can cancel Audyssey 2EQ Room Correction and Speaker
Setup at any point in this procedure simply by disconnecting the
setup microphone.
• Do not connect or disconnect any speakers during
Audyssey 2EQ Room Correction and Speaker Setup.
• If the AV receiver is muted, it will be unmuted automatically
when Audyssey 2EQ Room Correction and Speaker Setup
starts.
• Changes to the room after Audyssey 2EQ Room Correction and
Speaker Setup require you run Audyssey 2EQ Room Correction
and Speaker Setup again, as room EQ characteristics may have
changed.
1
Turn on the AV receiver and the connected TV.
On the TV, select the input to which the AV receiver
is connected.
2

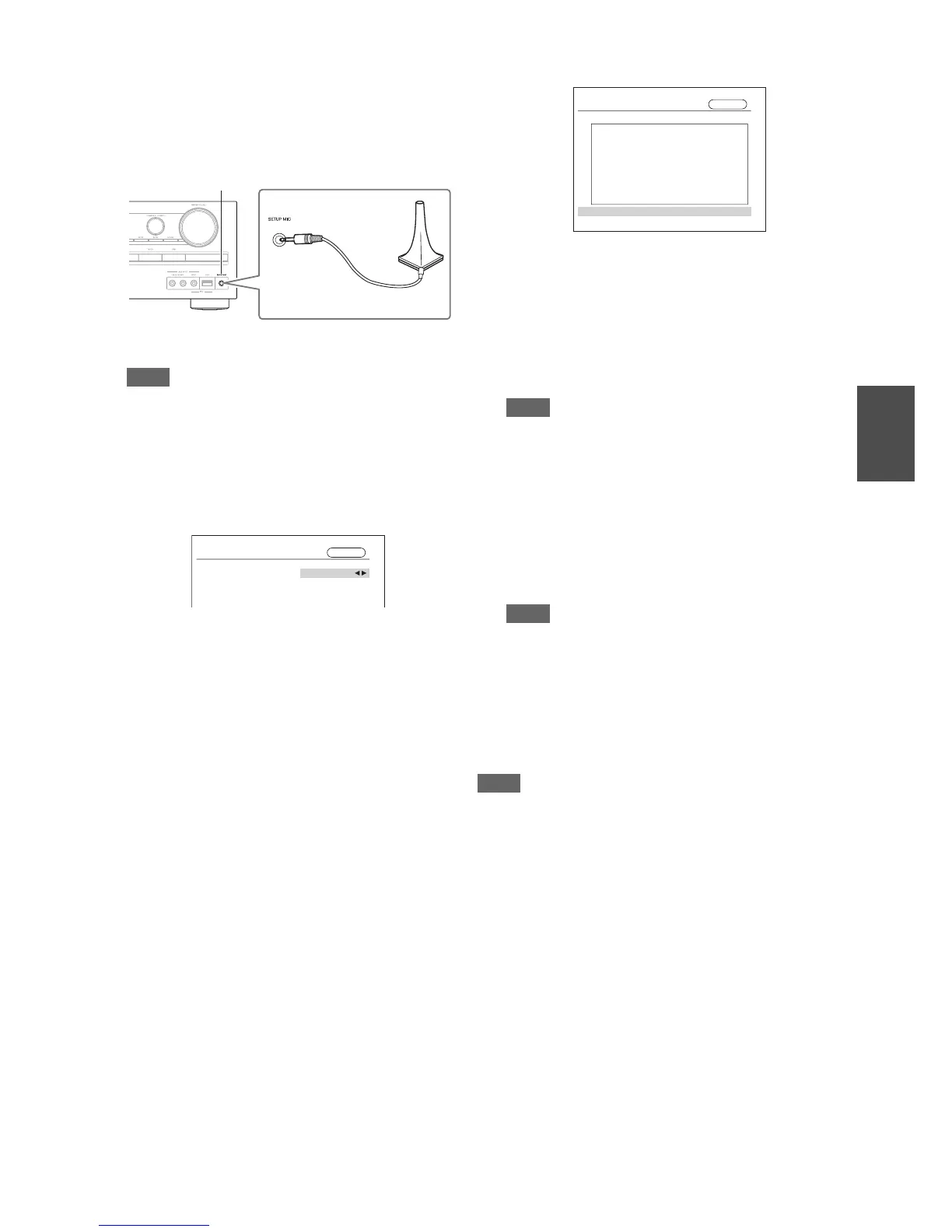

Set the speaker setup microphone at the Main
Listening Position a, and connect it to the SETUP
MIC jack.
The speaker setting menu appears.
Note
• The on-screen setup menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected to
the MONITOR OUT V or the COMPONENT VIDEO
OUT, use the AV receiver’s display when changing
settings.
3
When you’ve finished making the settings, press
ENTER.
Perform the “Sp Config (Speaker Configuration)”
according to your speaker configuration:
–“SurrBk/FrontHigh” (➔ page 36)
4
Use q/w to select “Audyssey Quick Start” or
“Audyssey 2EQ Full Calibration”.
5
Press ENTER.
Audyssey 2EQ
®
Room Correction and Speaker Setup
starts.
Test tones are played through each speaker as
Audyssey 2EQ Room Correction and Speaker Setup
runs. This process takes a few minutes. Please
refrain from talking during measurements and do
not stand between speakers and the microphone.
Do not disconnect the speaker setup microphone
during Audyssey 2EQ Room Correction and Speaker
Setup, unless you want to cancel the setup.
If you select “Audyssey Quick Start”, you will go to
step 8.
6
Place the setup microphone at the next position,
and then press ENTER.
Audyssey 2EQ performs more measurements. This
takes a few minutes.
7
When prompted, place the setup microphone at
the next position, and repeat step 6.
Speaker setup microphone
SETUP MIC jack
2EQ: Auto Setup
Audyssey
SurrBk/FrontHigh SurrBack
8
Use q/w to select an option, and then press
ENTER.
The options are:
` Save:
Save the calculated settings and exit
Audyssey 2EQ Room Correction and Speaker
Setup.
` Cancel:
Cancel Audyssey 2EQ Room Correction and
Speaker Setup.
Note
• You can view the calculated settings for the speaker
configuration, speaker distances, and speaker levels by
using e/r.
9
Use q/w to select a target, and use e/r to change
the setting.
After the results of Audyssey 2EQ have been saved,
the menu will display the “Audyssey” (➔ page 39),
“Dynamic EQ” (➔ page 39), “Dynamic Volume”
(➔ page 39) settings.
Note
•When “Audyssey Quick Start” has been used for
measurement, “Audyssey” cannot be selected.
• These settings are applied to all input selectors.
10
Press ENTER.
11
Disconnect the speaker setup microphone.
Subwoofer : Yes
Front : Small
Center : Small
Surround : Small
Front High : None
Surr Back : Small
Surr Back Ch : 2ch
Crossover : 100Hz
Save
Cancel
2EQ: Auto Setup
Audyssey
<- Review Speaker Configuration ->
To Next Page
