Onkyo HT-S5400 User Manual

46
En
✔: Available buttons
Note
• With some iPod/iPhone models and generations, certain buttons may not work as expected.
• For detailed operation of the iPod/iPhone, please refer to the instruction manual.
*1
This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Your iPod/iPhone may not respond the first time you
press this button, in which case you should press it again.
This is because the remote controller transmits the On and Standby commands alternately, so if your iPod/iPhone is already on, it
will remain on when the remote controller transmits an On command.
Similarly, if your iPod/iPhone is already off, it will remain off when the remote controller transmits an Off command.
*2
TOP MENU works as a Mode button when used with a DS-A2 RI Dock.
*3
DISPLAY turns on backlight for 30 seconds.
*4
Resume mode
With the Resume function, you can resume playback of the song that was playing when you removed your iPod/iPhone from the RI
Dock or changed the OSD mode to Off.
b
c
a
f
d
e
g
i
h
k
j

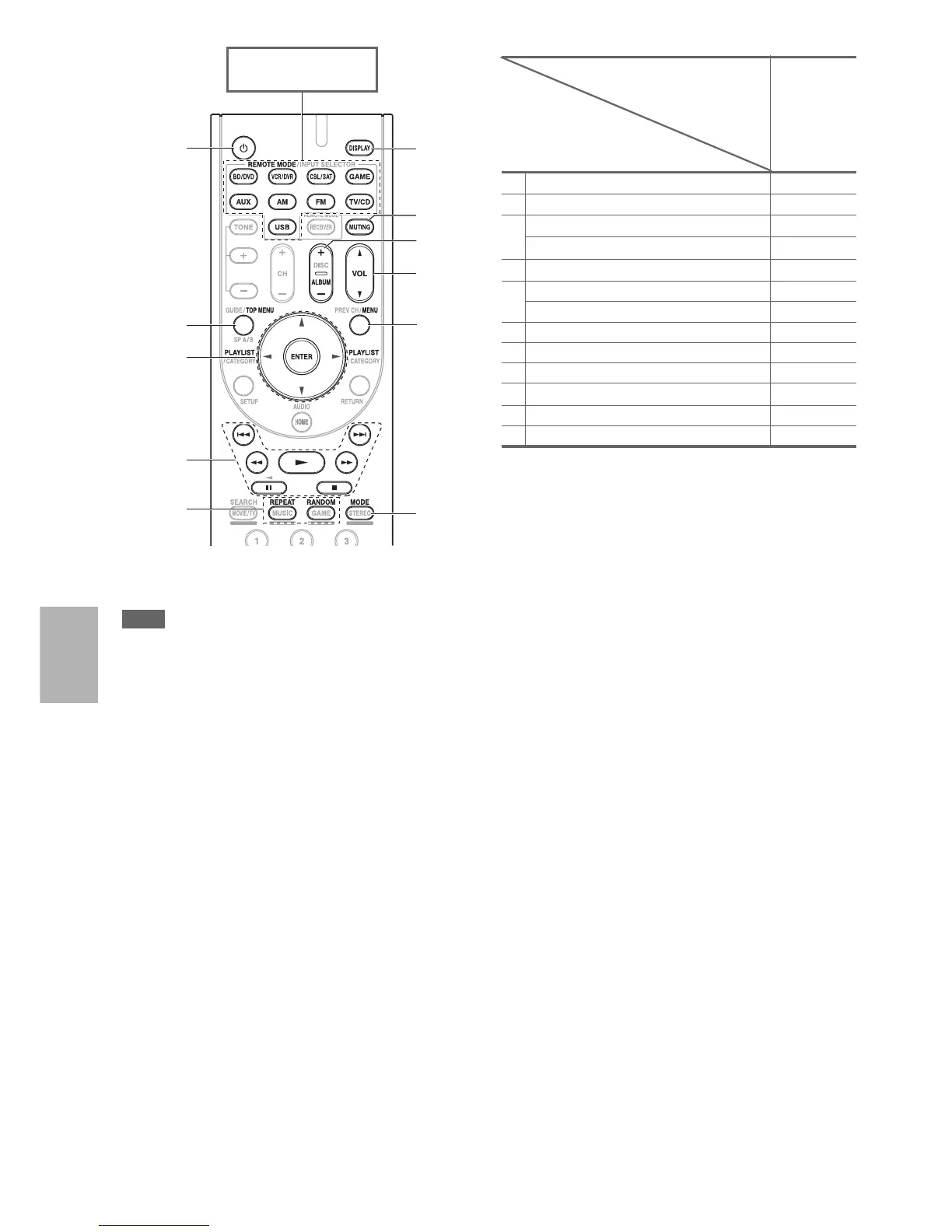

Press the appropriate
REMOTE MODE first.
u Dock
a 8
*1
✔
b
TOP MENU
*2
✔
c q/w/e/r, ENTER
✔
PLAYLIST e/r
✔
d 1, 3, 2, 5, 4, 7, 6
✔
e
REPEAT ✔
RANDOM ✔
f
DISPLAY
*3
✔
g
MUTING ✔
h
ALBUM +/– ✔
i VOL q/w
✔
j
MENU ✔
k
MODE
*4
✔
Onkyo Dock
Buttons

Onkyo HT-S5400 Specifications

General

Disc types supported	No
Optical disc player type	-
Apple docking compatibility	iPhone, iPod
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
RMS rated power	- W
Audio output channels	7.1 channels
Audio formats supported	AAC, FLAC, MP3, WMA
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
FM radio	Yes
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speaker peak power	130 W
Front speaker frequency range	55 - 50000 Hz
Satellite speaker frequency range	80 - 20000 Hz
Subwoofer peak power	120 W
Subwoofer frequency range	25 - 150 Hz
Product color	Black
HDMI in	4
USB version	2.0
Audio (L/R) in	6
Composite video in	5
SCART ports quantity	0
Number of HDMI outputs	1
Component video (YPbPr/YCbCr) in	2
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	480 W
Package weight	34000 g

Weight and Dimensions

Main unit weight	9000 g
Subwoofer weight	10800 g
Center speaker weight	2400 g
Satellite speaker weight	1000 g
Main unit dimensions (WxDxH)	435 x 328 x 150 mm
Subwoofer dimensions (WxDxH)	317.5 x 398 x 463 mm
Front speaker dimensions (WxDxH)	1550 x 170 x 375.5 mm
Center speaker dimensions (WxDxH)	420 x 121 x 115 mm
Satellite speaker dimensions (WxDxH)	115 x 96 x 230 mm
