Onkyo P-3000R User Manual

13
En
a GND screw
This screw is for connecting a turntable’s ground wire.
b PHONO IN L/R jacks
These analog audio inputs are for connecting a
turntable (MM).
c CD IN L/R jacks
These analog audio inputs are for connecting a
compact disc player.
d LINE 1/2 IN L/R jacks
These analog audio inputs are for connecting a
playback device.
To input audio output (preout) to the preamplifier
from the AV receiver, set “L2 OUT” to
“THROUGH”. The PRE OUT output of the
preamplifier is fixed at 0 dB.
You can output the audio signal coming from LINE 2
with a fixed volume (➔ 35).
e TAPE IN (LINE 3 IN) and TAPE OUT (LINE OUT)
jacks
These analog audio inputs and outputs are for
connecting a cassette tape deck.
f PRE OUT 1/2 L/R jacks
These outputs are for connecting a power amplifier.
g u REMOTE CONTROL jack
This u (Remote Interactive) jack can be connected
to an u jack on an Onkyo Dock. The preamplifier’s
remote controller can then be used to control the
Onkyo Dock.
To use u, you must make an audio connection
between the preamplifier and the Onkyo Dock. Other
Onkyo components cannot be controlled via u.
h 12V TRIGGER OUT jack
This output can be connected to the 12-volt trigger
inputs on the power amplifier.
i DIGITAL AES/EBU IN jack
This balanced AES/EBU input is for connecting a
component with balanced AES/EBU output, such as
compact disc players.
j DIGITAL COAXIAL IN 1/2 jacks
These coaxial digital audio inputs are for connecting
components with coaxial digital audio outputs, such as
compact disc players.
k DIGITAL OPTICAL IN 1/2 jacks
These optical digital audio inputs are for connecting
components with optical digital audio outputs, such as
compact disc players.
l DIGITAL OPTICAL OUT jack
This optical digital audio output is for connecting an
AV receiver.
Digital input signals are put through and output on this
preamplifier as is.
m USB port
A PC can be connected here and the music can be
played through the preamplifier.
n AC INLET
The supplied power cord is connected here. The other
end of the power cord should be connected to a
suitable wall outlet.

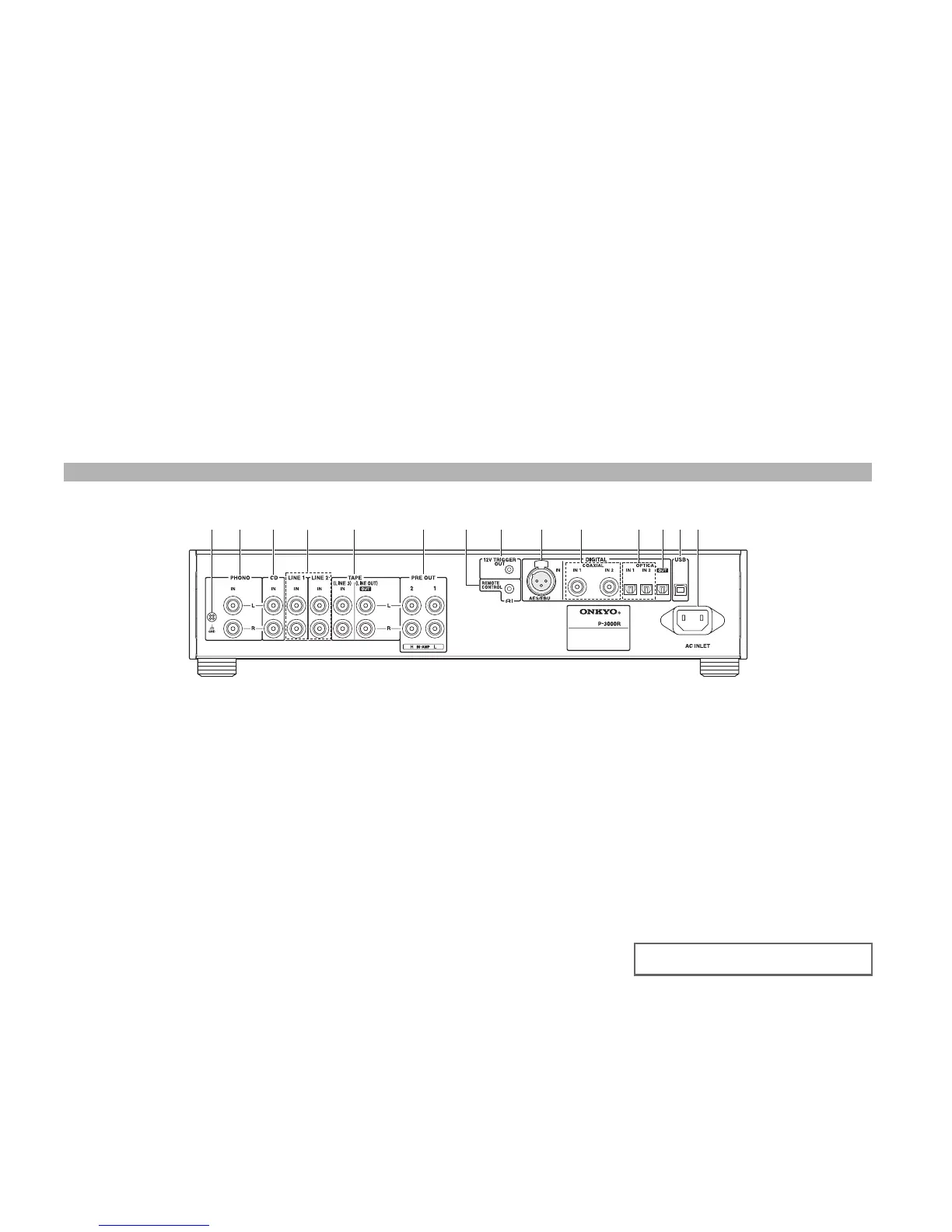

Rear Panel
ab
e
l
g
d
i
m
n
h
j
k
c
f
See “Connections” for connection information
(➔ 15 to 24).

Onkyo P-3000R Specifications

General

Output level	0.001 mV
Amplifier class	-
Frequency range	5 - 100000 Hz
Output impedance	330 Ω
Input sensitivity	200 mV
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.005 %
AC (power) in	Yes
Audio (L/R) in	5
USB 2.0 ports quantity	1
Digital audio optical in	2
Speakers connectivity type	RCA
Purpose	Home
Product color	Silver
Volume control	Rotary
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	29 W
Package weight	12500 g

Weight and Dimensions

Depth	333.1 mm
Width	435 mm
Height	99 mm
Weight	11000 g
