Onkyo P-3000R User Manual

19
En
Remove the short pins plugged into the jacks before connecting a turntable to the PHONO
inputs.
Tip
• If your turntable (MM) has a phono built-in preamp, you can connect to other analog inputs such as CD
IN or LINE 1 IN.
• If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head
amp or MC transformer to connect to PHONO IN. See your turntable’s manual for details.
• If your turntable has a ground wire, connect it to GND screw. With some turntables, connecting the
ground wire may produce an audible hum. If this happens, disconnect it.
Note
•Set “LINEOUT” setting to “RECOUT” (➔ 34).
• When connecting a player recorder to TAPE IN (LINE 3 IN) and TAPE OUT (LINE OUT), always
change the “LINEOUT” setting to the “RECOUT” (➔ 34).

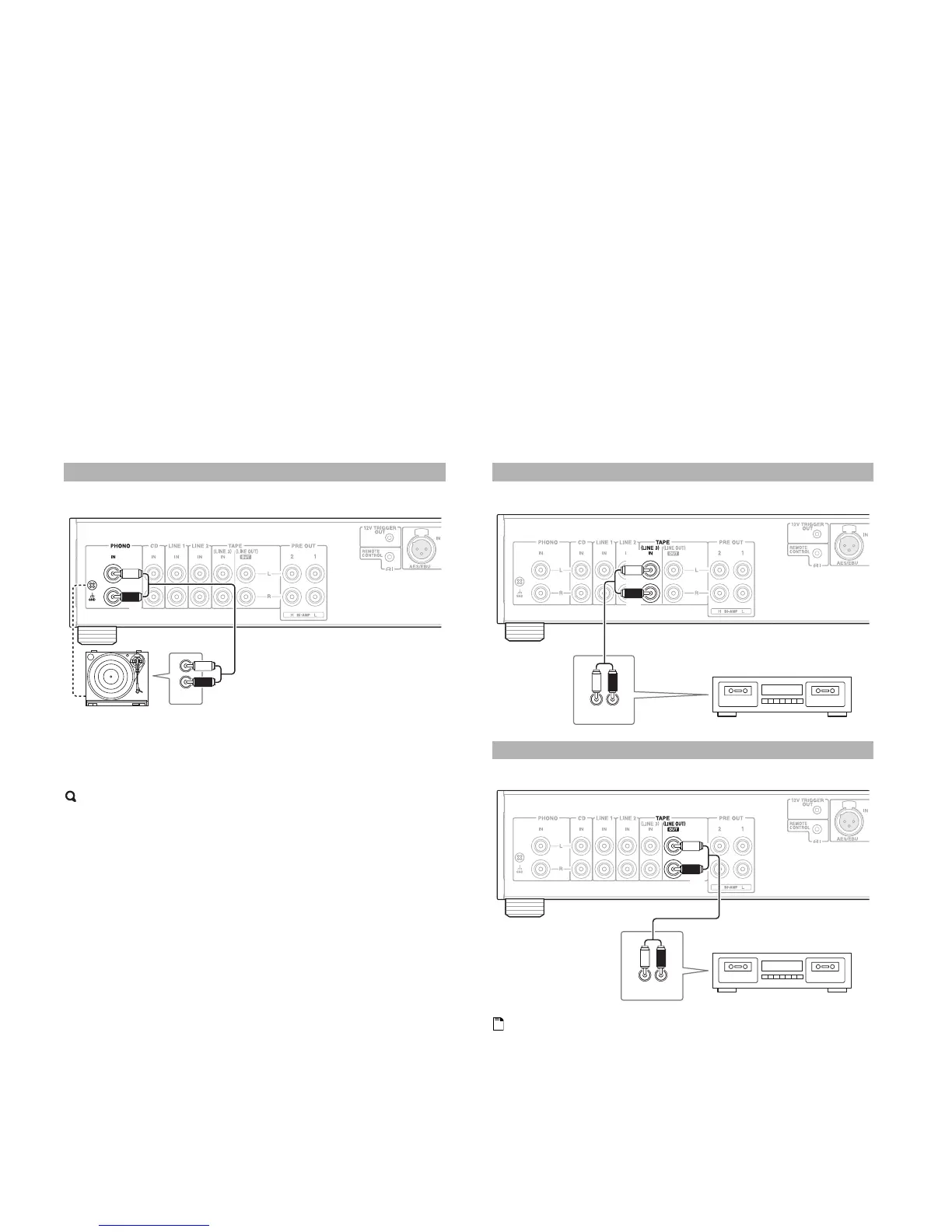

Connecting a Turntable
L
R
AUDIO
OUTPUT
L
R
Turntable (MM) without a
built-in phono preamp
Preamplifier P-3000R
Connecting a Cassette Tape Deck
Connecting a Recording Component
L
R
AUDIO
OUT
L R
Preamplifier P-3000R
Cassette tape deck
L
R
AUDIO
IN
L R
Preamplifier P-3000R
Cassette tape deck
