Onkyo P-3000R User Manual

15
En
Connections
Connections
Note
• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).
• To prevent interference, keep audio cables away from power cords and speaker cables.
• The preamplifier’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.
• To prevent shutter damage, hold the optical plug straight when inserting and removing.
• The analog audio cable can be used instead of the coaxial cable.
Plugging the AES/EBU cable
Match the pins and insert the terminal until you hear a “click.” Make sure that the terminal is
locked by lightly pulling the connection cable.
Unplugging the AES/EBU cable
Pull out the connection cable while holding down the lever.

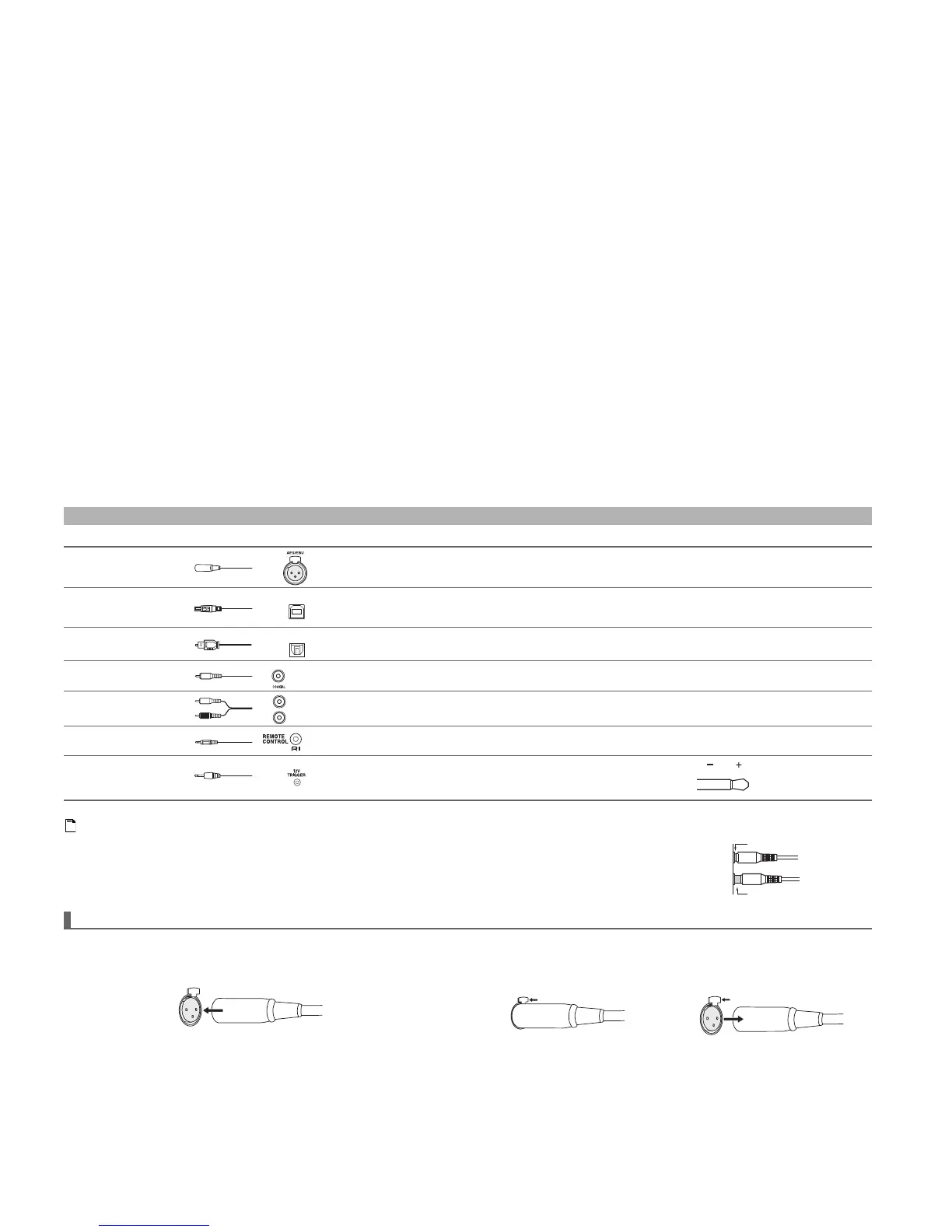

Cable and Jacks
Balanced AES/EBU This is a professional digital audio interface. Balanced AES/EBU cables are used for better noise immunity and longer cable runs. The maximum
sampling rate for PCM input is 192 kHz/24 bit, 2ch.
USB digital audio USB digital connections allow you to enjoy digital sound. The preamplifier supports high-speed USB 2.0. Use Type A-B USB cable. The maximum
sampling rate for PCM input is 192 kHz/32 bit, 2ch.
Optical digital audio Optical digital connections allow you to enjoy digital sound such as PCM. The maximum sampling rate for PCM input is 96 kHz/24 bit, 2ch. Input
and output jacks are provided.
Coaxial digital audio Coaxial digital connections allow you to enjoy digital sound such as PCM. The maximum sampling rate for PCM input is 192 kHz/24 bit, 2ch.
Analog audio (RCA) Analog audio connections (RCA) carry analog audio.
u To use u (Remote Interactive), you must make an audio connection between the preamplifier and the Onkyo Dock.
Mono mini-plug Use the supplied or commercially available mono mini-plug cable to connect to the 12V
trigger terminals on the other device for linked operation.
The tip polarity of the connectors are as shown in the right.
About Balanced Input (AES/EBU Jack)
USB
OPTICAL
Orange
L
R
White
Red
12 volts positive tip
polarity
Right!
Wrong!
12
Push
Push

Onkyo P-3000R Specifications

General

Output level	0.001 mV
Amplifier class	-
Frequency range	5 - 100000 Hz
Output impedance	330 Ω
Input sensitivity	200 mV
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.005 %
AC (power) in	Yes
Audio (L/R) in	5
USB 2.0 ports quantity	1
Digital audio optical in	2
Speakers connectivity type	RCA
Purpose	Home
Product color	Silver
Volume control	Rotary
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	29 W
Package weight	12500 g

Weight and Dimensions

Depth	333.1 mm
Width	435 mm
Height	99 mm
Weight	11000 g
