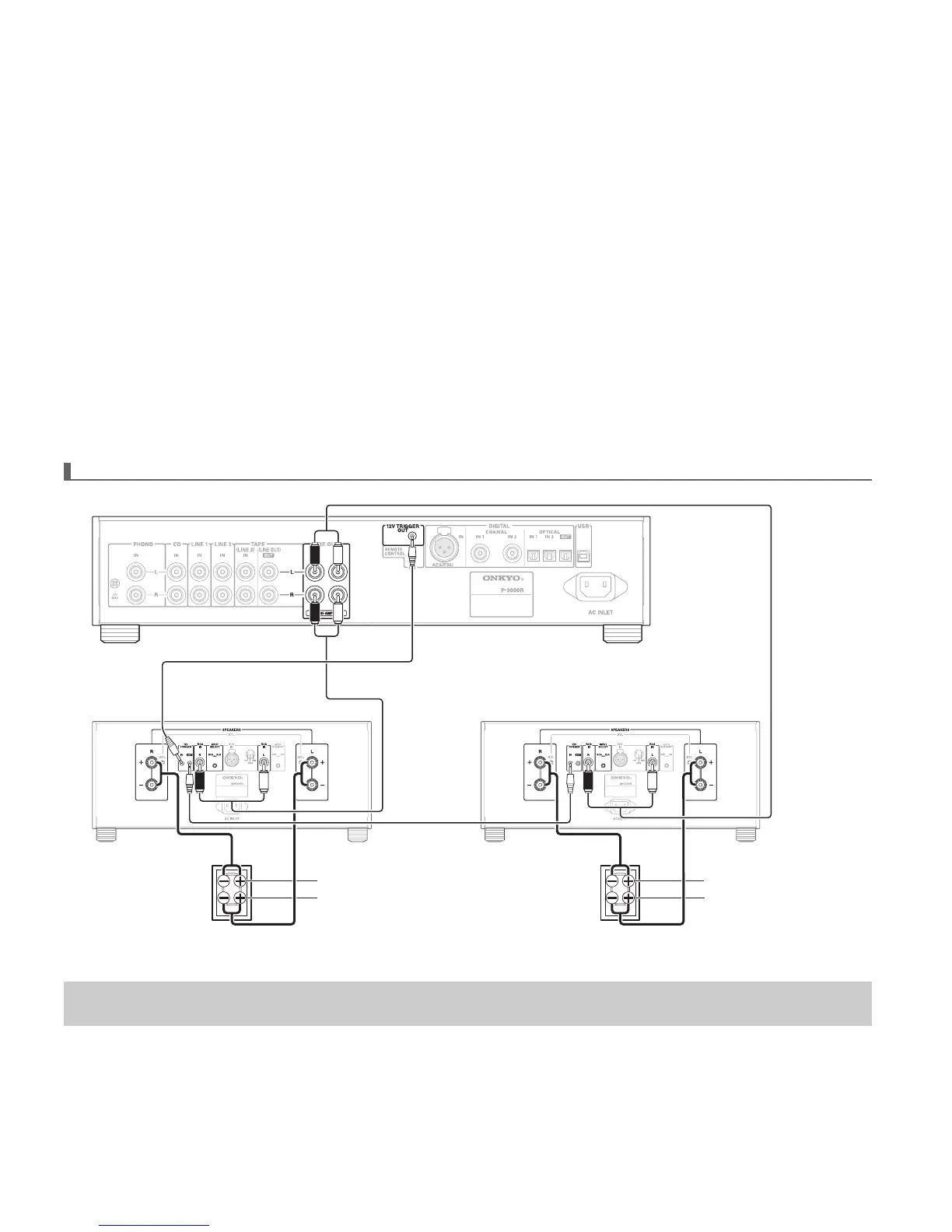

This is an example of the bi-amping connection using the power amplifier M-5000R.
Bi-amping Connection
Important:
• When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.
• Bi-amping can be used only with speakers that support bi-amping. Refer to your speaker manual.
Preamplifier P-3000R
Power Amplifier
M-5000R
Right speaker
Tweeter (high)
Woofer (low)
Left speaker
Tweeter (high)
Woofer (low)
Power Amplifier
M-5000R

Onkyo P-3000R Specifications

General

Output level	0.001 mV
Amplifier class	-
Frequency range	5 - 100000 Hz
Output impedance	330 Ω
Input sensitivity	200 mV
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.005 %
AC (power) in	Yes
Audio (L/R) in	5
USB 2.0 ports quantity	1
Digital audio optical in	2
Speakers connectivity type	RCA
Purpose	Home
Product color	Silver
Volume control	Rotary
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	29 W
Package weight	12500 g

Weight and Dimensions

Depth	333.1 mm
Width	435 mm
Height	99 mm
Weight	11000 g
