OnRobot RG6 - Power Supply

Installation
25

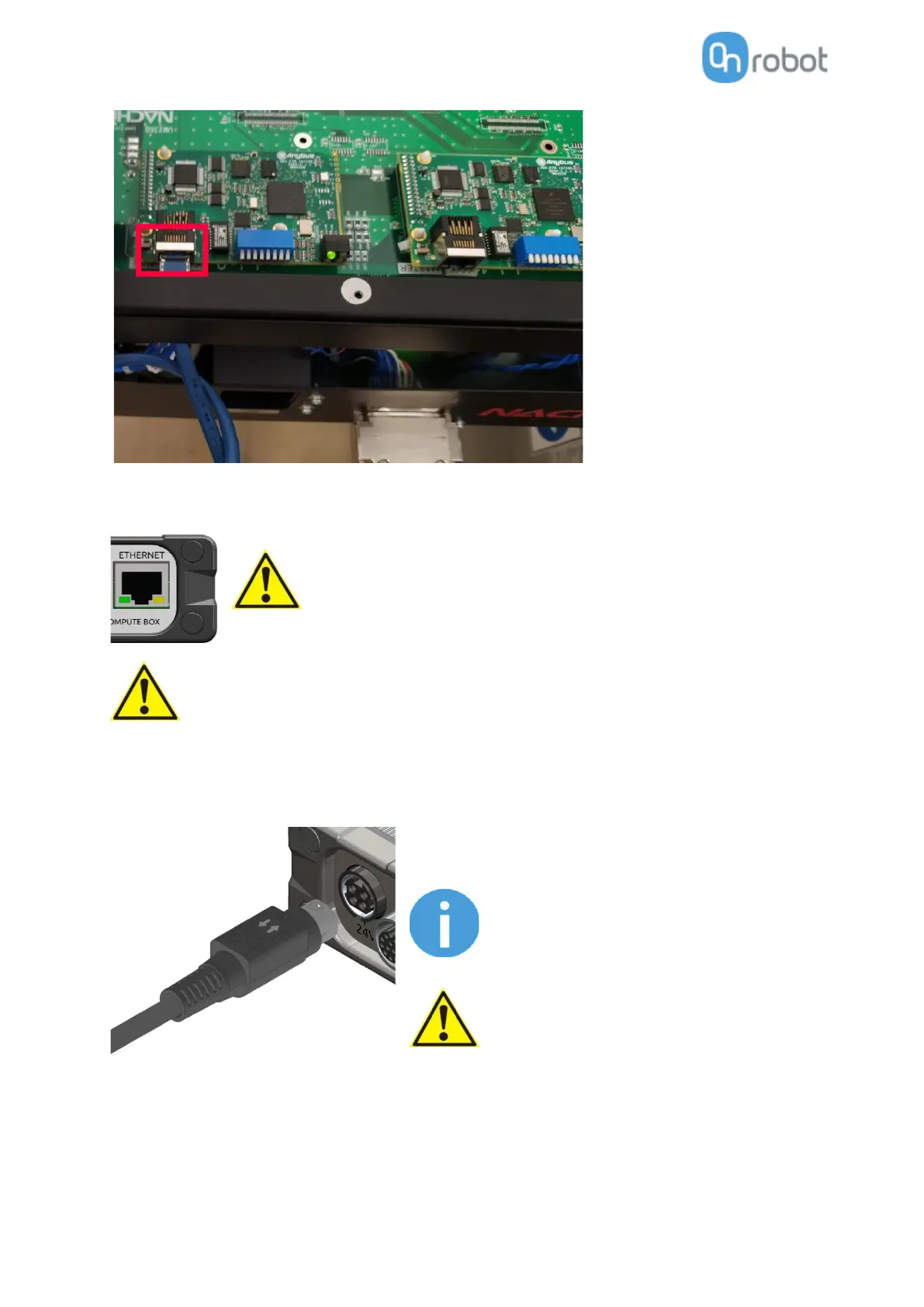

The illustrated EtherNet/IP card is an Anybus ABS-ETN 10/100 card.
Connect the other end of the supplied cable to the Compute Box's ETHERNET connector.
CAUTION:
Use only shielded, maximum 3m long Ethernet cables.
WARNING:
Check and make sure that the Compute Box enclosure (metal) and the
robot controller enclosure (metal) are not connected (no galvanic
connection between the two).
4.3.3 Power supply
Connect the supplied power supply to the Compute Box 24V
connector.
NOTE:
To disconnect the power connector, make
sure to pull the connector housing (where the
arrows are shown) and not the cable.
CAUTION:
Use only original OnRobot power supplies.
Finally, power up the power supply that will power the Compute Box and the connected Tool(s).
