Installation
50

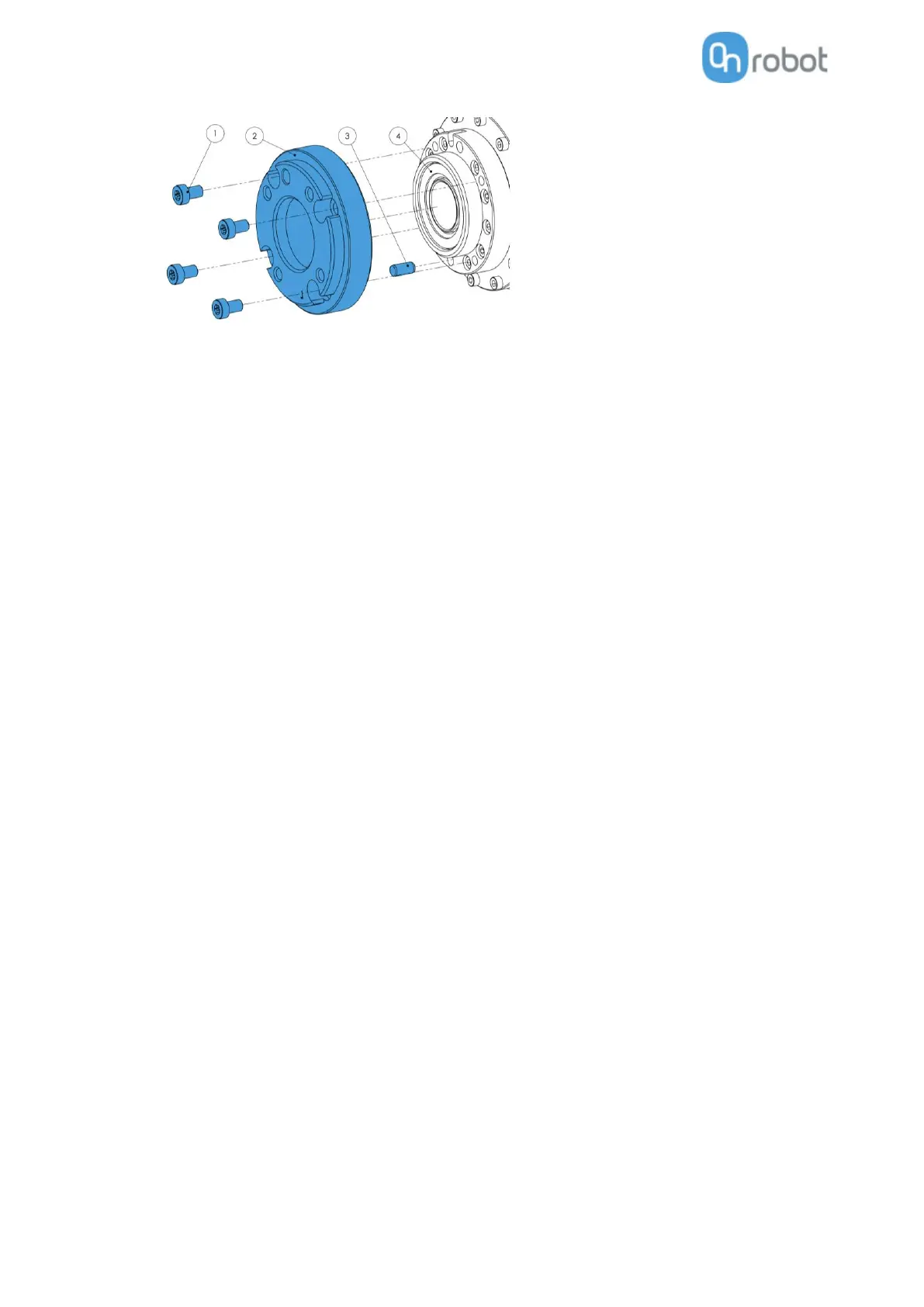

Adapter J
1
M5x8 screws (ISO14580 A4-
70)
2
OnRobot adapter flange
(ISO940-1-50-4-M6)
3
Dowel pin Ø6x8 (ISO2338 h8)
4
Robot tool flange
Use 5 Nm tightening torque.
