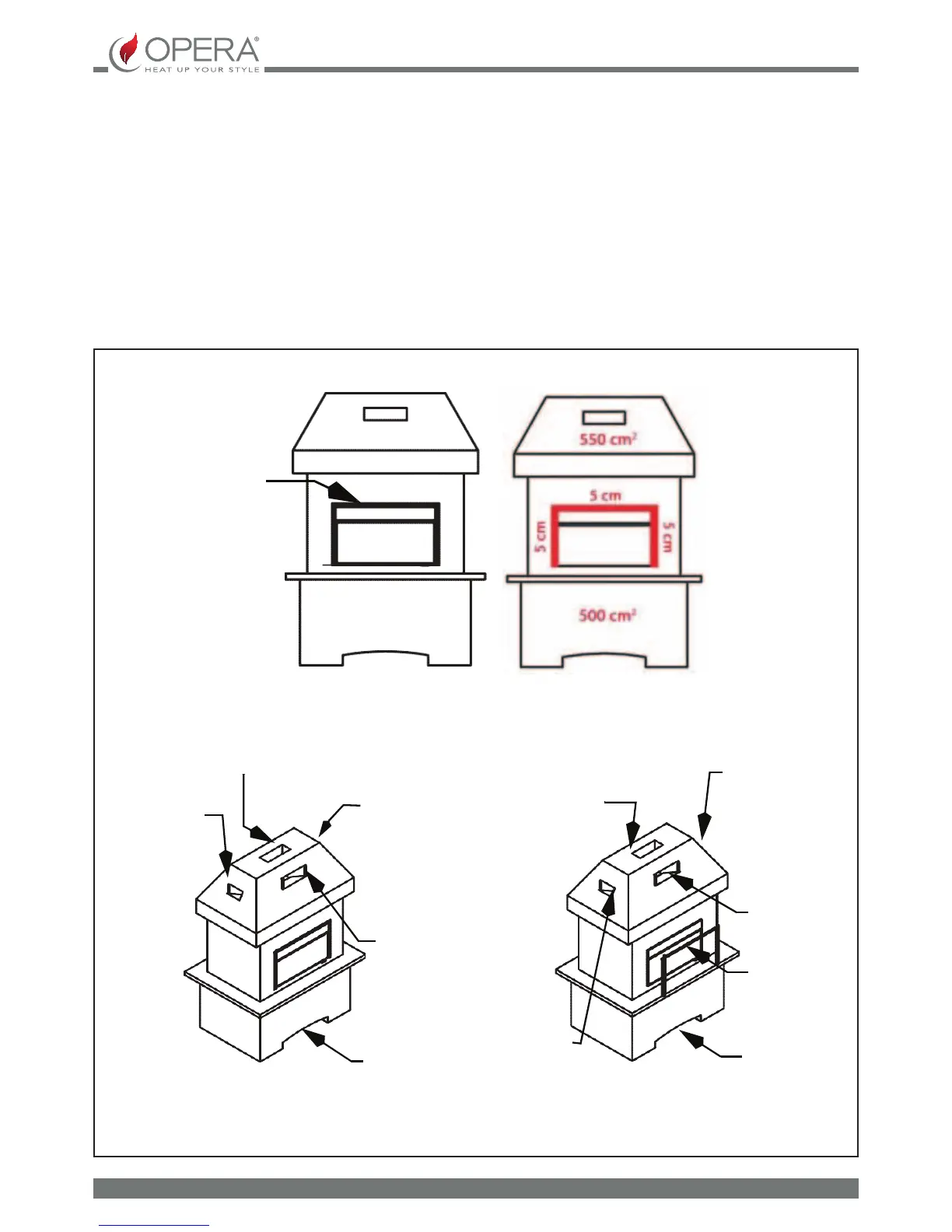

MEASUREMENTS NECESSARY FOR CORRECT INSTALLATION
Lower part of the chimney vent: minimum opening 500 cm²;
Upper part of the chimney vent: minimum opening 550 cm².
In front view, 5 cm of free volume must be guaranteed on the 3 LH, RH and upper sides.
For aesthetic reasons, these areas are masked via:
Frames (protection) provided along with the insert
Q-Vision aesthetic frame provided on request (dierent dimensional and aesthetic variants) for ad hoc installation (e.g. on
the wall made-to-measure in plasterboard).
Stove/insert vent opening
Frame
Hot air outlet
Hot air outlet
Hot air outlet
Hot air outlet
Frame
Hot air outlet
Hot air outlet
Cold air inlet
Cold air
inlet
Hot air outlet
