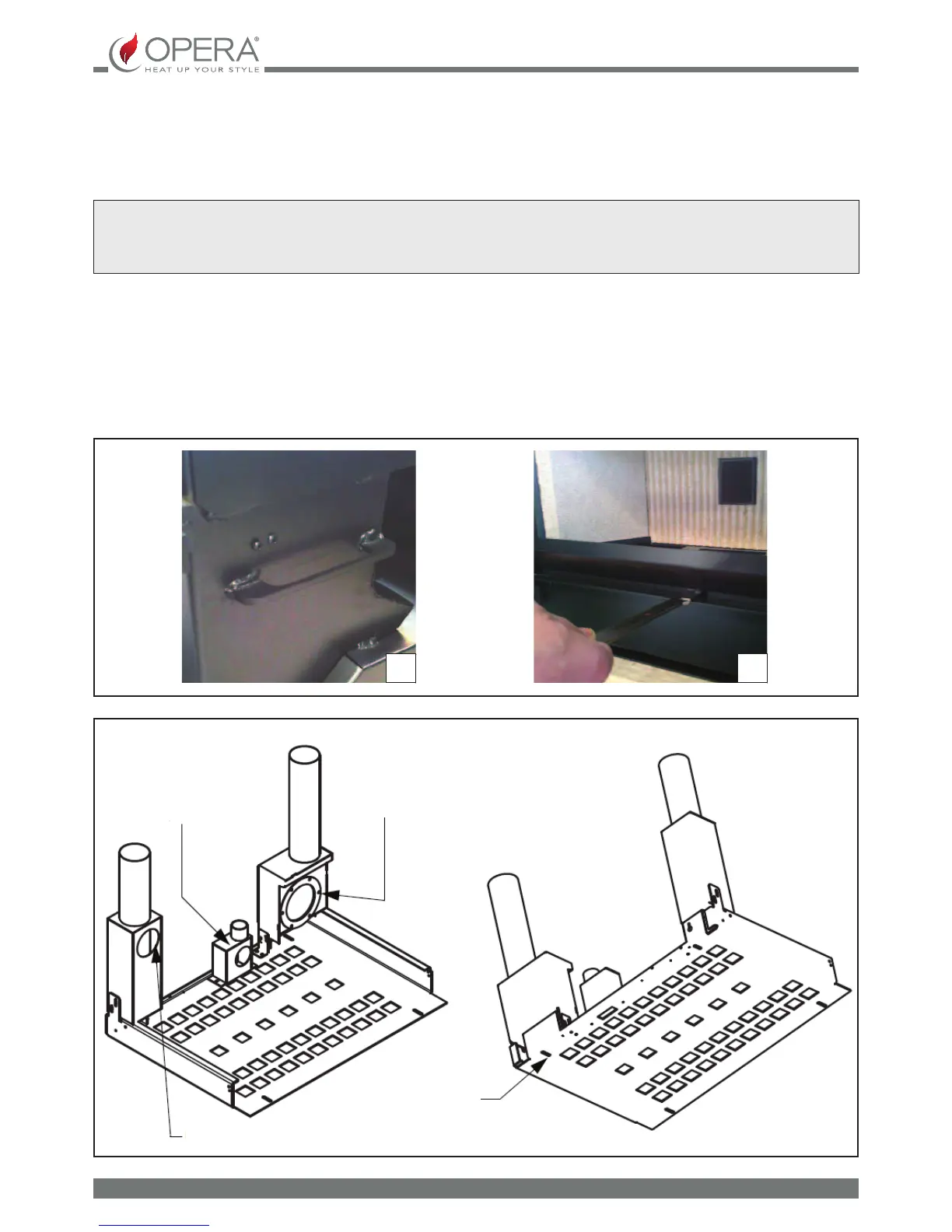

Smoke exhaust outlet
Inlet box
primary air
Slot for xing
base
Ducted air box outlet
Figure 3
ASSEMBLY WITH SLIDING BASE
Take the sliding base and position it in the existing chimney. Using a piece of chalk or pen, mark the base blocking holes on the
surface of the chimney. Make holes for the 8 mm steel expansion plugs.
Make a 60 mm hole in correspondence with the air vent.
ATTENTION
The air vent must be made outside the chimney because it must not take in overheated air.
Envision an air vent in the rear of the insert in a way that the plug is accessible once installation has been carried out.
Fix the base via the locking screws. Create the connection of the smoke exhaust and the vent respecting the points described
previously.
Lift the insert via the relative handles on the sides (see Figure below A), tilt it in a way that the wheels insert inside the relative
tracks, slide it until the smoke auger coupling is completely inserted into the smoke conveyor box.
