Falcon User Manual - Remittance Processing - OPEX Corporation
Touchscreen Monitor
Calibrating the monitor
The Falcon uses an HP Touch Screen Monitor (Opex # 2887800). This LED
backlit touchscreen 21.5 inch monitor features a 3-sensor optical touchscreen,
and is calibrated for its touch sensitivity before it leaves Opex. However, you
may need to recalibrate, especially if it is in use for an extended period of time.
To calibrate the monitor
1 The monitor must be kept clean to operate properly. Use canned air to blow
off dust and debris, especially along the edges and seams in the encircled
areas as highlighted in Figure 21.

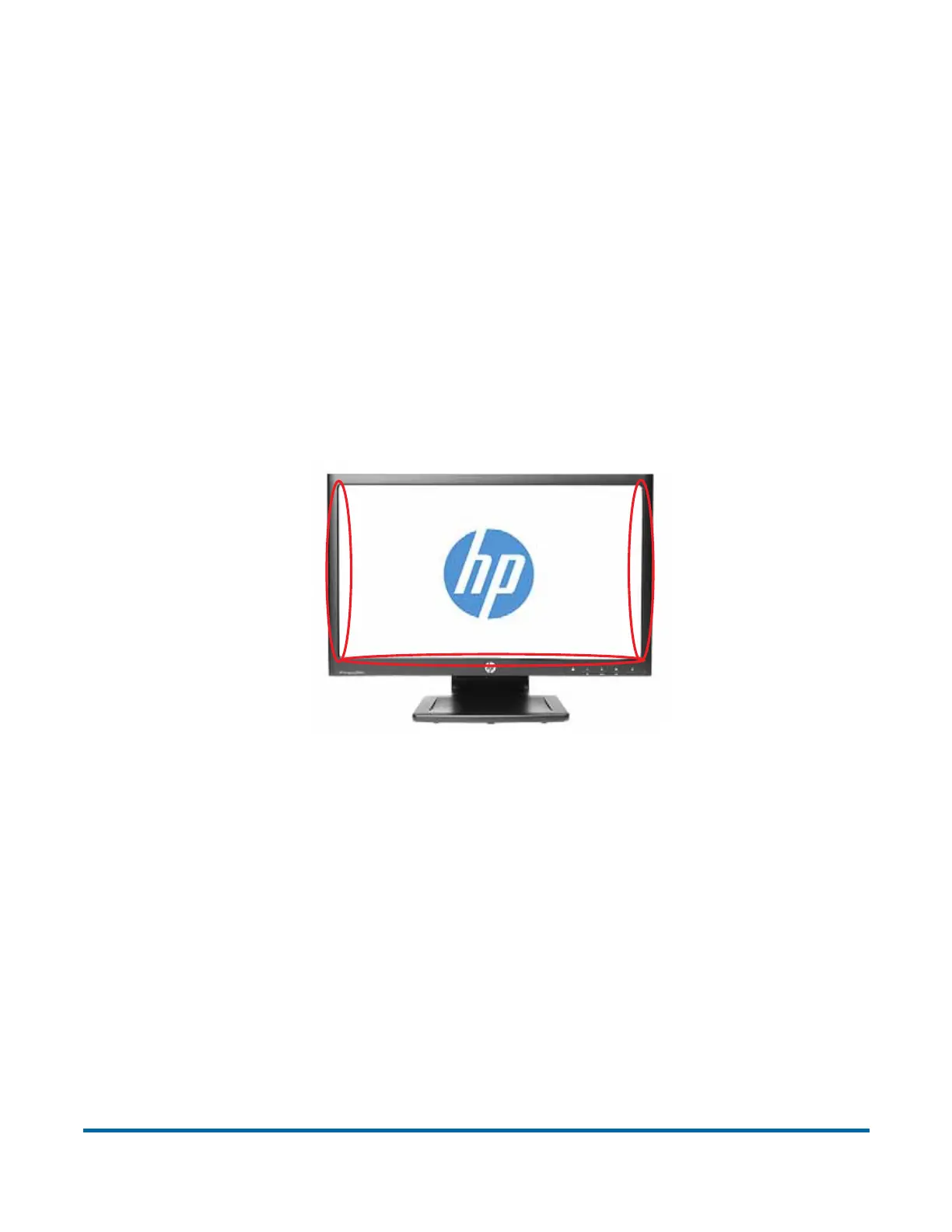

Figure 21: Touchscreen monitor
2 Make sure the USB cable is connected from the computer to the monitor.
3 Select Start > Control Panel > Tablet PC Settings.
Note: The Tablet PC Settings control panel will only appear after Microsoft
Windows 7 recognizes a connected touch monitor.
4 On the Display tab in the Tablet PC Settings window, select the name of the
monitor you want to calibrate from the drop-down menu.
