Oppo BDP-103D - Connecting to Two Tvs Via HDMI

INSTALLATION
14

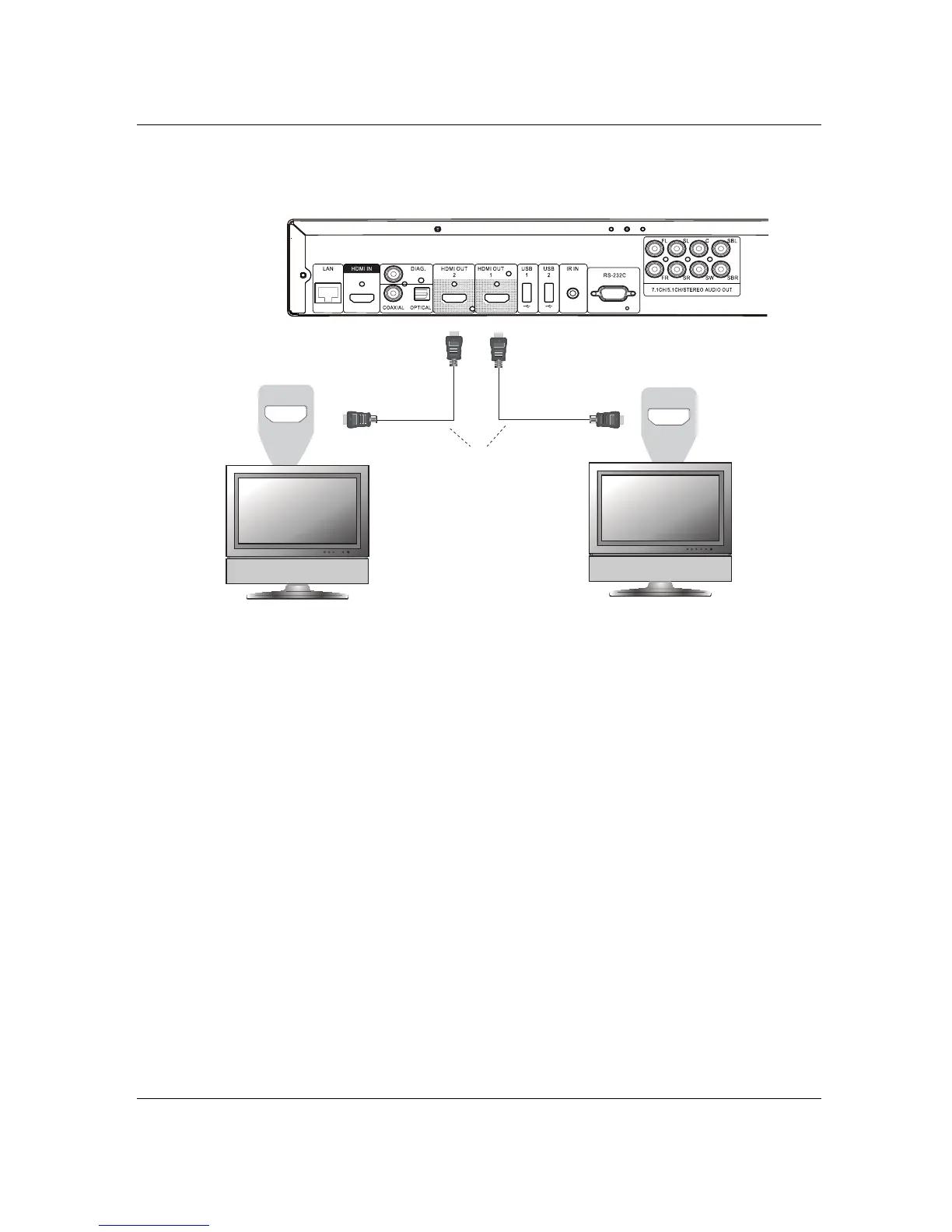

Connecting to Two TVs via HDMI
HDMI In
HDMI In
Rear Panel
HDMI Cables
TV 1
TV 2
x
x We recommend that you connect your main TV (the one with larger screen size or the one that you
would watch more often) to HDMI 1 OUT in order to benefit from the dedicated video processor, and
set the Dual HDMI option in the Setup Menu to Dual Display to make sure that the HDMI 2 OUT can
also send out audio an
d video signals (see more details on page 53).
x You may connect the DIAG (diagnostic) output to one of your TVs for troubleshooting purposes.
Refer to page 13 for more details.
TThe two HDMI outputs (HDMI 1 OUT and HDMI 2 OUT) available on the rear panel of BDP-103D
be connected to two TVs at the same time, and each output can deliver both digital video and
audio signals.
