Optek 156 - Dimensions for Wall Mount Housing S19-42 - Stainless Steel 1.4301;SS304 - IP65 (Option)

Technical data
- 15 -
optek-Manual--1004-1022-02--156-US-2017-12-11
www.optek.com
6.2.3 Dimensions for wall mount housing S19-42 - stainless steel 1.4301/SS304 -
IP65 (option)

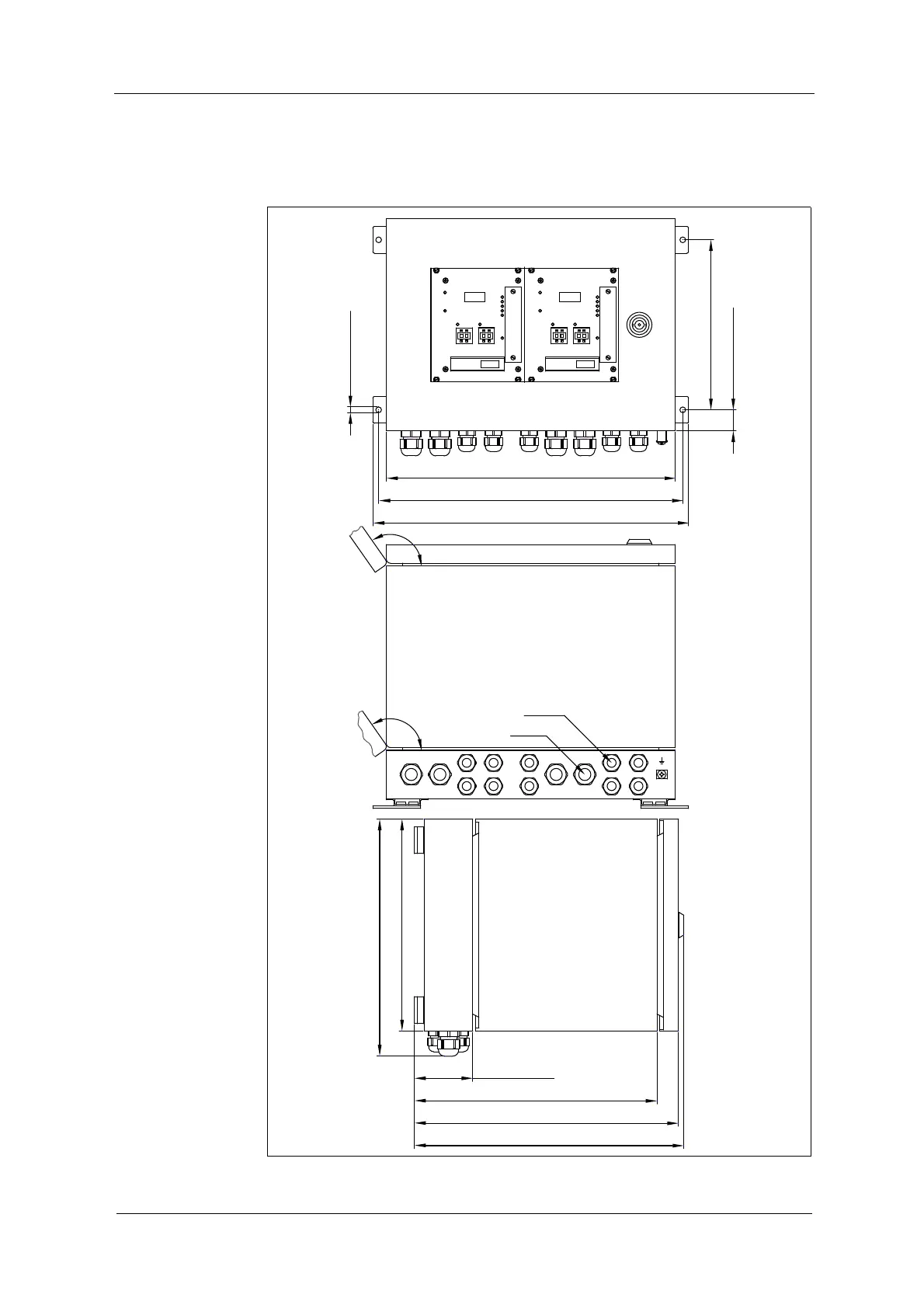

Fig. 7 Dimensions with wall mount housing S19-42 - stainless steel 1.4301 / SS304 - IP65
8 8 8 8 88 88
237mm [9.33"]
265mm [10.43"]
190mm [7.48"]
323mm [12.72"]
340mm [13.39"]
353mm [13.9"]
23.5mm [0.93"]
6.4mm [0.25"]
65mm [2.56"]
271mm [10.67"]
301mm [11.85"]
295mm [11.61"]
125°
125°
4x M20
10x M16
ALARM 2
optek
ALARM 2
optek
FAILURE
X56
ALARM 1
POWER
LAMP
24.8
LAMP
FAILURE
POWER
ZERO
VAR
X56
ALARM 1
24.8
ZERO
VAR
