9 Commissioning
9.1 Requirements for commissioning
Before commissioning the converter or the whole measuring system, carry out
the following activities:
• Install the armature (see instruction manual of armature).
• Check the pipeline with the armature for leaks.
• Check armature windows. They must not be dirty.
• Install the sensor (see instruction manual of the sensor).
• Ensure that the converter is mounted correctly (see chapter 7, page 17).
• Verify correct wiring of the converter (see chapter 8, page 19).
9.2 Switching the converter on
1. Flip the converter power switch (22) to I (ON) position.

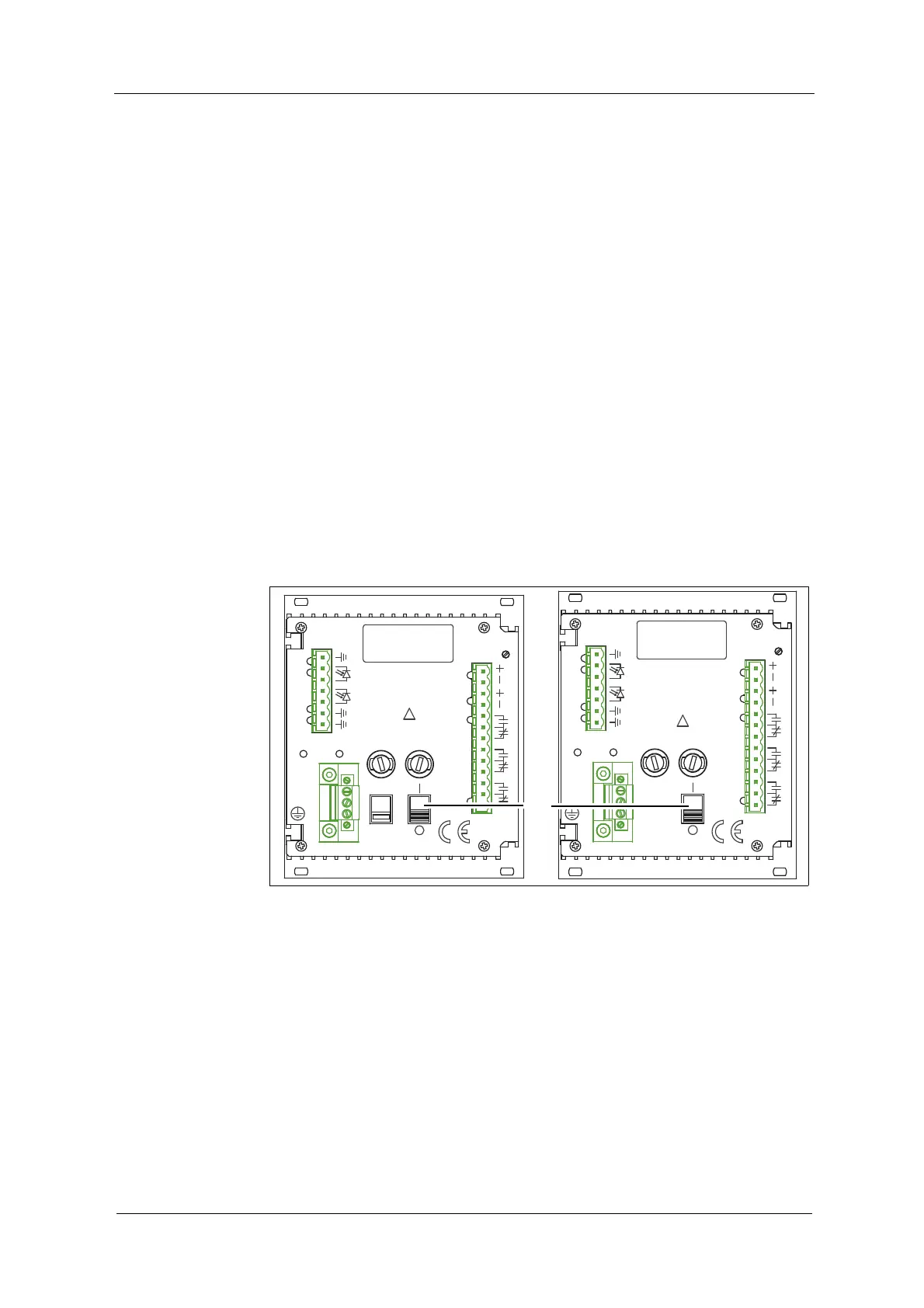

Fig. 19 Power switch on converter 115 / 230 V (left) and 24 V (right)
2. Switch on the external release device.
3. Wait for approx. 15 minutes, until the system has reached the operating
temperature.
ALARM II
14
OPTEK-DANULAT
MADE IN GERMANY
N
PE
L
LAMP AL
17
18
15
16
1
2
5
5
4
5
3
DETECTORINPUTS
8
!
24V DC
50/60Hz, 30VA
24V, T1,25A
ALARM I
11
12
13
9
10
mA
VOLTAGE
6
7
LAMP
LAMP -
212019
ALARM II
14
MADE IN GERMANY
OPTEK-DANULAT
N
PE
L
230V
LAMP AL
17
18
15
16
3
DETECTORINPUTS
5
5
4
50/60Hz, 30VA
230VAC, T0,315A
115VAC, T0,630A
115/230V
!
5
1
2
8
ALARM I
11
13
12
10
9
mA
VOLTAGE
6
7
LAMP
LAMP -
212019
22
