6.2.4 Dimensions for mounting with mounting angle

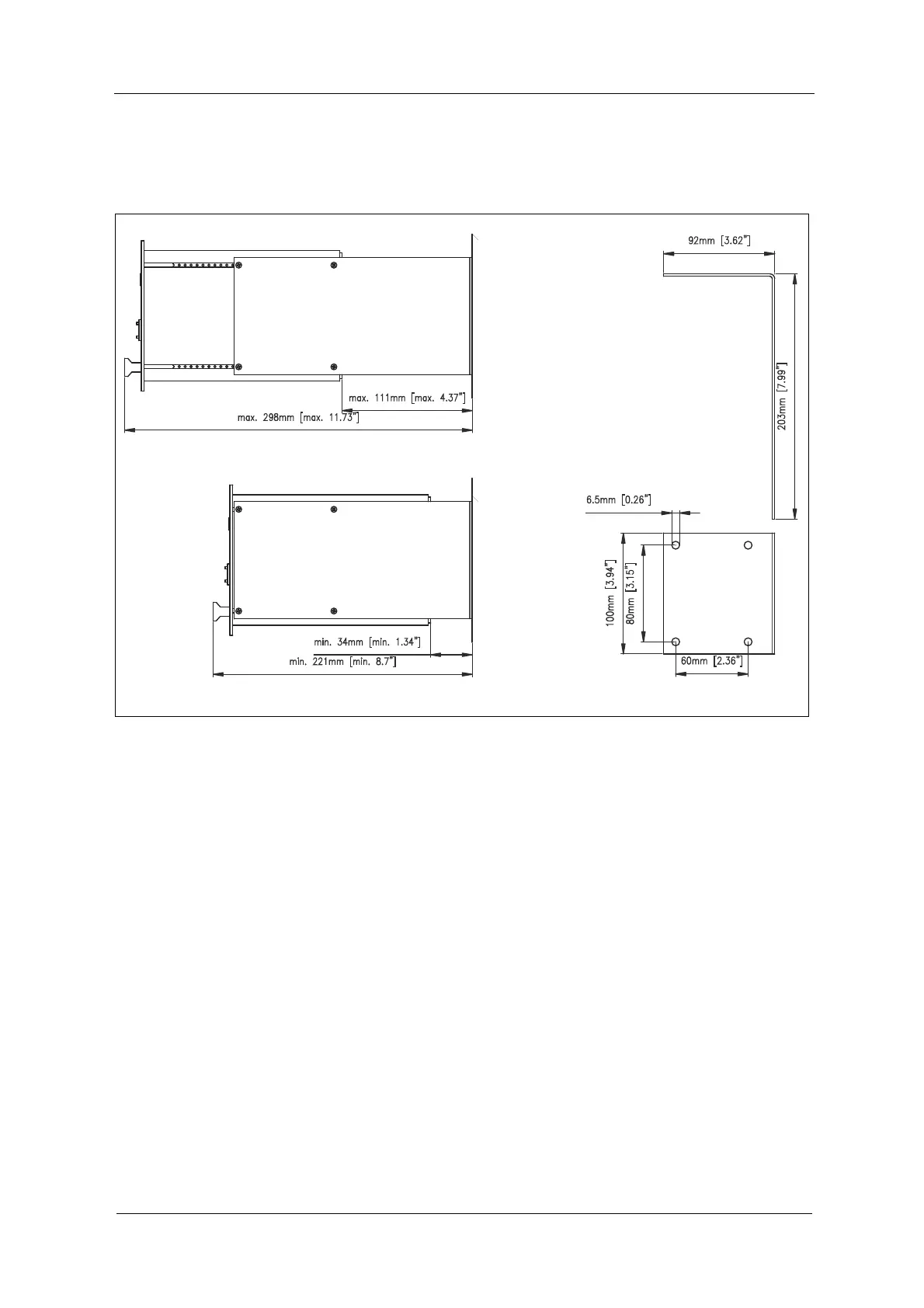

Fig. 8 Dimensions for mounting with mounting angle W19
max. 111mm [max. 4.37"]
max. 298mm [max. 11.73"]
min. 34mm [min. 1.34"]
min. 221mm [min. 8.7"]
92mm [3.62"]
203mm [7.99"]
60mm [2.36"]
80mm [3.15"]
100mm [3.94"]
6.5mm [0.26"]
