9.3 Adjusting lamp voltage
Lamp voltage must be adjusted to the cable length in order to compensate
voltage loss in the cable. Too low voltage can lead to wrong measuring results.
Too high lamp voltage reduces the life span of the lamp module considerably.
1. Let the lamp module of the sensor operate for at least 3 minutes. During this
time the voltage at the lamp output terminals of the converter adjusts
depending on the load.
Caution!
The lamp voltage at the converter must not exceed 8.5 V DC or the system will
overheat!
2. Adjust the lamp voltage at the potentiometer (16).

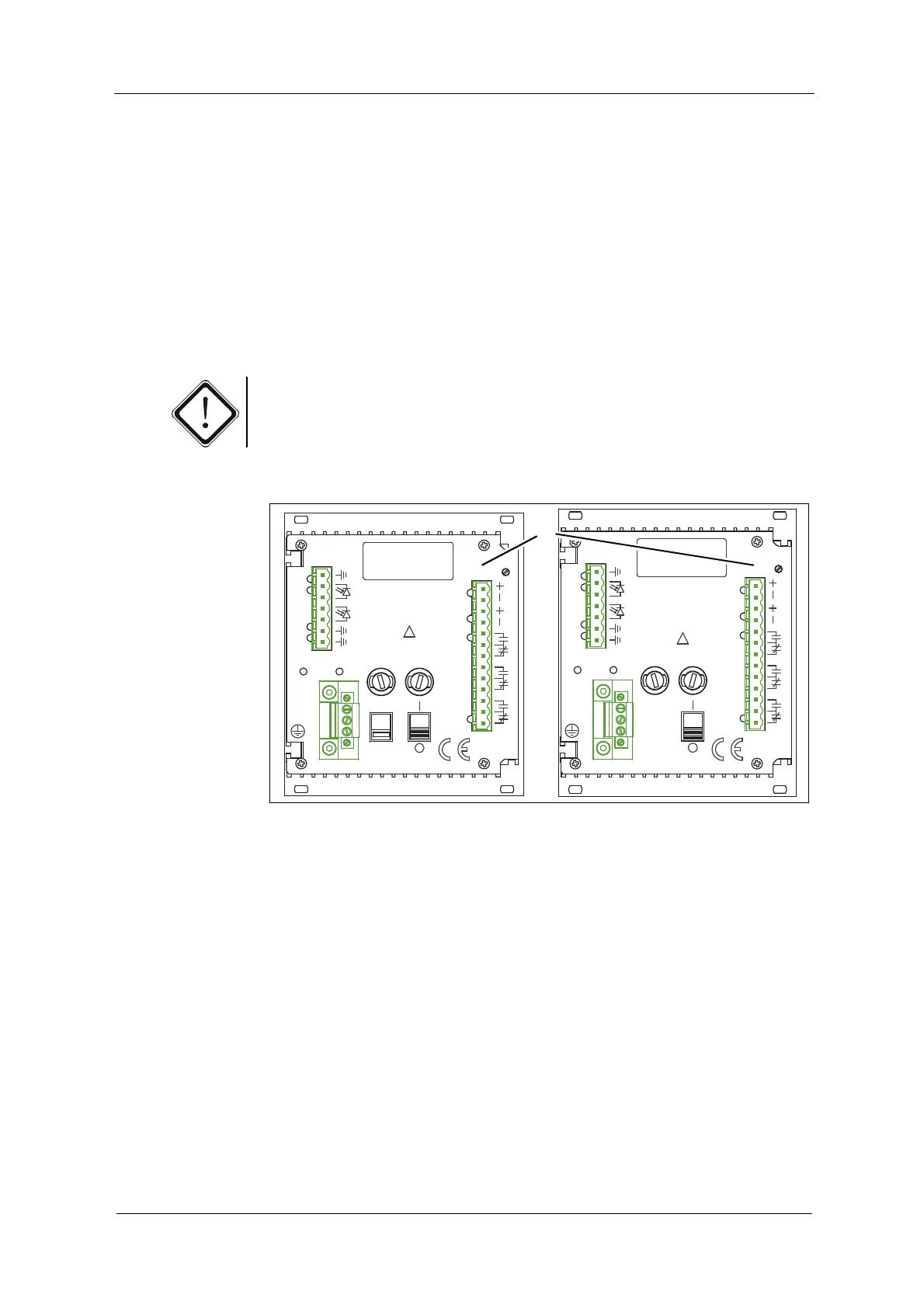

Fig. 20 Potentiometer for lamp voltage
ALARM II
14
OPTEK-DANULAT
MADE IN GERMANY
N
PE
L
LAMP AL
17
18
15
16
1
2
5
5
4
5
3
DETECTORINPUTS
8
!
24V DC
50/60Hz, 30VA
24V, T1,25A
ALARM I
11
12
13
9
10
mA
VOLTAGE
6
7
LAMP
LAMP -
212019
ALARM II
14
MADE IN GERMANY
OPTEK-DANULAT
N
PE
L
230V
LAMP AL
17
18
15
16
3
DETECTORINPUTS
5
5
4
50/60Hz, 30VA
230VAC, T0,315A
115VAC, T0,630A
115/230V
!
5
1
2
8
ALARM I
11
13
12
10
9
mA
VOLTAGE
6
7
LAMP
LAMP -
212019
16
