Optex REDSCAN Series User Manual

64

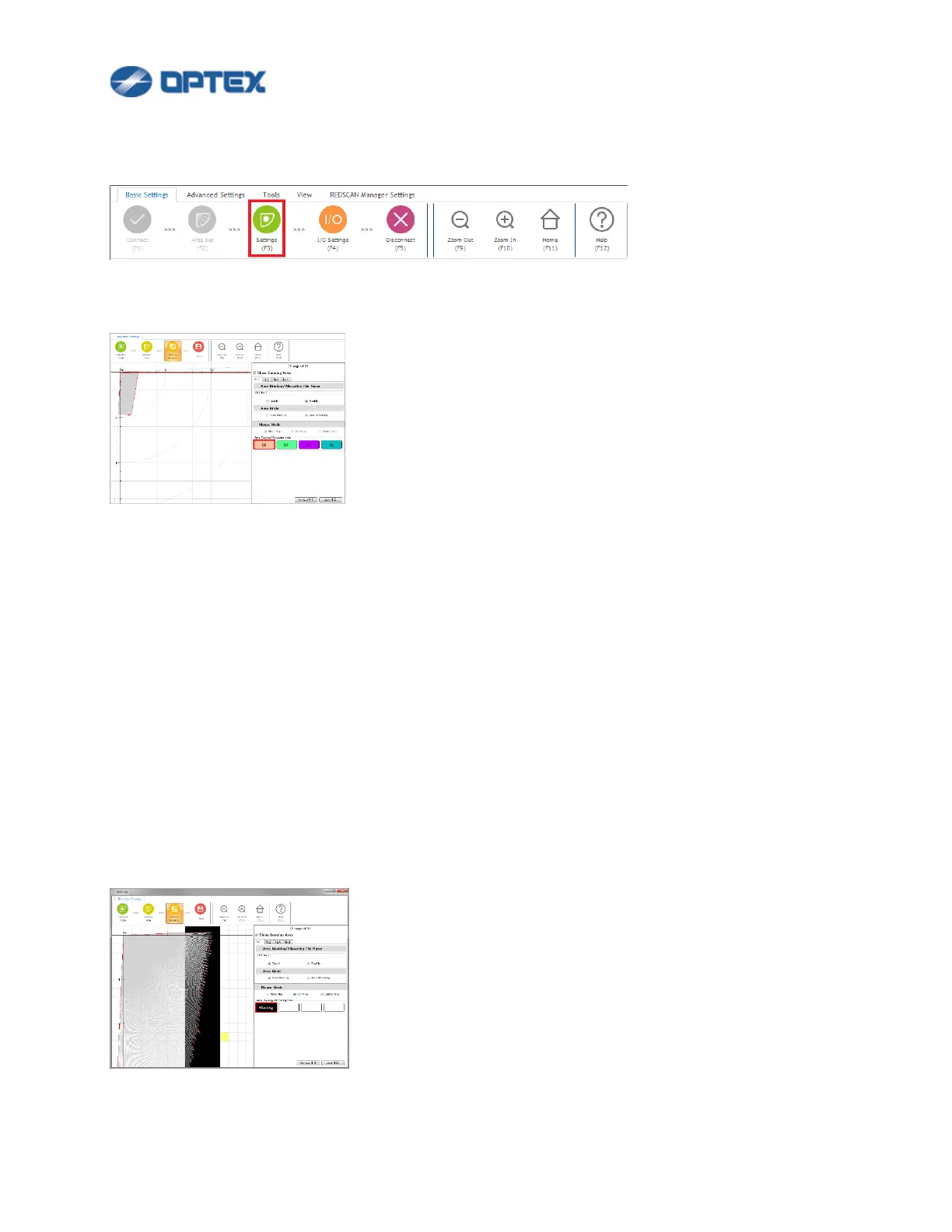

[Area Masking] RLS-2020 series, RLS-3060SH or RLS-3060L (version 8.0.0 or later).
1. Click Setting button (the 3rd button).
2. Dialog box will appear. Click Masking Allocating button.
3 files, No.2 to No.4, are supported by RLS-2020S and RLS-3060SH.
3. To Mask Detection Area
(1) Select File Number tab (RLS-2020S or RLS-3060SH). The file contains masking/allocating settings.
Applied file can be switched by Relay Input. File Name can be changed.
(2) Select Enable.
(3) Select Area Masking.
(4) Select Set Area.
(5) Click preferable area on the map. The black box means masking area. Objects in the masking area
are ignored.
⚫ To cancel the masking area, select Delete Area and click the area.
⚫ To move the map by mouse, select Move Map.
⚫ To erase sensing area, uncheck Show Sensing Area.
