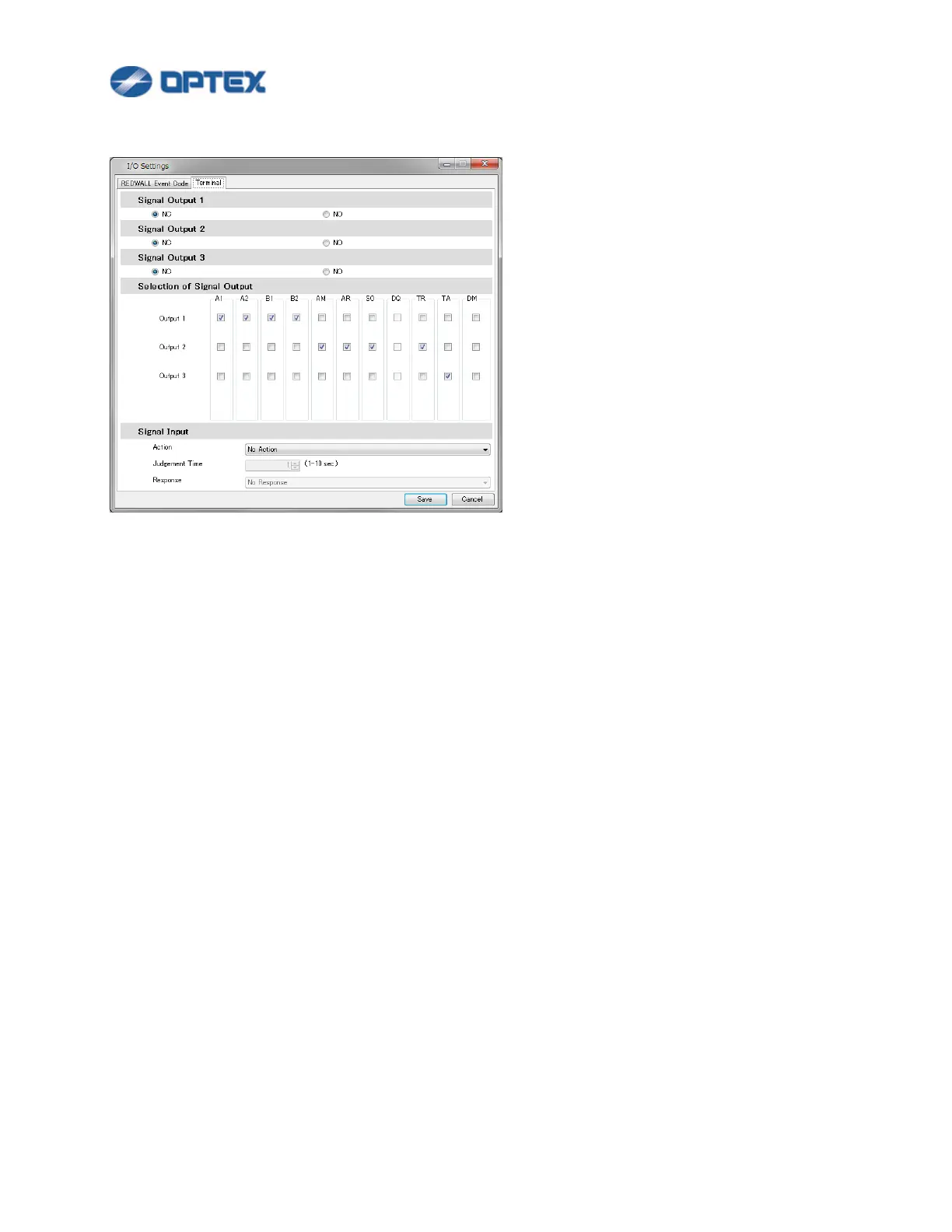

RLS-2020 Terminal tab screen (Version 2.1.0 or later)
Signal Output 1 - 3
Select NC (Normally Closed) or NO (Normally Open).
Note: When power is down, signal outputs are opened.
Assign A1 - DM to Output 1 -3. Default settings are:
⚫ Signal Output 1: N.C. A1, A2, B1, B2
⚫ Signal Output 2: N.C. AM, AR, SO, TR
⚫ Signal Output 3: N.C. TA
⚫ Not Select: DM (DM can be selected with V 2.0.3 or higher)
Signal Input (RLS-2020S Only)
If Signal Input is closed, the Action and the Response are done after the Judgement Time. Signal input
shorter than Judgement Time is ignored.
