OPTIKON PULSAR 2 - Left Side View (Fig. 2)

Pulsar
2
Service Manual
OPTIKON 2000
Cod. 111004SEN Rev.C
4-2

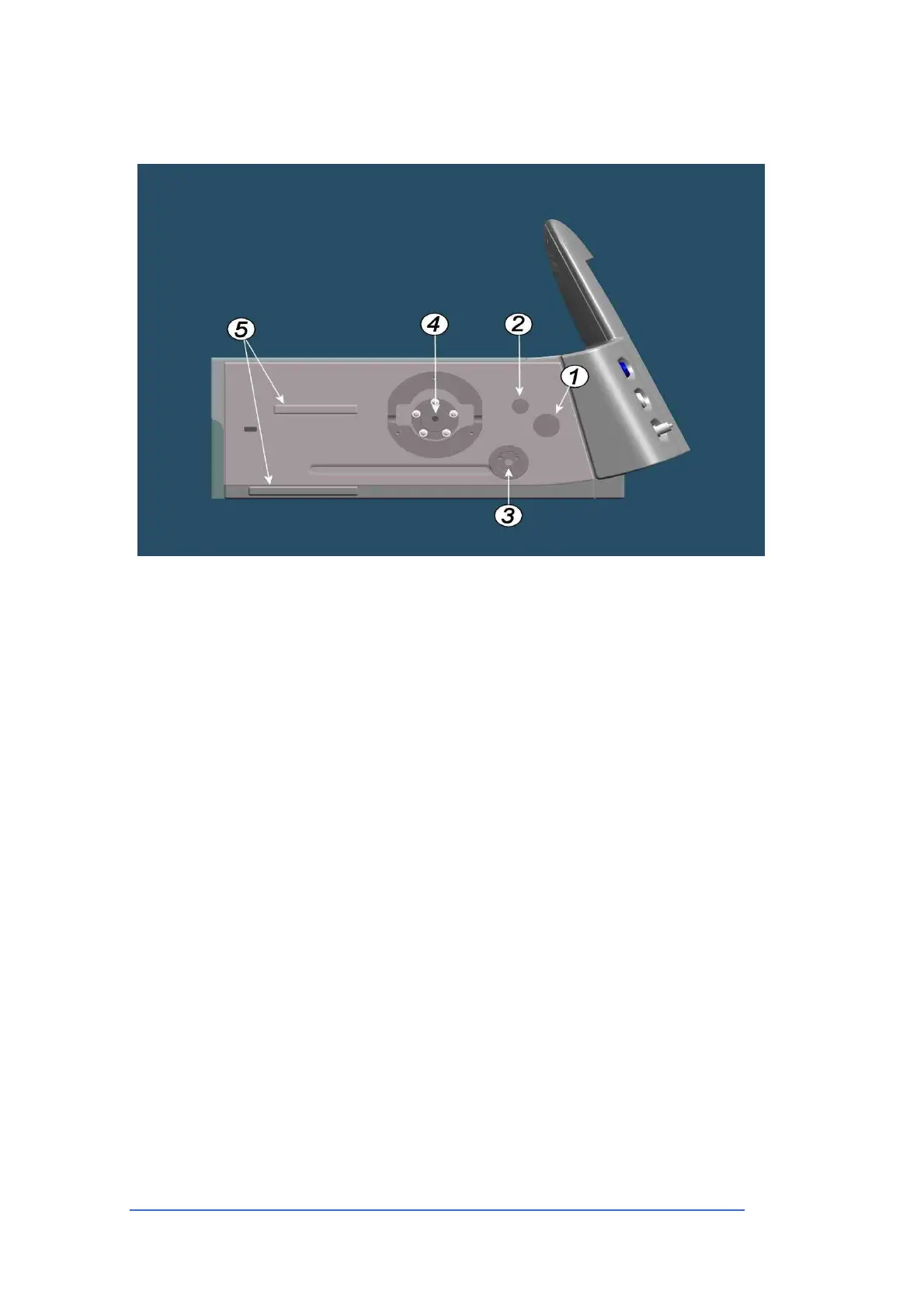

4.1.2 LEFT SIDE VIEW (FIG. 2)
1) IRRIGATION PINCH VALVE
The irrigation line is run through this valve. The valve allows starting and
stopping irrigation at surgeon’s demand.
2) REFLUX PINCH VALVE
The Reflux/Venting pinch valve permits introduction of fresh BSS solution in the
aspiration line, thus releasing the vacuum in the line and, eventually, reversing
direction of flow.
3) ACS3 VACUUM SENSOR
The ACS3 vacuum sensor monitors the vacuum level in the aspiration line in a
sterile manner. It also prevents sudden vacuum surges, thus stabilizing the
anterior chamber.
4) PERISTALTIC PUMP
This pump allows peristaltic aspiration in the PULSAR 2. The pump rotor is
automatically moved vertically to allow tubing installation and/or Venturi
aspiration.
5) WASTE COLLECTION TANK SUPPORTS
These two brackets support and hold in place the waste collection rigid tank at
the end of the aspiration path.
