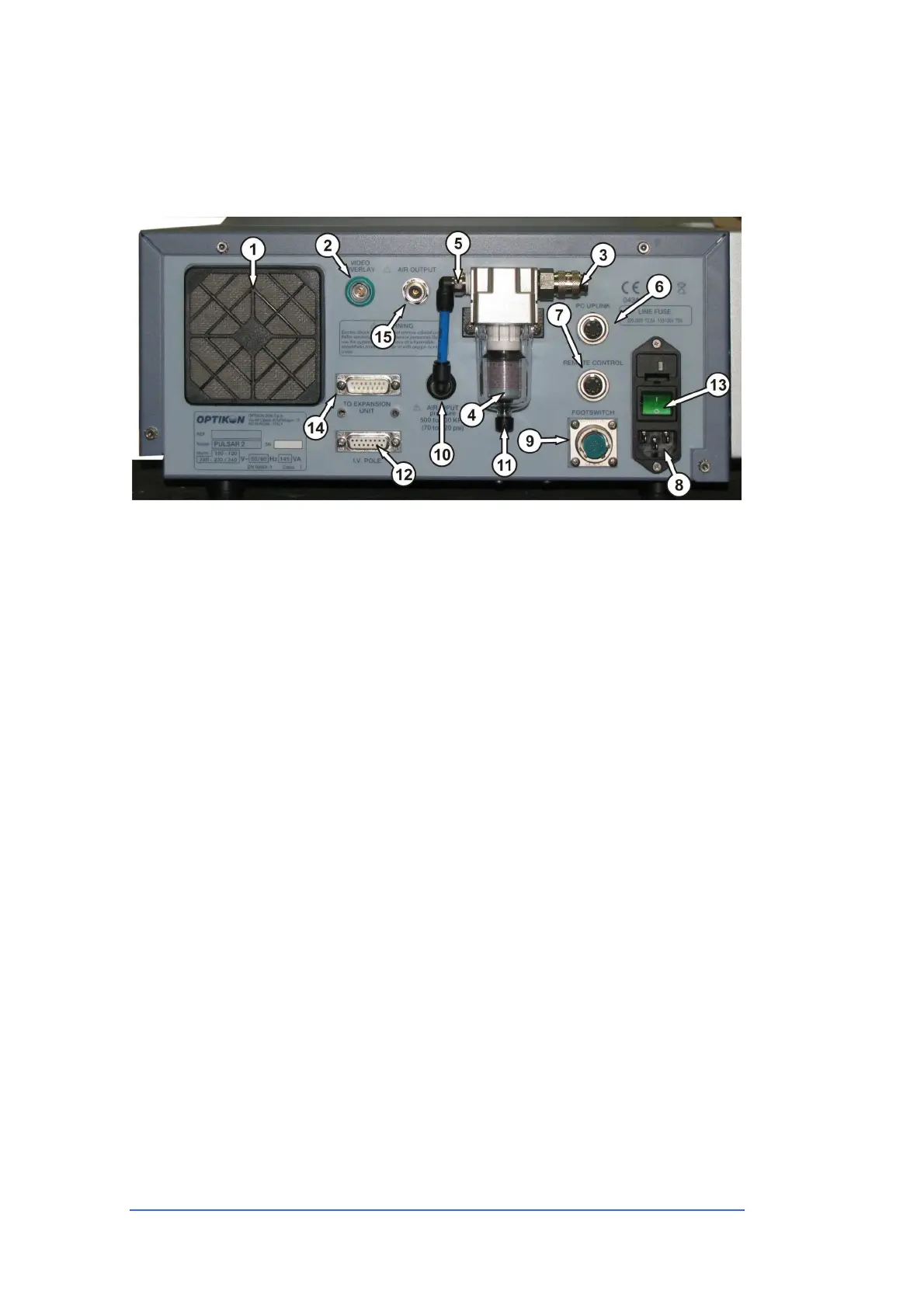

4.1.3 REAR PANEL (FIG. 3)
1) COOLING FAN
Removes hot air from the unit.
2)
CONNECTOR FOR VIDEO OVERLAY
This connector makes it possible the connection to the "Eclipse" Video
Overlay device, which allows you to superimpose the main parameters
on the video shot during surgery.
3) GAS INLET
Compressed air supply at a pressure of 5-8bars (72.5- 116PSI) must be
connected to this input. This air is used by the PULSAR2 to operate Venturi
pumps, vitrectomy cutter, pneumatic micro-scissors and silicone injection.
4) GAS FILTER
This filter removes humidity and particles from the compressed air supplied to
the PULSAR2 unit. Depress the pin of the pin valve (Fig.3 No.11) at the lower
section of the filter to evacuate the water that condenses in the polycarbonate
container.
5) FILTER OUTLET
The filtered air leaves from this outlet. Connect the tube supplied with the
unit to the "AIR INPUT" (Fig.3 No.10).
6) PC UPLINK
This is the PULSAR2-PC interface for data download/upload and software
upgrade.
7) REMOTE CONTROL
This is the remote control connector.
