OPTIKON PULSAR 2 - Page 39

Pulsar
2
Service Manual
OPTIKON 2000
Cod. 111004SEN Rev.C
5-
13

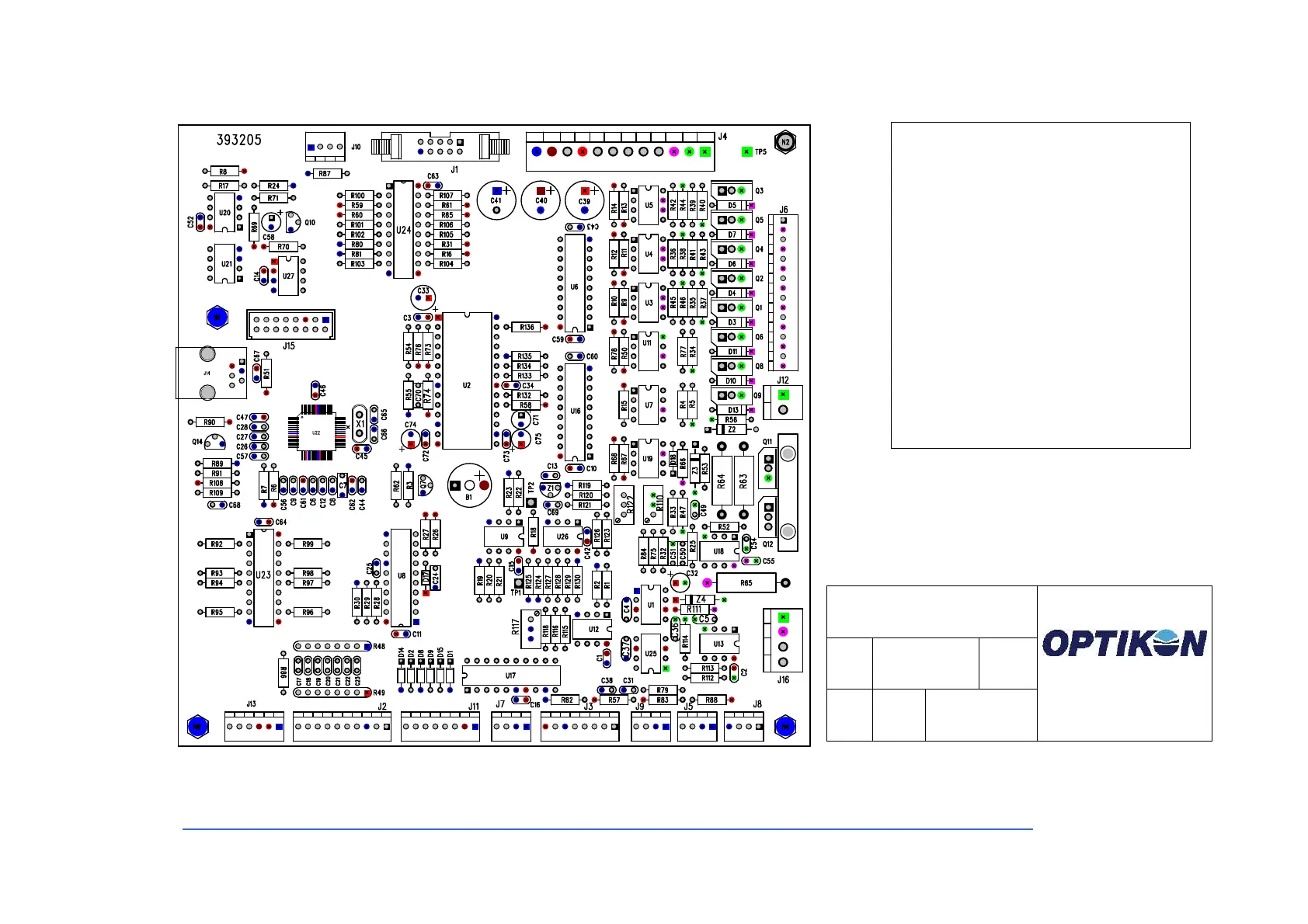

Title
Control Board
Via del Casale di Settebagni, 13
00138 Roma - Italy
Rev
0
Date
26/05/06
Appd
Shee
t
1/1
Drawn Drawing #
393200cA
Notes:
On solderings side,
1- Solder a 10K 1/4W resistor
between Pin2 and 6 of U21
2- Solder a 100K 1/4W resistor in
parallel to D14
3- Pulsar
2
, do not mount Q8 and
short circuit collector and emitter
(pin2-3)
