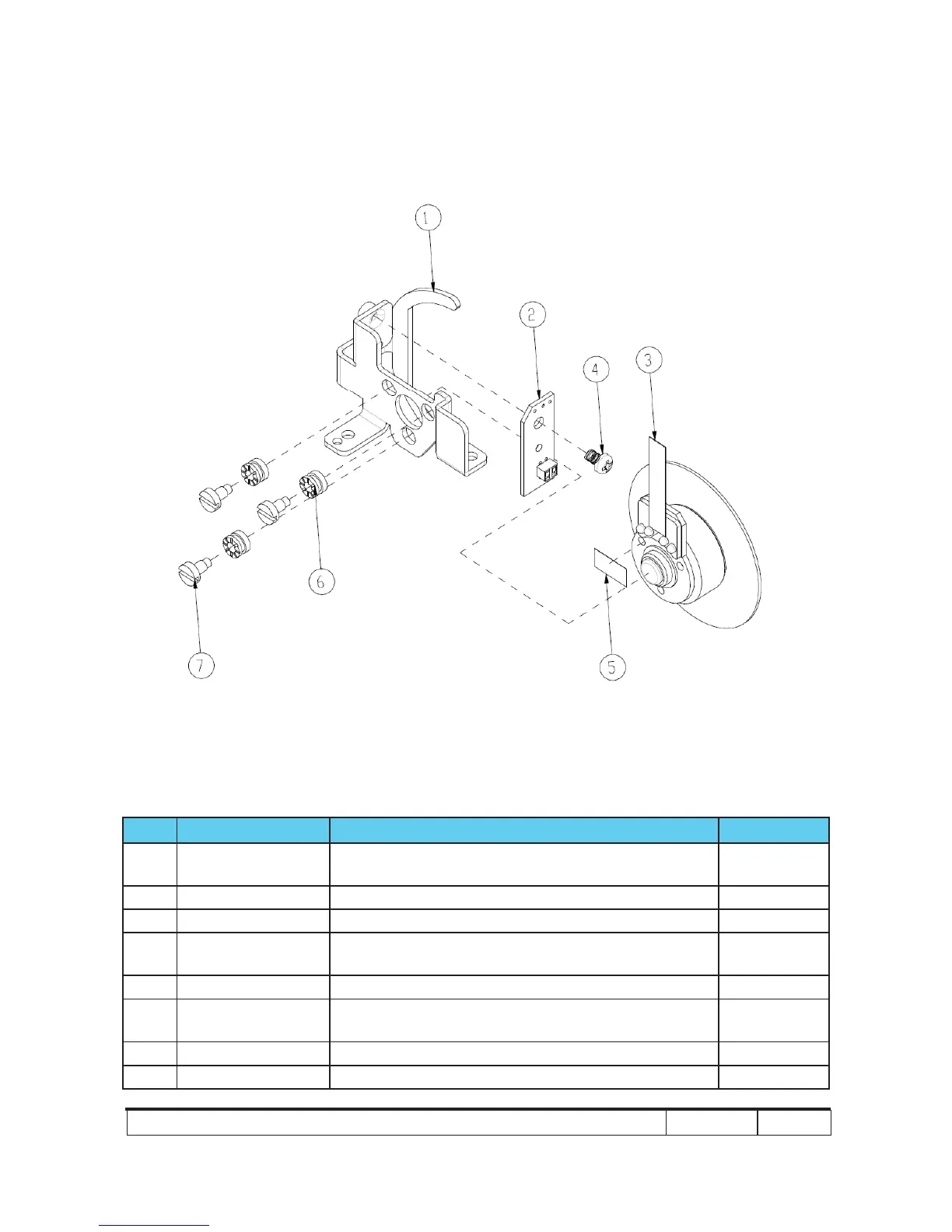

ASSY COLOR WHEEL MODULE
Item P/N Description Parts Supply
70.8EF41GR01
ASSY COLOR WHEEL MODULE EX615
(SERVICE)
V
1 61.8CP03G001 CW BRACKET SECC X1161
2 80.8EF04G001 PCBA PHOTO SENSOR BOARD FOR EX615 V
3 23.8EF19G101
YO 5S R76Y32G78W98B76 CW (WITH FTZS MO-
TOR)
4 85.1A126G040 SCREW PAN MECH M2.6*4 Ni
5 51.82Y29G001
TAPE 3M J350 10*5mm FOR COLOR WHEEL
DP715
6 52.83615G001 COLOR WHEEL DISC RUBBER, EzPro755
7 61.83628G001 COLOR WHEEL SHOULDER SCREW,EzPro755
