Optoma EX615 - 2-23 Rod Adjustment

EX540/EX542/EX612/EX615/EX762/EX540I/EX542I/ES523ST/EW533ST
Condential 2-18
Z type driver
2-23 Rod Adjustment
1. Environment Adjustment
- The distance between the engine and
the screen is 1.95 M.
- This process should be done at a dark
environment (under 10 Lux).
2. Procedure Adjustment
- Change the screen to "white screen".

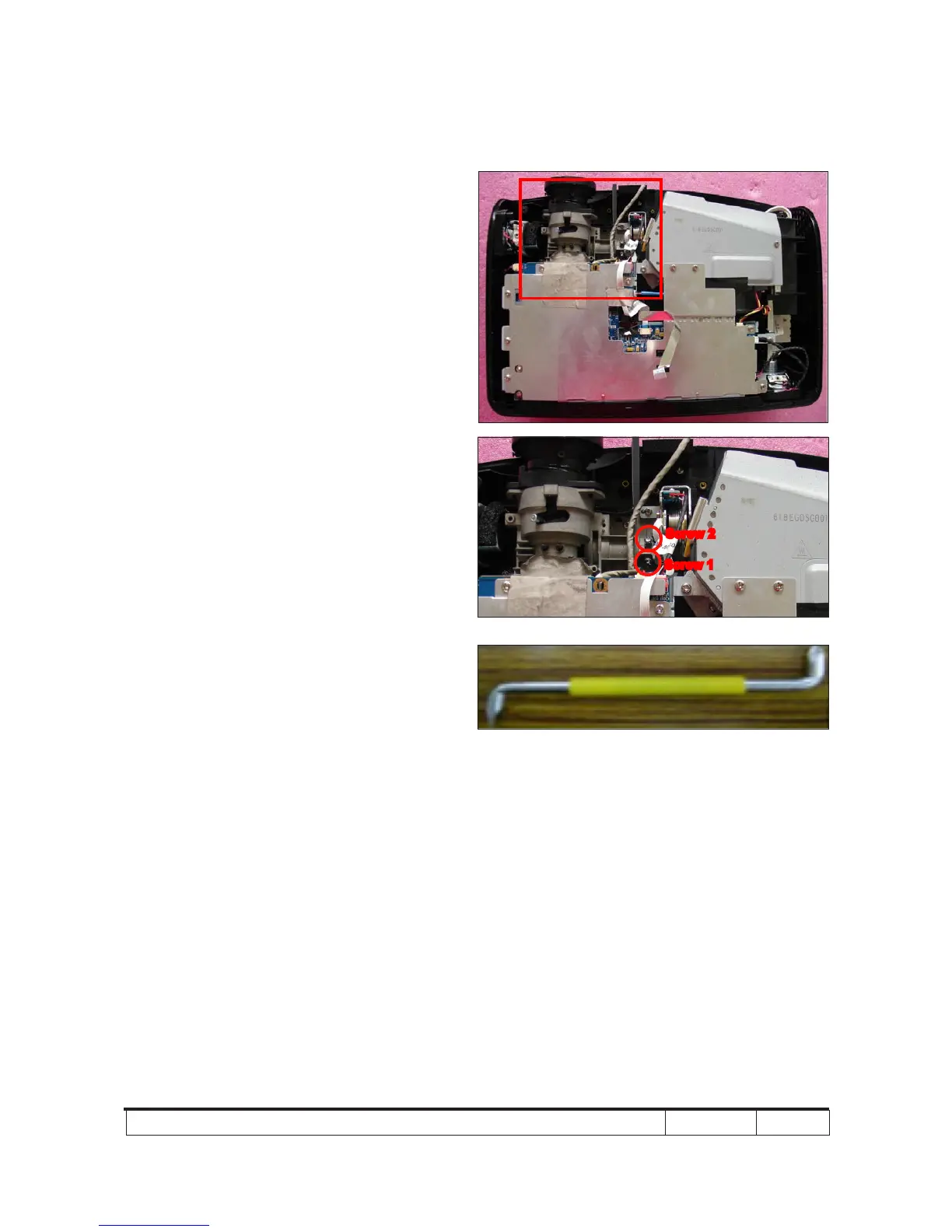

- Adjust the screws by using the rod
on the engine module to readjust the
image.
("screw 1" should be adjusted rst, and
then "screw 2". Adjust until the yellowish
or bluish parts disappeared.)
3. Abnormal image inspection
- It should not have any abnormal color
at the rim of the image by estimating
through the eyes.
Note: - To avoid over adjusting the rod.
- After the opreation, please use the glue
to x the screws.
- Please use Z type driver to adjust Rod
screw 1.
Screw 1
Screw 2
