Optoma EX615 - 2-18 LVPS Module & Interlock Switch Disassembly

EX540/EX542/EX612/EX615/EX762/EX540I/EX542I/ES523ST/EW533ST
Condential 2-14

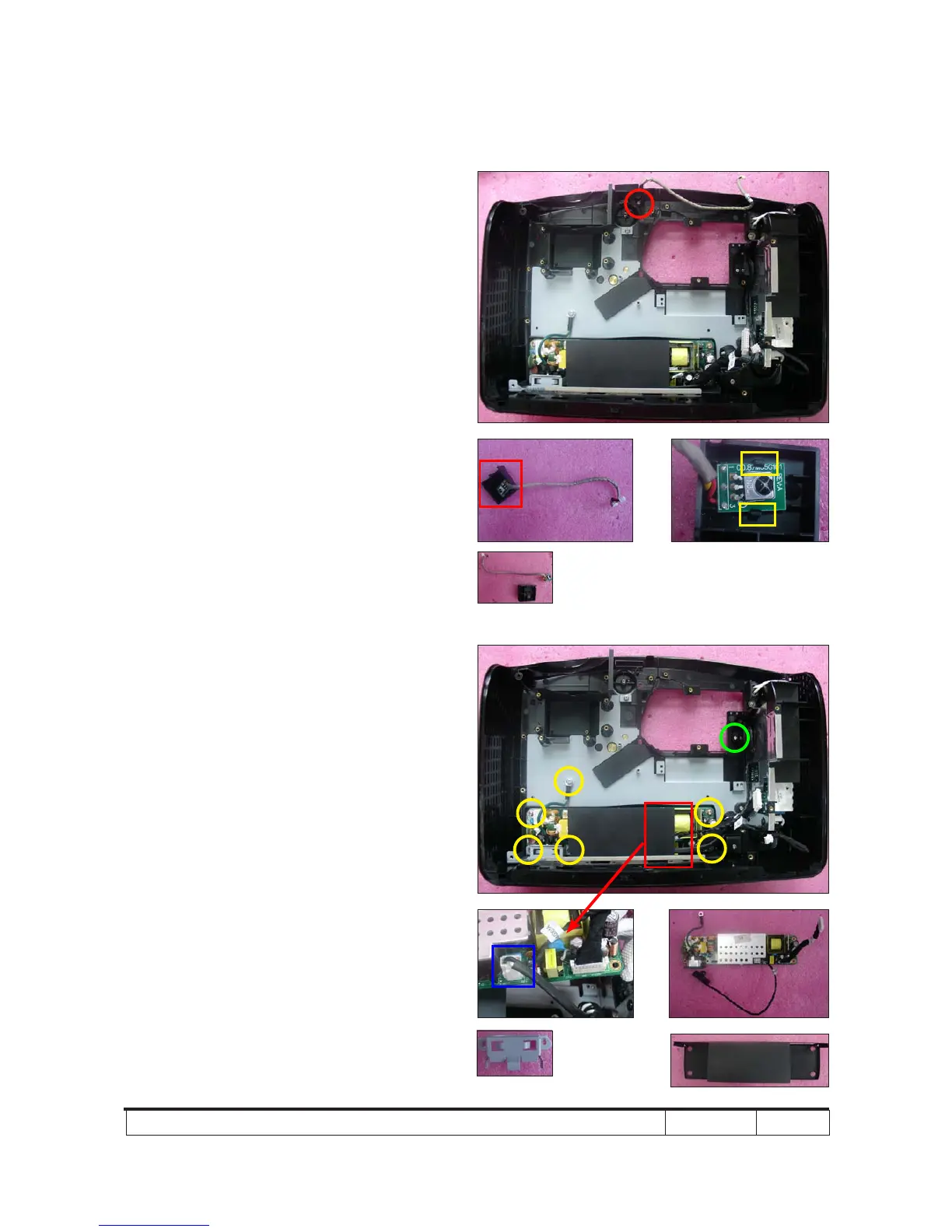

2-18 Disassemble LVPS
Module and Interlock
Switch
1. Unscrew 6 screws (as yellow circle).
2. Unplug 1 connector (as blue square).
3. Disassemble the LVPS Module,
the AC Inlet Bracket and Mylar.
4. Unscrew 1 screw (as green circle).
AC Inlet Bracket
2-17 Disassemble Front IR
Module
1. Unscrew 1 screw (as red circle) to
disassemble the Front IR Module.
2. Unfasten 2 tenons (as yellow square) to
separate the IR Board and IR Holder.
