Optoma EX615 - Page 106

EX540/EX542/EX612/EX615/EX762/EX540I/EX542I/ES523ST/EW533ST
Condential XIV

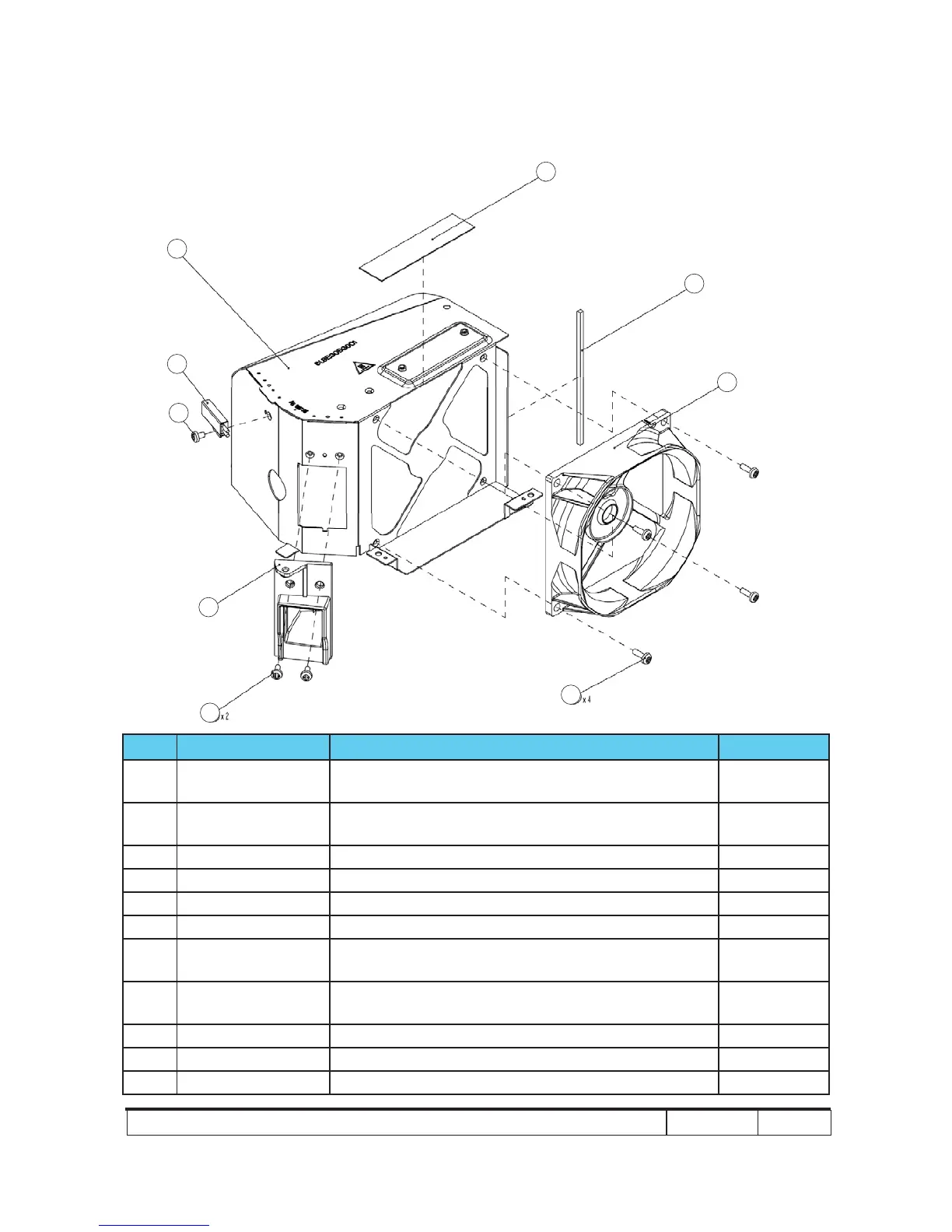

ASSY FAN SHIELDING MODULE
Item P/N Description Parts Supply
1 49.88T01G001
SUNON, KDE1207PKV1-A 70*70*20mm AXIAL
FAN (EX542)
V
1 49.8EF03G001
SUNON KDE1285PTV1 AXIAL FAN-LOW COST
(EX612/EX615)
V
2 61.8EG05G001 8525 FAN SHIELDING HD20
3 61.8EG11G001 LAMP BLOWER DUCT HD20
4 85.1A123G080 PAN SCREW M3*8 FOR YM-64 FRONT CELL&SP
5 85.1A123G060 SCREW PAN MECH M3*6 NI
6 43.8EF17G001
THERMAL SWITCH WITH BRACKET (KLIXON
YS11) EX542 85C (EX542)
V
6 43.8EG17G001
THERMAL SWITCH WITH BRACKET (KLIXON
YS11) HD20 100C (EX612/EX615)
V
7 85.1A123G040 SCREW PAN MECH M3*4 Ni
8 51.81540G001 TAPE 3M J350 17*60mm
9 41.8EF01G001 EMI GASKET W5*H4*L80m
1
8
9
2
6
7
3
5
4
