EX540/EX542/EX612/EX615/EX762/EX540I/EX542I/ES523ST/EW533ST
Condential
6-7
6-6 Setup Procedure (VGA)
(for ES523ST/EW533ST)

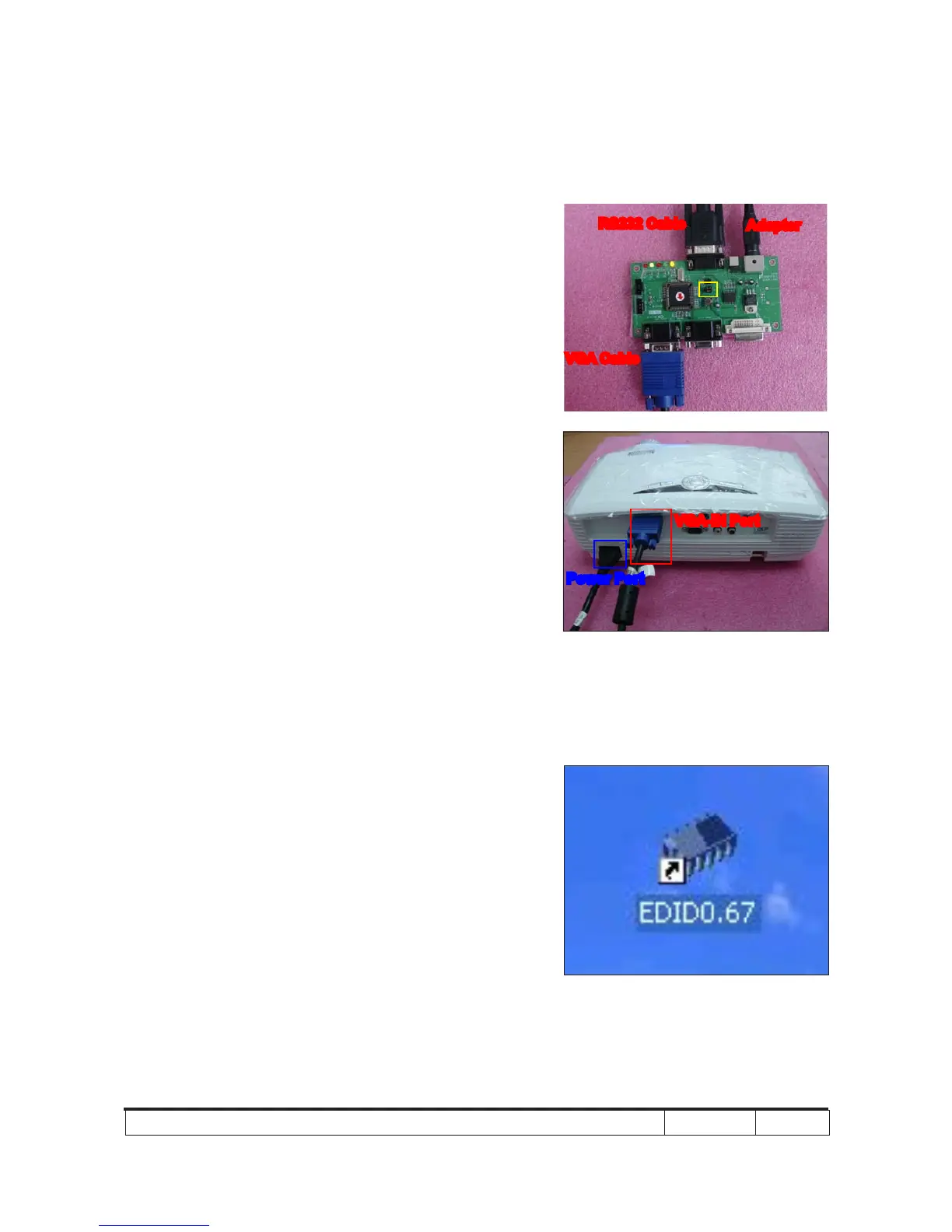

1. Connect all ports
(1) Connect P1 of xture with COM Port of
PC/Laptop by RS232 Cable.
(2) Connect P3 of xture with VGA-IN Port
of projector by VGA Cable.
(3) Plug Power Adapter to JP1 of xture.
(5) Power on xture.
(6) Plug Power Cord to projector.
Note: -You must conrm that the JP3 is closed in
all procedure.
6-7 EDID Key-In Procedure
(VGA-1 & VGA-2)
(for ES523ST/EW533ST)
1. Execute EDID Program
- Double click "EDID" to execute EDID
program.
JP3
Adapter
RS232 Cable
VGA Cable
JP1
P1
P3
VGA-IN Port
Power Port
