Optoma EX615 - Page 99

EX540/EX542/EX612/EX615/EX762/EX540I/EX542I/ES523ST/EW533ST
Condential VII
Item P/N Description Parts Supply
1 70.8EF09G001 IO BOARD ASSEMBLE EX612
70.8EJ03GR01
ASSY PCBA MAIN BOARD FOR EX542
(SERVICE)
V
80.8FK01G001 PCBA MAIN BD FOR EX612 V
70.8EF43GR01
ASSY PCBA MAIN BOARD FOR EX615
(SERVICE)
V
2 80.8EF01G003 PCBA MAIN BD FOR EX615
3 80.8EF07G001 PCBA LAN MODULE BD FOR EX615/EX542 V
4 61.00080G001 STAND OFF H=6.0 M2/M3*L6 Sn EP910
5 85.1A122G040 SCREW PAN MECH M2*4 Ni
6 86.0A123G024 HEX NUT M3*5.5*0.5P L2.4 Ni
7 85.1A123G050 SCREW PAN MECH M3*5 Ni
8 61.83N19G001 HEX SPACER M3 H=17mm L=5mm AL PD726
9 80.8EF06G003 PCBA DAUGHTER BD FOR EX612 V
9 80.8EF06G002 PCBA DAUGHTER BOARD FOR EX615/EX542 V
10 85.1A123G050 SCREW PAN MECH M3*5 Ni

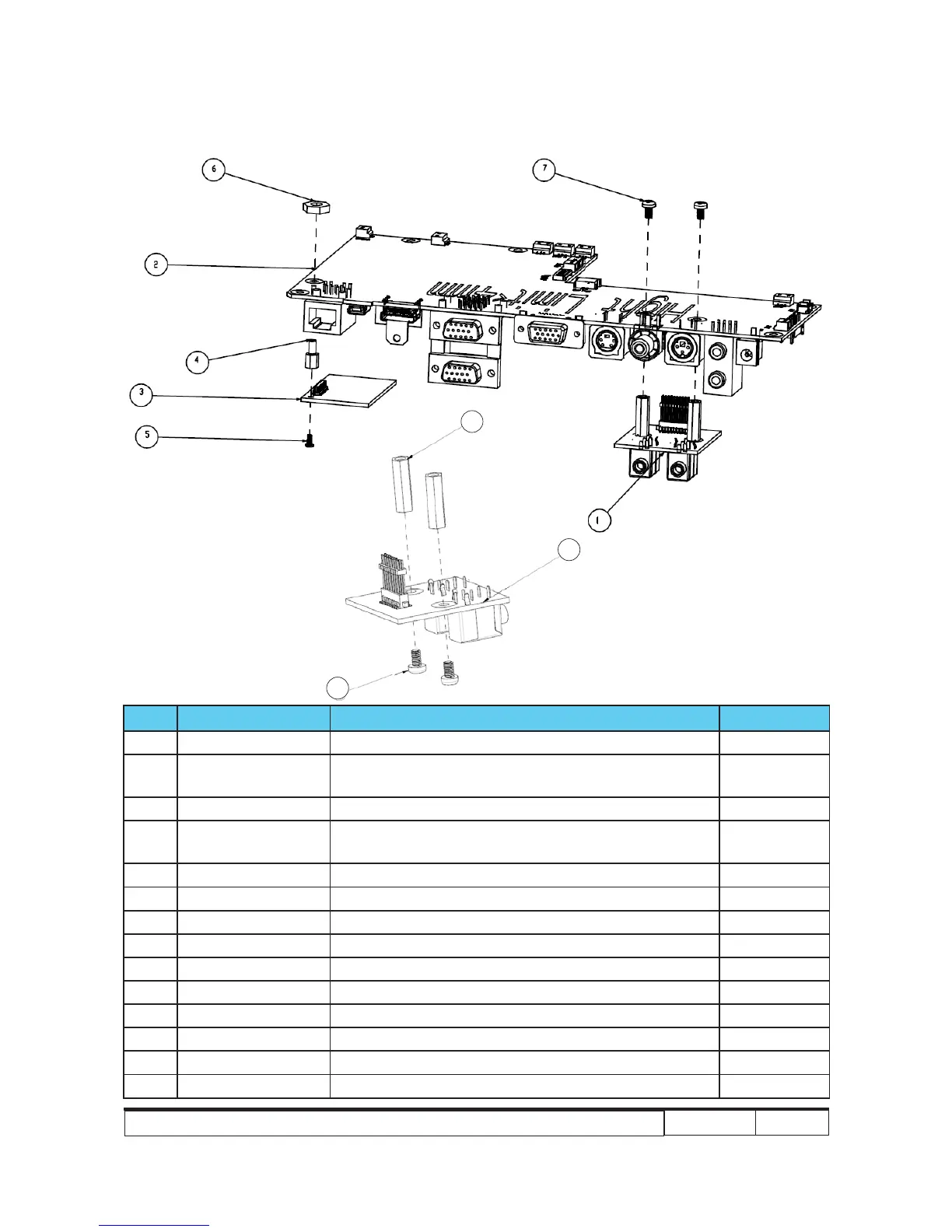

ASSY MAIN BOARD AND IO BOARD MODULE
8
9
10
