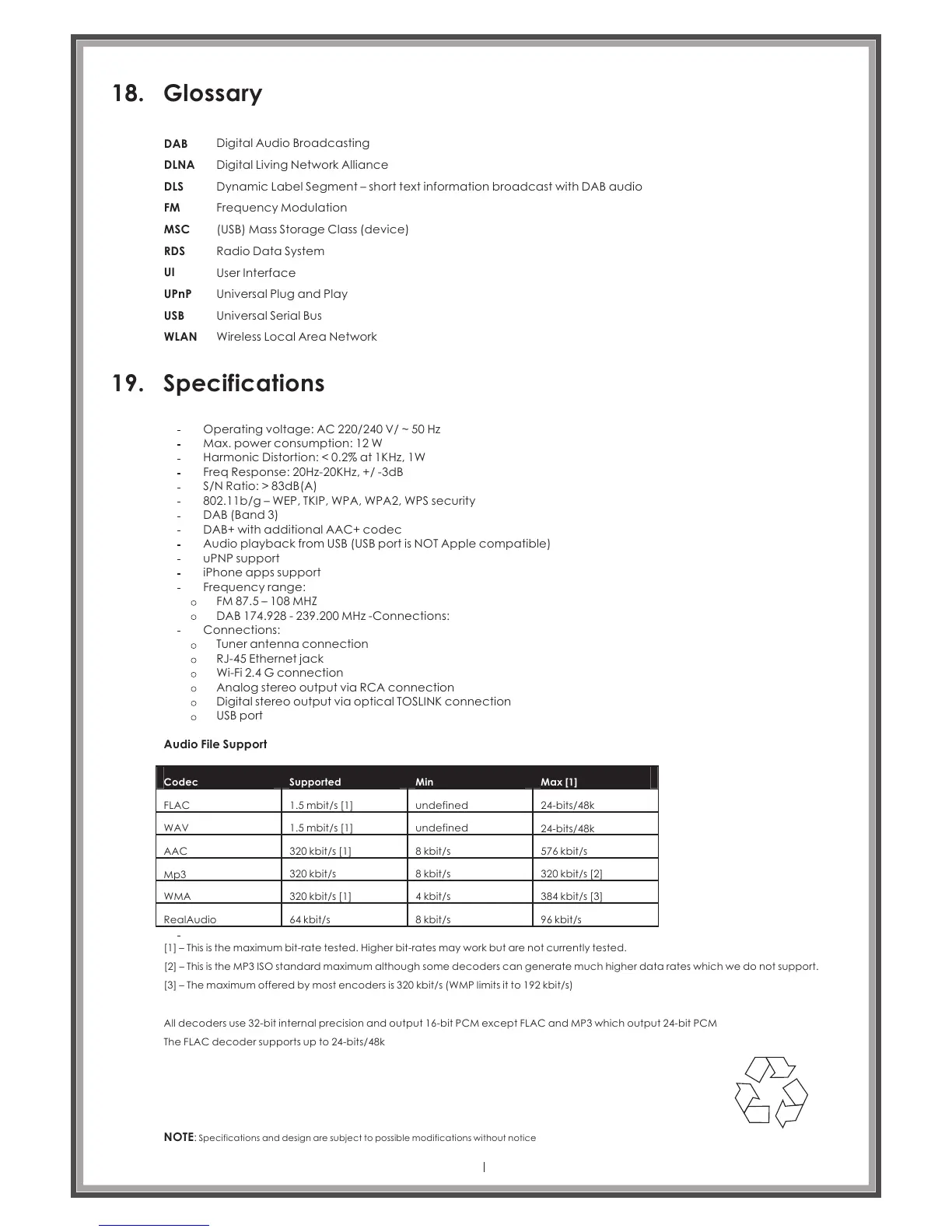

18. Glossary
DAB
DLNA
DLS
FM
MSC
RDS
UI
UPnP
USB
WLAN
Digital Audio Broadcasting
Digital Living Network Alliance
Dynamic Label Segment – short text information broadcast with DAB audio
Frequency Modulation
(USB) Mass Storage Class (device)
Radio Data System
User Interface
Universal Plug and Play
Universal Serial Bus
Wireless Local Area Network
19. Specifications
Operating voltage: AC 220/240 V/ ~ 50 Hz
Max. power consumption: 12 W
Harmonic Distortion: < 0.2% at 1KHz, 1W
Freq Response: 20Hz-20KHz, +/ -3dB
S/N Ratio: > 83dB(A)
802.11b/g – WEP, TKIP, WPA, WPA2, WPS security
DAB (Band 3)
DAB+ with additional AAC+ codec
Audio playback from USB (USB port is NOT Apple compatible)
uPNP support
iPhone apps support
Frequency range:
FM 87.5 – 108 MHZ
DAB 174.928 - 239.200 MHz -Connections:
Tuner antenna connection
RJ-45 Ethernet jack
Wi-Fi 2.4 G connection
Analog stereo output via RCA connection
Digital stereo output via optical TOSLINK connection
USB port
Audio File Support
Connections:
Codec
Supported
Min Max [1]
FLAC
WAV
AAC
Mp3
WMA
RealAudio
1.5 mbit/s [1]
1.5 mbit/s [1]
320 kbit/s [1]
320 kbit/s
320 kbit/s [1]
64 kbit/s 8 kbit/s
4 kbit/s
8 kbit/s
8 kbit/s
undefined
undefined 24-bits/48k
24-bits/48k
384 kbit/s [3]
320 kbit/s [2]
576 kbit/s
96 kbit/s
[1] – This is the maximum bit-rate tested. Higher bit-rates may work but are not currently tested.
[2] – This is the MP3 ISO standard maximum although some decoders can generate much higher data rates which we do not support.
[3] – The maximum offered by most encoders is 320 kbit/s (WMP limits it to 192 kbit/s)
All decoders use 32-bit internal precision and output 16-bit PCM except FLAC and MP3 which output 24-bit PCM
The FLAC decoder supports up to 24-bits/48k
NOTE: Specifications and design are subject to possible modifications without notice
