Oracle Database Appliance X6-2S/X6-2M/X6-2L Front and Back Panels
20 Oracle Database Appliance Owner's Guide • March 2017

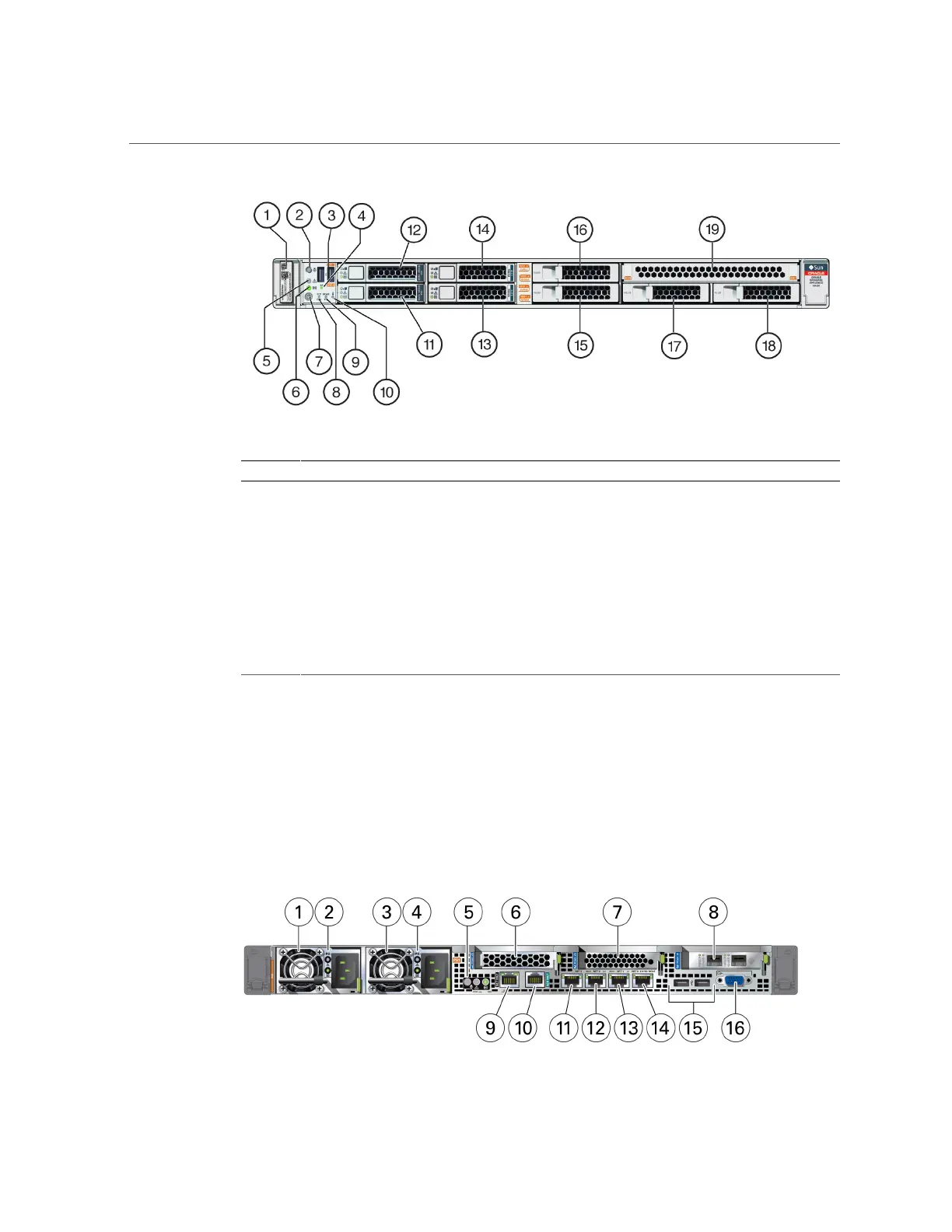

Callout Description Callout Description
1 Product Serial Number (PSN) label and
Radio Frequency Identification (RFID) tag
8 Fan Fault LED: amber
2 Locate LED/button: white 9 Power Supply (PS) Fault LED: amber
3 USB 2.0 connectors (2) 10 System Over Temperature Warning LED:
amber
4 SP OK LED: green 11 - 12 HDD 0 - HDD 1 (boot drives)
5 Service Required LED: amber 13 - 16 NVMe0, NVMe1, NVMe2 (or HDD filler),
NVMe3 (or HDD filler)
6 Power/OK LED: green 17 - 18 HDD filler
7 Power button 19 DVD filler
Oracle Database Appliance X6-2S/X6-2M Back
Panel
The following figure shows the components on the back panel of an Oracle Database
Appliance X6-2S/X6-2M.
