Oracle Database Appliance X6-2-HA

Oracle Database Appliance X6-2-HA Front and Back Panels
Chapter2 • Overview of Oracle Database Appliance 27

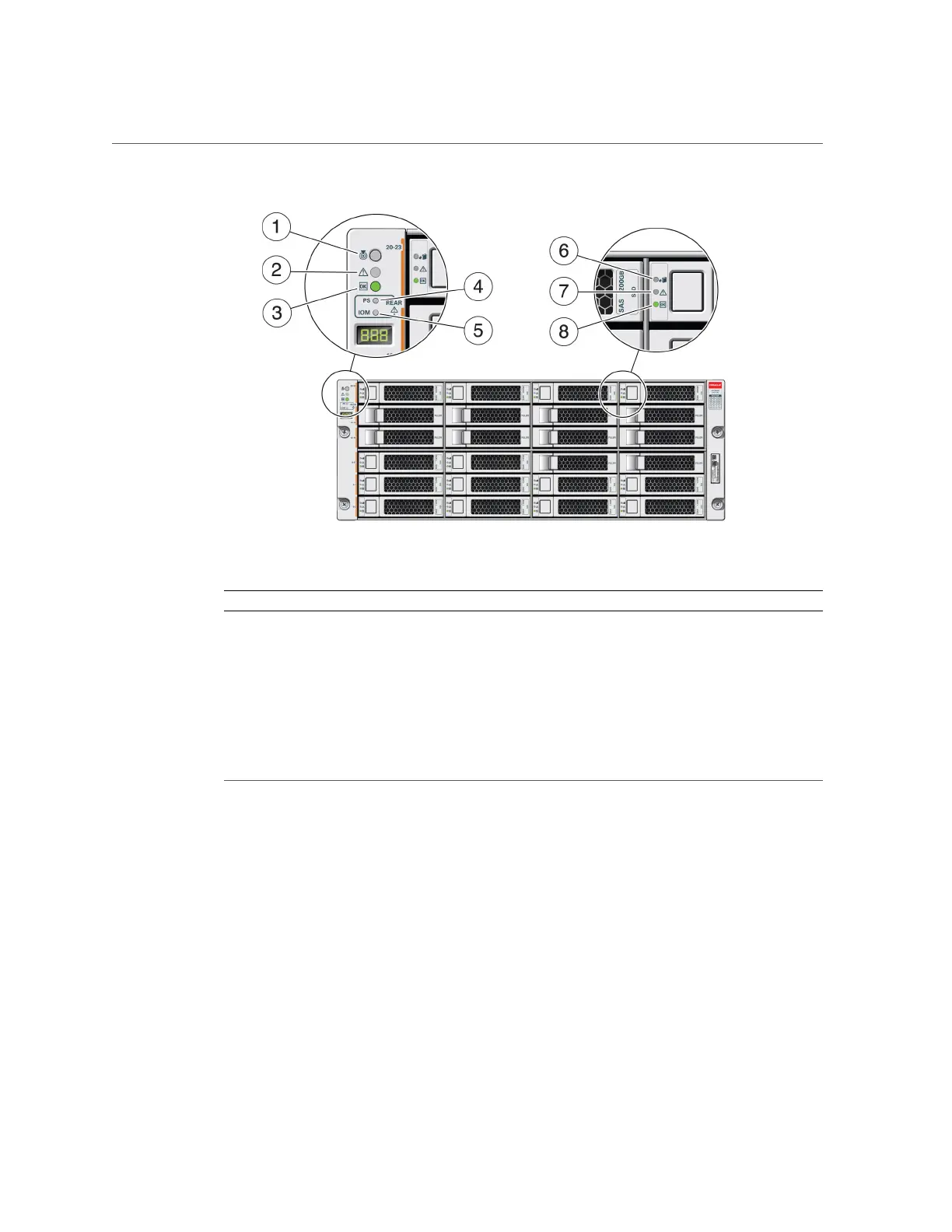

Callout Description
1 Storage shelf Locate indicator
2 Storage shelf fault indicator
3 Storage shelf OK/power indicator
4 Storage shelf power supply fault indicator
5 Storage shelf IO module fault indicator
6 Drive Ready-to-Remove indicator
7 Drive fault indicator
8 Drive power/activity indicator
Oracle Database Appliance X6-2-HA Back Panel
This section describes the back panel features for Oracle Database Appliance X6-2-HA. The
following figure shows the Oracle Database Appliance X6-2-HA.
