Oracle Database Appliance X6-2-HA Front and Back Panels
26 Oracle Database Appliance Owner's Guide • March 2017

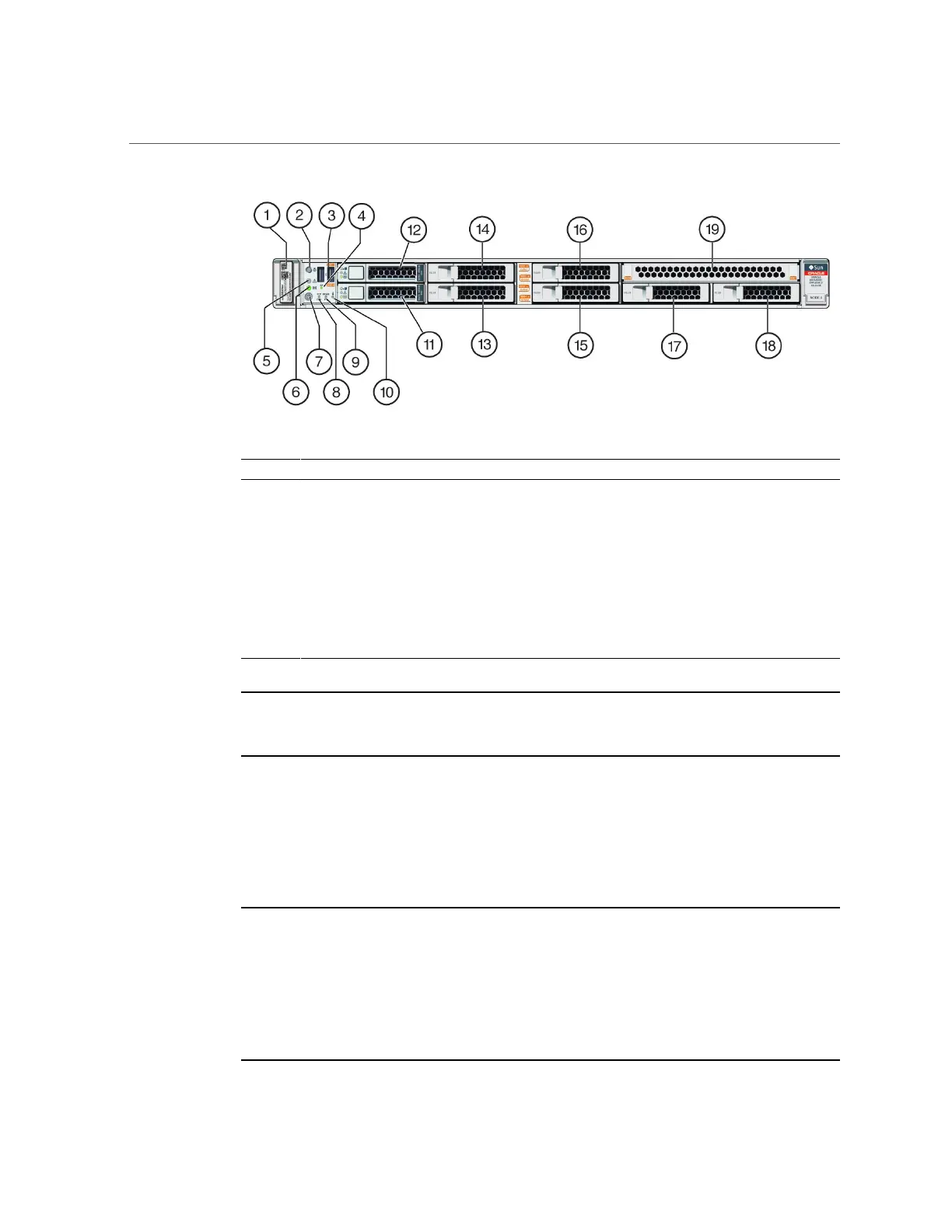

Callout Description Callout Description
1 Product Serial Number (PSN) label and
Radio Frequency Identification (RFID) tag
8 Fan Fault LED: amber
2 Locate LED/button: white 9 Power Supply (PS) Fault LED: amber
3 USB 2.0 connectors (2) 10 System Over Temperature Warning LED:
amber
4 SP OK LED: green 11 HDD 0 (boot drive)
5 Service Required LED: amber 12 HDD 1 (boot drive)
6 Power/OK LED: green 13 - 18 HDD filler
7 Power button 19 DVD filler
Note - When contacting Oracle Support Services, use the Top Level Identifier (TLI) instead of
the serial number. You can find the TLI by looking at the top of either server node or on the top
of the storage shelf. For details, see “Technical Support” on page 53.
Storage Shelf Front Panel Features
The following figure shows the Oracle Database Appliance X6-2-HA storage shelf front
panel features.
Note - In the base configuration storage shelf, disk slots 10-19 are empty (filler panels only).
The system deployment will fail if the placement of the disks in the base configuration is
changed.
You have the option of upgrading the base configuration storage shelf to add an additional
ten 1.6 TB SAS SSDs in slots 10-19. See “Optional Component Installation” on page 58.
Upgrading the base configuration to a fully populated storage shelf will allow you to add a
storage expansion shelf later, if needed.
