Oracle Database Appliance X5-2 Front and Back Panels
34 Oracle Database Appliance Owner's Guide • March 2017

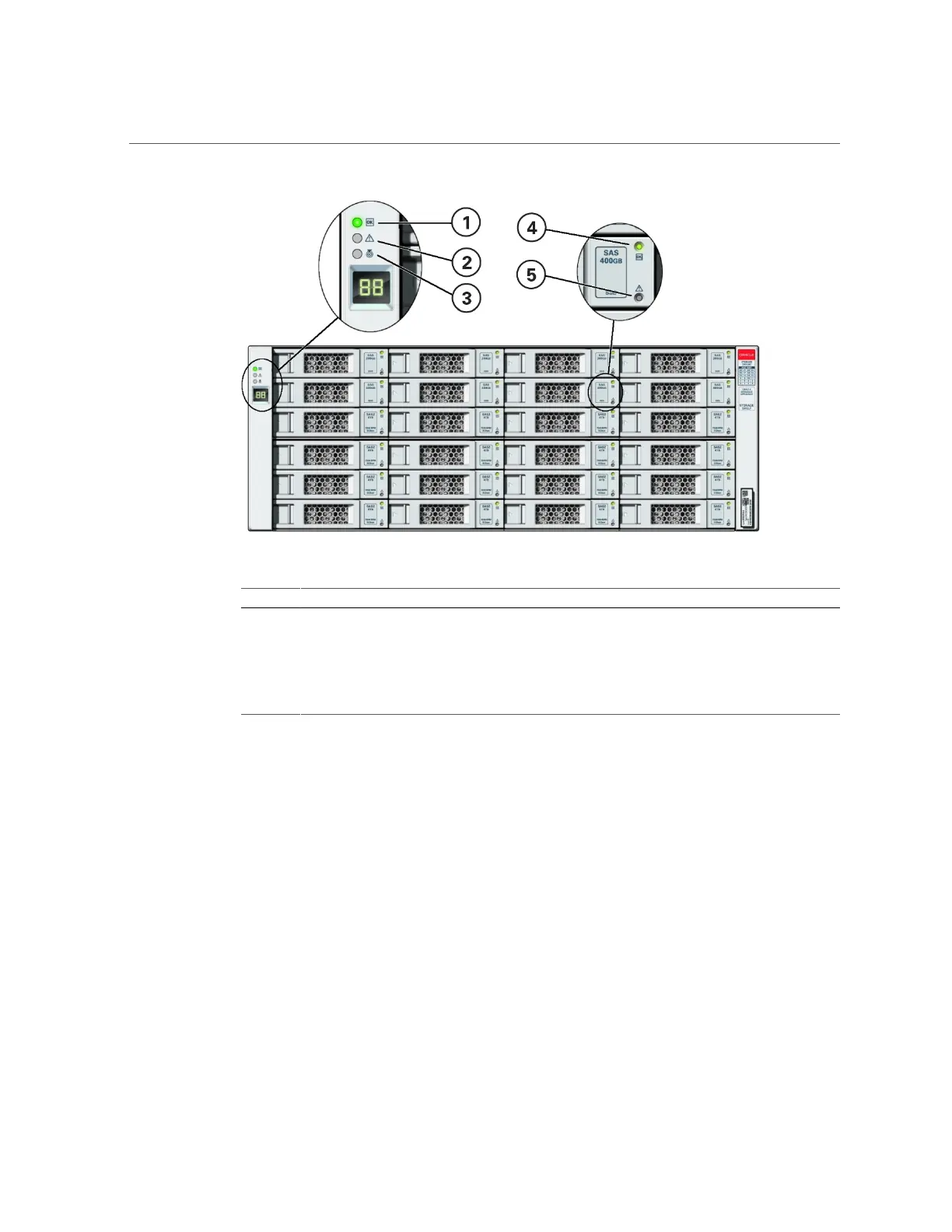

Callout Description
1 Storage shelf OK/power indicator
2 Storage shelf fault indicator
3 Storage shelf Locate indicator
4 Drive power/activity indicator
5 Drive fault indicator
Oracle Database Appliance X5-2 Back Panel
This section describes the back panel features for Oracle Database Appliance X5-2. The
following figure shows the Oracle Database Appliance X5-2.
